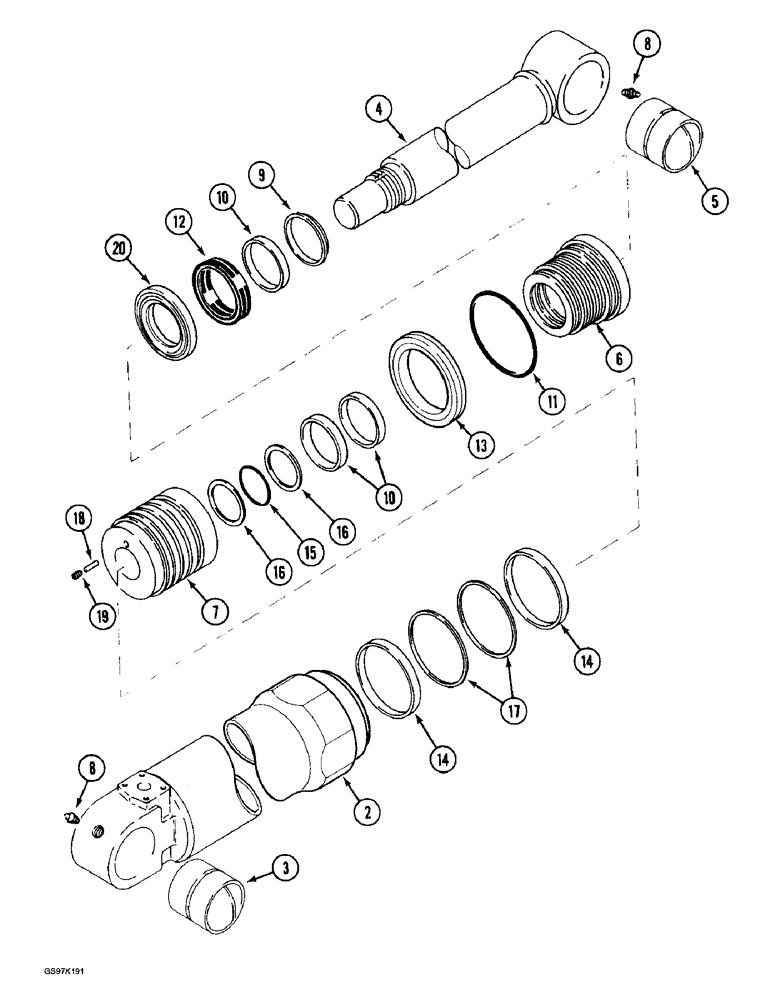

Запчасти Case 888 (8G-26) - TOOL CYLINDER, P.I.N. 15652 AND AFTER (08) - HYDRAULICS

P8546735

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm (Replaces cylinder assembly P7946734)

1шт.

P2052409

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order tube assembly P2052409

1шт.

3

P1528673

BUSHING

- tube

1шт.

P8849467

PISTON ROD

ROD ASSEMBLY - piston, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston, order rod assembly P8849467

1шт.

5

P4028780

BUSHING

- piston rod

1шт.

6

P4429113

CYLINDER END CAP

GLAND - cylinder

1шт.

7

P3829155

PISTON

- cylinder

1шт.

8

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

P6049601

SEAL PACKAGE

KIT - seal, Includes: Ref. 9 - 20

1шт.

9

P1251341

SCRAPER

WIPER - piston rod

1шт.

10

P9046049

BAND

RING - wear

3шт.

11

P1830402

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- gland, large

1шт.

12

P1951210

SEAL

- U-cup, piston rod

1шт.

13

P2030486

SEAL

- gland

1шт.

14

P1845281

BAND

RING - wear

2шт.

15

P2030484

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

O-RING - piston rod

1шт.

16

P9046019

BACK-UP RING

RING - backup, piston rod O-ring

2шт.

17

P1451233

SPECIAL MAT. SEAL

SEAL - piston

2шт.

18

P827736

PIN

- locking

1шт.

19

P1432951

SCREW

- set, pin

1шт.

20

P1951211

SEAL

- gland

1шт.
