Запчасти Case 888 (8G-20) - ARM CYLINDER, P.I.N. 15401 THRU 15651, P.I.N. 106801 AND AFTER (08) - HYDRAULICS

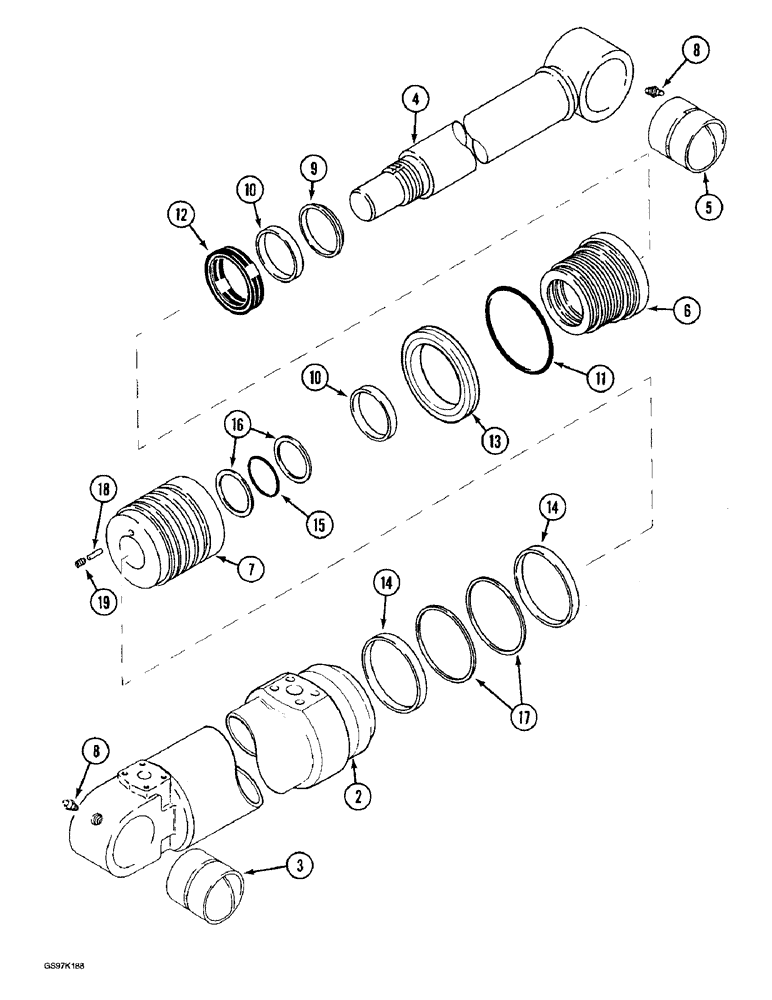

Схема запчастей Case 888 - (8G-20) - ARM CYLINDER, P.I.N. 15401 THRU 15651, P.I.N. 106801 AND AFTER (08) - HYDRAULICS
17
18
15
11
10
5
9
10
12
14
19
14
16
8
7
8
13
6
2
3
4

Артикул

Название

Примечание

Количество

P7946726

CYLINDER ASSY.

CYLINDER ASSEMBLY - arm, no longer available, order cylinder assembly P8546740, parts list Fig. 8G-22

1шт.

P1952490

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order tube assembly P1952490

1шт.

3

P1928655

BUSHING

- tube

1шт.

P8849475

PISTON ROD

ROD ASSEMBLY - piston (Replaces rod assembly P8849405), Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

ROD - piston, order rod assembly P8849475

1шт.

5

P1928655

BUSHING

- piston rod

1шт.

6

P4129188

CYLINDER END CAP

GLAND - cylinder

1шт.

7

P1829957

PISTON

- cylinder, to letter J identification

1шт.

7

P1829981

JACK PISTON

PISTON - cylinder, letter K identification and after

1шт.

8

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

2шт.

P5649655

KIT

- seal, no longer available, order kit P6049604 on Fig. 8G-22, Includes: Ref. 9 - 19

1шт.

9

P2046009

WIPER SEAL

WIPER - piston rod

1шт.

10

P1845280

BAND

RING - wear

2шт.

11

P130440

O-RING

- gland, large

1шт.

12

P1751217

SEAL

- U-cup, piston rod

1шт.

13

P2030487

SEAL

- gland

1шт.

14

P1845282

BAND

RING - wear

2шт.

15

P2030485

O-RING

- piston rod

1шт.

16

P9046020

BACK-UP RING

RING - backup, piston rod O-ring

2шт.

17

P446048

SPECIAL MAT. SEAL

SEAL - piston

2шт.

18

P827736

PIN

- locking

1шт.

19

P1432952

SCREW

- set, locking pin

1шт.

Выбрано товаров: 23
