Запчасти Case 888 (8G-18) - BOOM CYLINDER, P.I.N. 15652 AND AFTER (08) - HYDRAULICS

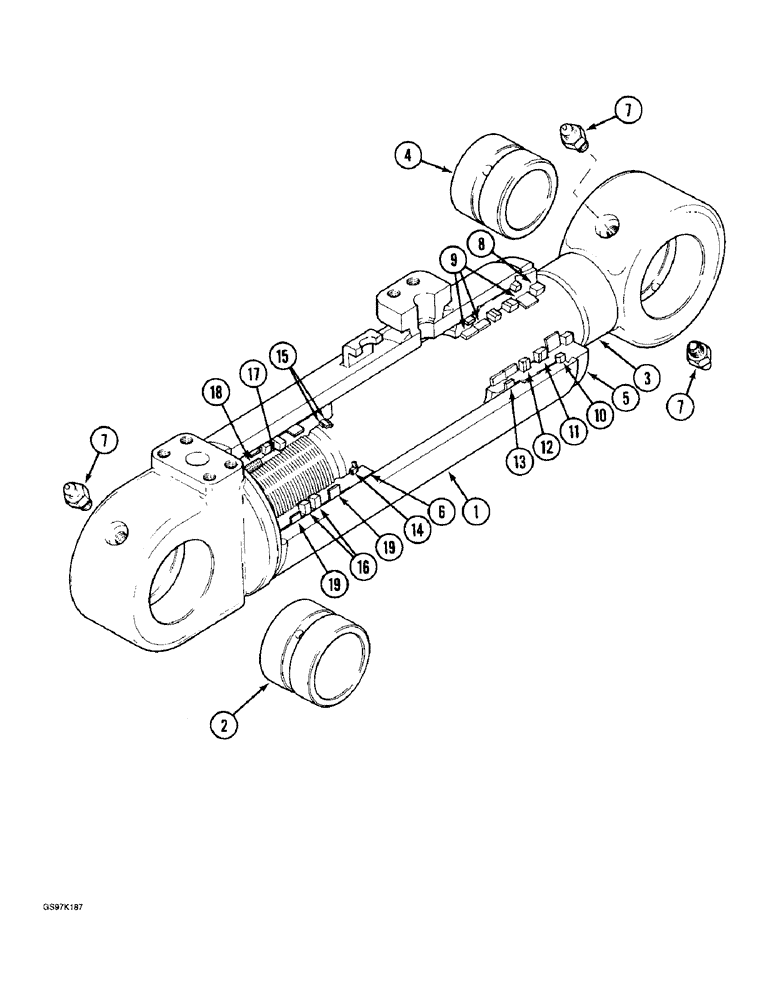

Схема запчастей Case 888 - (8G-18) - BOOM CYLINDER, P.I.N. 15652 AND AFTER (08) - HYDRAULICS
9
8
14
13
11
2
6
18
12
19
10
7
1
3
7
7
17
19
16
5
4
15

Артикул

Название

Примечание

Количество

P8546737

CYLINDER ASSY.

CYLINDER ASSEMBLY - boom (Replaces cylinder assembly P8346721), Includes: Ref. 1 - 19

1шт.

P2052431

JACK BODY

TUBE ASSEMBLY - cylinder, Includes: Ref. 1 - 2

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order tube assembly P2052431

1шт.

2

P1528673

BUSHING

- tube

1шт.

P8849461

PISTON ROD

ROD ASSEMBLY - piston (Replaces rod assembly P8849403), Includes: Ref. 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

ROD - piston, order rod assembly P8849461

1шт.

4

P1528673

BUSHING

- piston rod

1шт.

5

P4429114

CYLINDER END CAP

GLAND - cylinder

1шт.

6

P1829980

JACK PISTON

PISTON - cylinder

1шт.

7

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, M10 x 1

3шт.

P6049602

SEAL PACKAGE

KIT - seal, Includes: Ref. 8 - 19

1шт.

8

P1251341

SCRAPER

WIPER - piston rod

1шт.

9

P9046049

BAND

RING - wear

3шт.

10

P730449

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

- gland, large

1шт.

11

P1951210

SEAL

- U-cup, piston rod

1шт.

11

P1951211

SEAL

- gland

1шт.

13

P2030486

SEAL

- gland

1шт.

14

P2030484

SEAL,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

O-RING - piston rod

1шт.

15

P9046019

BACK-UP RING

RING - backup, piston rod O-ring

2шт.

16

P1451233

SPECIAL MAT. SEAL

SEAL - piston

2шт.

17

P827736

PIN

- locking

1шт.

18

P1432951

SCREW

- set, locking pin

1шт.

19

P1845281

BAND

RING - wear

2шт.

Выбрано товаров: 23
