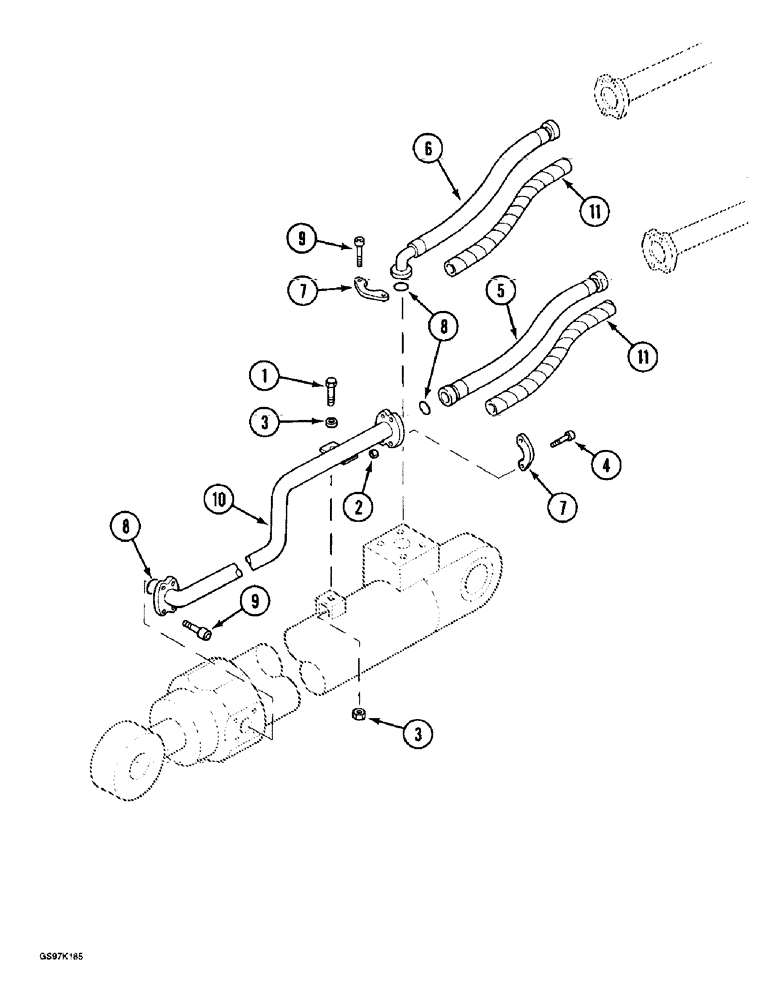

Запчасти Case 888 (8G-14) - TOOL CYLINDER CIRCUIT, TUBES AT ARM, P.I.N. 15643 AND AFTER (08) - HYDRAULICS

1

P933839

SCREW

BOLT - hex, 10 mm x 35 mm, full thread

1шт.

2

86500689

NUT,M10 x 1.5, Cl 10

4шт.

3

P3528795

WASHER

SPACER - bolt, 7 mm thick

1шт.

4

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

4шт.

5

P7631915

HOSE

- to rod end of arm cylinder, 1800 mm (70-7/8 inch) long

1шт.

6

P5931999

HOSE

- to base end of arm cylinder, 1800 mm (70-7/8 inch) long

1шт.

7

P4024266

CLAMP

FLANGE - split, hose

4шт.

8

P1130483

O-RING

- tube and hose flange

2шт.

9

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

8шт.

10

P8747628

PIPE

TUBE - to rod end point at cylinder

1шт.

11

REF

INSTRUCTION

PROTECTOR - hose, 1680 mm (66-9/64 inch) long, cut from bulk stock P1103671 below

2шт.

P1103671

PROTECTOR

- bulk, sold by the meter

1шт.
