Запчасти Case 888 (8G-06) - ARM AND TOOL CYLINDER CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS

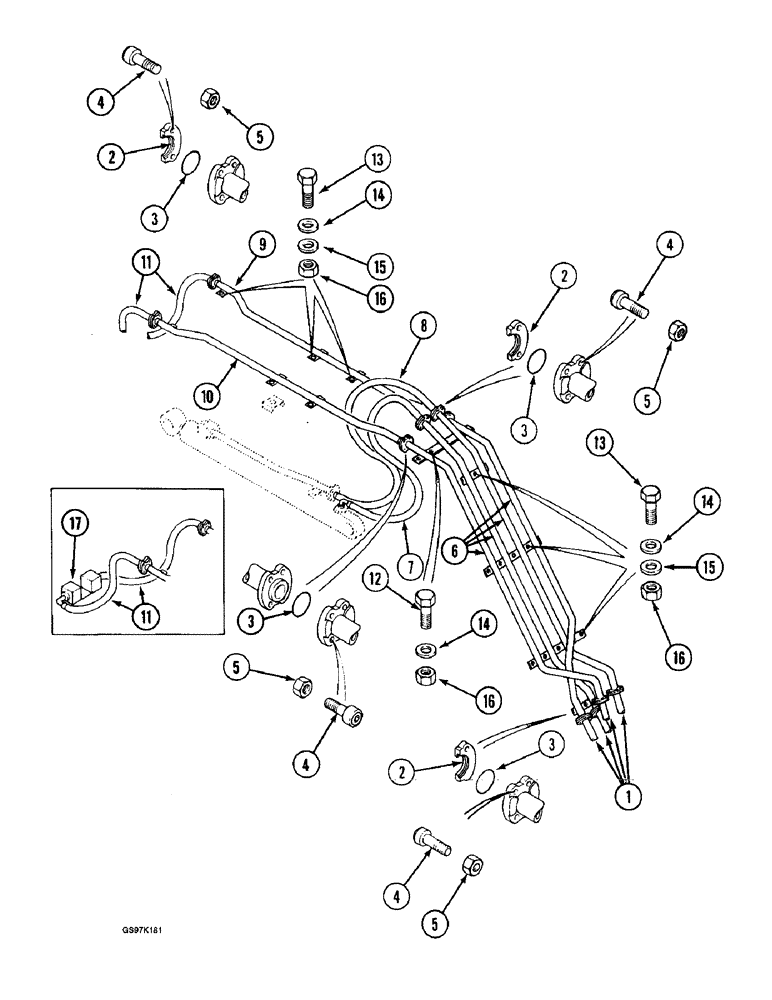

Схема запчастей Case 888 - (8G-06) - ARM AND TOOL CYLINDER CIRCUIT, TUBES AT BOOM (08) - HYDRAULICS
16
3
4
17
16
2
3
4
9
5
4
7
6
5
3
15
11
11
10
14
13
3
13
1
4
14
5
15
16
8
2
12
14
2
5

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HOSE - from arm and tool sections of attachment control valve, see Figure 8C-2 or 8C-4

1шт.

2

P4024266

CLAMP

FLANGE - split, hose

16шт.

3

P1130483

O-RING

- hose flange

8шт.

4

P32937

SCREW

BOLT - hex socket, 10 mm x 50 mm

40шт.

5

86500689

NUT,M10 x 1.5, Cl 10

40шт.

6

P3950185

PIPE

TUBE - to arm and tool cylinders

1шт.

7

P5431935

HOSE

- to base end of arm cylinder, 800 mm (31-1/2 inch) long

1шт.

8

P5931952

HOSE

- to rod end of arm cylinder, 1000 mm (39-3/8 inch) long

1шт.

9

P3450110

PIPE

TUBE - right-hand side of arm, to tool cylinder

1шт.

10

P3450109

PIPE

TUBE - left-hand side of arm, to tool cylinder

1шт.

11

P5431998

HOSE

- to tool attachment block, 1250 mm (49-3/16 inch) long, if used

2шт.

11

REF

INSTRUCTION

HOSE - to tool attachment block, if used

2шт.

12

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

2шт.

13

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

8шт.

14

P3528795

WASHER

SPACER - bolt, 7 mm thick

10шт.

15

P1245227

WASHER

- flat, 10 mm

8шт.

16

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

10шт.

17

REF

INSTRUCTION

BLOCK - manifold, to tool cylinder, see Figure 8G-12

1шт.

Выбрано товаров: 18
