Запчасти Case 888 (8F-16) - TURNTABLE LEVELER CONTROL VALVE, P.I.N. 106801 AND AFTER (08) - HYDRAULICS

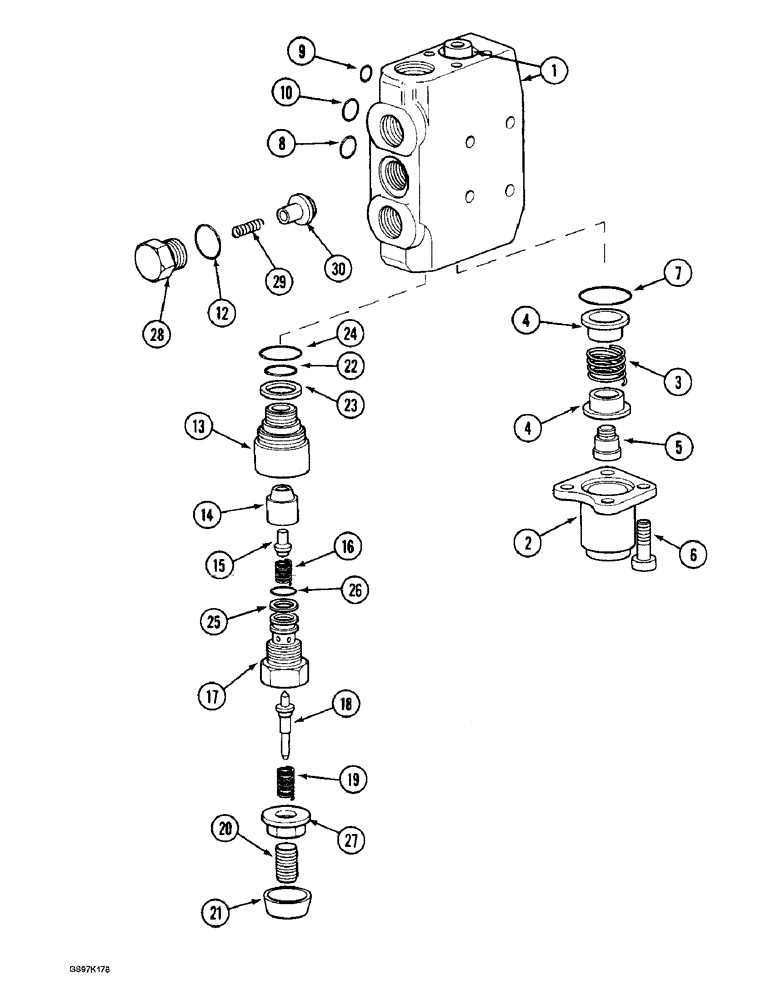

Схема запчастей Case 888 - (8F-16) - TURNTABLE LEVELER CONTROL VALVE, P.I.N. 106801 AND AFTER (08) - HYDRAULICS
22
1
7
4
24
12
21
10
4
28
2
27
9
23
13
15
26
20
29
17
3
30
25
19
18
8
5
14
6
16

Артикул

Название

Примечание

Количество

P3843632

ELEMENT

VALVE ASSEMBLY - control, leveler, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve, order valve assembly P3843632

1шт.

P3843633

SPARE PART SET

VALVE ASSEMBLY - control, leveler, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - spool, order valve assembly P3843633

2шт.

3

NSS

NOT SOLD SEPARAT

SPRING - spool, order valve assembly P3843633

2шт.

4

NSS

NOT SOLD SEPARAT

SEAT - spring, order valve assembly P3843633

4шт.

5

NSS

NOT SOLD SEPARAT

BOLT - special, spool end, order valve assembly P3843633

2шт.

6

NSS

NOT SOLD SEPARAT

BOLT - hex socket, spool cover, order valve assembly P3843633

8шт.

7

NSS

NOT SOLD SEPARAT

O-RING - cover seal, order kit P5949603

2шт.

Part of seal repair kit P/N P5949603.

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - section seal, order kit P5949603

1шт.

Part of seal repair kit P/N P5949603.

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - section seal, order kit P5949603

1шт.

Part of seal repair kit P/N P5949603.

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - section seal, order kit P5949603

1шт.

Part of seal repair kit P/N P5949603.

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - load check seal, order kit P5949603

1шт.

Part of seal repair kit P/N P5949603.

1шт.

P3143630

CARTRIDGE

VALVE ASSEMBLY - relief valve, Includes: Ref. 13 - 37

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - relief valve, order valve assembly P3143630

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON - relief valve, order valve assembly P3143630

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - relief valve, order valve assembly P3143630

1шт.

16

P1038221

SPRING

- poppet

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - plunger, order valve assembly P3143630

1шт.

18

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve, order valve assembly P3143630

1шт.

19

P1038223

SPRING

- plunger

1шт.

20

NSS

NOT SOLD SEPARAT

SCREW - adjusting, relief valve, order valve assembly P3143630

1шт.

21

NSS

NOT SOLD SEPARAT

COVER - adjusting screw, order valve assembly P3143630

1шт.

P5449633

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 22 - 27

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - housing, small, order kit P5449633

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, order kit P5449633

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - housing, large, order kit P5449633

1шт.

25

NSS

NOT SOLD SEPARAT

RING - backup, body, order kit P5449633

1шт.

26

NSS

NOT SOLD SEPARAT

O-RING - body, order kit P5449633

1шт.

27

NSS

NOT SOLD SEPARAT

NUT - lock, adjusting screw, order kit P5449633

1шт.

P3743368

VALVE POPPET

VALVE ASSEMBLY - load check, control valve for options, Includes: Ref. 28 - 30

1шт.

28

P3037473

PLUG

- load check valve

1шт.

29

P38283

SPRING

- poppet

1шт.

30

P2643624

VALVE POPPET

POPPET - load check

1шт.

P5949603

SEAL PACKAGE

KIT repair, seals, Includes Ref. 7 -10 and 12

1шт.

Выбрано товаров: 40
