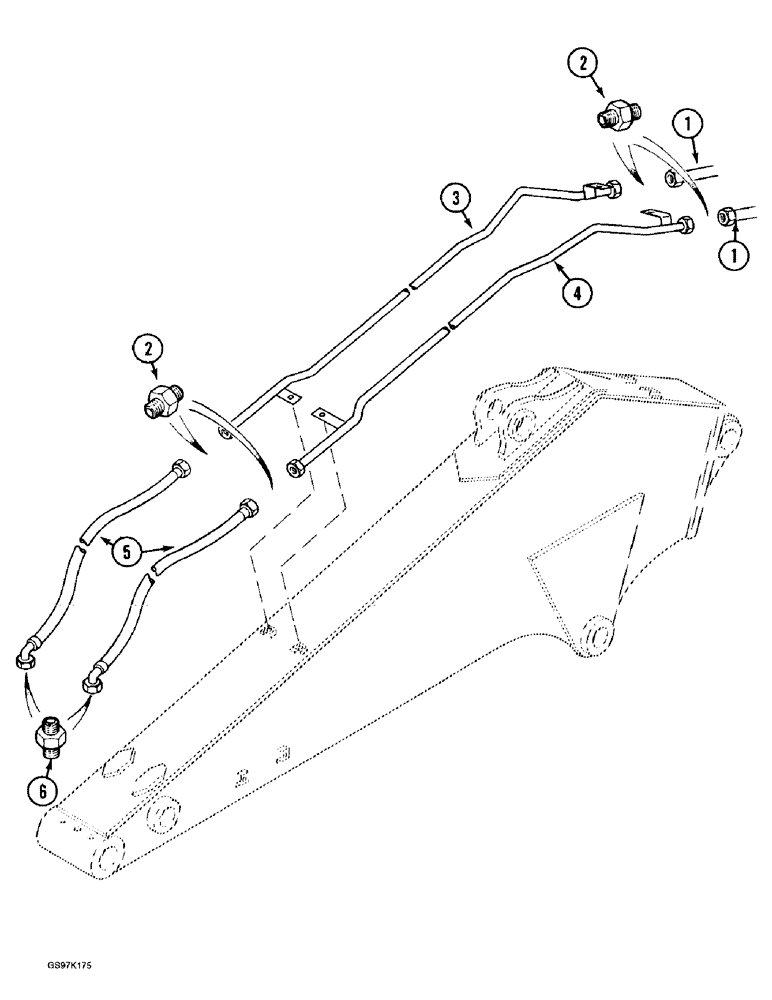

Запчасти Case 888 (8F-10) - HYDRAULIC CIRCUIT FOR OPTIONS, 2.1 METER AND 2.7 METER ARMS, TUBES AT ARM, FOR WRIST-O-TWIST/ROTATOR (08) - HYDRAULICS

1

REF

INSTRUCTION

HOSE - from option tubes at boom, see Fig. 8F-08

2шт.

2

P3237537

UNION

ADAPTER - straight

4шт.

3

P3750126

PIPE

TUBE - for options, right-hand side of 2.1 meter arm

1шт.

3

P3750124

PIPE

TUBE - for options, right-hand side of 2.7 meter arm

1шт.

4

P3750125

PIPE

TUBE - for options, left-hand side of 2.1 meter arm

1шт.

4

P3750123

PIPE

TUBE - for options, left-hand side of 2.7 meter arm

1шт.

5

P3731944

HOSE

- to optional attachment, 2502 mm (98-1/2 inch) long

2шт.

6

P4037518

UNION

ADAPTER - straight

2шт.
