Запчасти Case 888 (8E-08) - HYDRAULIC CONTROL CIRCUIT, TO HYDRAULIC HAMMER CONTROL VALVE (08) - HYDRAULICS

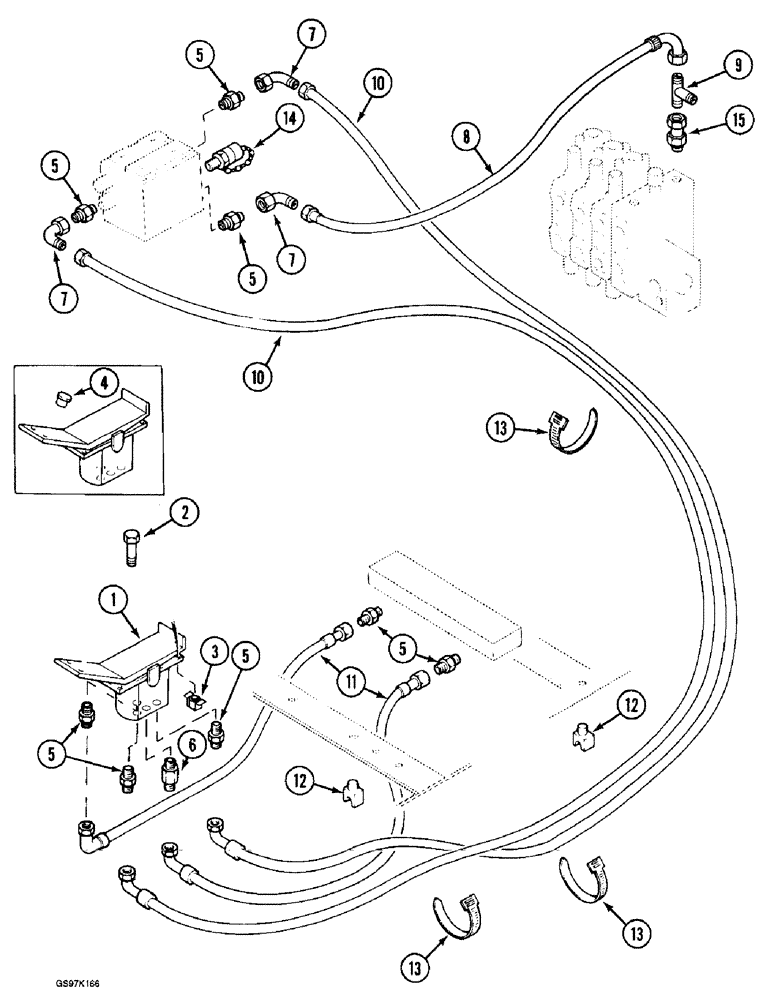

Схема запчастей Case 888 - (8E-08) - HYDRAULIC CONTROL CIRCUIT, TO HYDRAULIC HAMMER CONTROL VALVE (08) - HYDRAULICS
13
7
3
12
13
1
11
6
13
7
5
10
5
10
5
7
12
2
5
14
15
5
8
5
4
9

Артикул

Название

Примечание

Количество

1

P4343360

BLOCK ASSY.

VALVE ASSEMBLY - foot control, parts list Fig. 8D-14

1шт.

2

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

4шт.

3

P1334571

NUT

- hex, cage type, if used

4шт.

4

P3037430

PLASTIC PLUG

PLUG - plastic, foot pedal

2шт.

5

P3237530

UNION

ADAPTER ASSEMBLY - straight

8шт.

P7046042

SEAL

- adapter

1шт.

6

P3237581

UNION

ADAPTER ASSEMBLY - straight

1шт.

P7046042

SEAL

- adapter

1шт.

7

P1737018

ANGLE

ELBOW - 90 degree

3шт.

8

P5431940

HOSE

- control circuit, 1250 mm (49-3/16 inch) long

1шт.

9

P2643351

BLOCK ASSY.

TEE - power sensing tubes

1шт.

10

P6631978

HOSE

- control circuit, 2500 mm (98-7/16 inch) long

2шт.

11

P5431978

HOSE

- 850 mm (33-1/2 inch) long

2шт.

12

P2036942

SUPPORT

RETAINER - control circuit hoses

1шт.

13

P51946

CLAMP

STRAP - tie, circuit hoses, 257 mm (10-1/8 inch) long

1шт.

14

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect

1шт.

15

P3237554

FITTING

ADAPTER ASSEMBLY - straight

1шт.

P7046042

SEAL

- adapter

1шт.

Выбрано товаров: 19
