Запчасти Case 888 (8D-18) - COUNTER ROTATION VALVE, P.I.N. 106801 AND AFTER (08) - HYDRAULICS

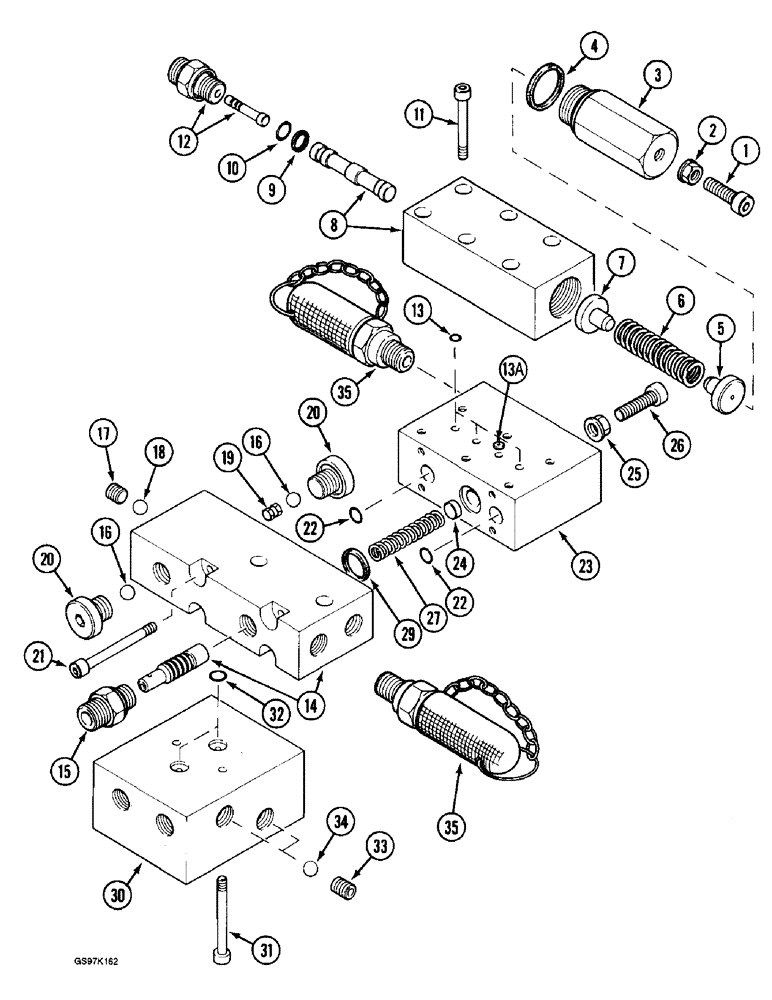

Схема запчастей Case 888 - (8D-18) - COUNTER ROTATION VALVE, P.I.N. 106801 AND AFTER (08) - HYDRAULICS
19
33
1
23
32
22
31
10
11
21
9
7
35
27
13
3
2
16
29
20
25
35
17
8
6
26
5
24
12
16
20
18
4
15
34
13a
22
30
14

Артикул

Название

Примечание

Количество

P4743396

VALVE

ASSEMBLY - counter rotation

1шт.

P4743384

SELECTOR

VALVE ASSEMBLY - selector, Includes: Ref. 1 - 13A

1шт.

1

P0732978Q

SCREW

1шт.

2

P2434541

NUT

- adjusting screw

1шт.

3

P1030033

CAP

BODY - selector valve

1шт.

4

P1145268

SEAL

O-RING - body (Replaces O-ring P2230417)

1шт.

5

P6027871

TAPPET

SEAT - spring

1шт.

6

P2838108

SPRING

- selector

1шт.

7

P6427831

TAPPET

SEAT - spring

1шт.

8

P4743386

BODY

BLOCK ASSEMBLY - body and spool, Includes: Ref. 9 and 10

1шт.

9

P1245260

BACK-UP RING

RING - backup, seal

1шт.

10

P1230429

O-RING

- spool

1шт.

11

P232916

SCREW

BOLT - hex socket, 5 mm x 30 mm

6шт.

12

P4743368

SET OF PARTS

PLUG ASSEMBLY - selector

1шт.

P7046042

SEAL

- plug

1шт.

13

P1230429

O-RING

-, Serial Range: block-body

4шт.

13a

P3545031

HOLE PLUG BUTTON

RESTRICTOR - pressure line

1шт.

P4743387

PRESSURE LIMITER

VALVE ASSEMBLY - counter rotation, Includes: Ref. 14 - 35

1шт.

14

P4743388

SET OF PARTS

KIT - repair, Includes: Ref. , Includes: Ref. 15 - 20

1шт.

15

P3237530

UNION

ADAPTER ASSEMBLY - straight

1шт.

P7046042

SEAL

- adapter

1шт.

16

P31043

BALL

- valve

2шт.

17

P32813

SCREW

- body

1шт.

18

P31002

BALL

- valve

1шт.

19

P6427832

TAPPET

PUSHER - ball

1шт.

20

P2537447

PLUG

ASSEMBLY - at body

2шт.

P7046042

SEAL

- plug

1шт.

21

P332907

SCREW

BOLT - hex socket, 5 mm x 50 mm

4шт.

22

P1230429

O-RING

-, Serial Range: body-body

2шт.

23

P4743389

BODY

- valve

1шт.

24

P6427833

TAPPET

PUSHER - spring

1шт.

25

P2434541

NUT

- adjusting screw

1шт.

26

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

1шт.

27

P1038265

SPRING

- valve

1шт.

29

P1130462

O-RING

- body

1шт.

30

P4743385

ELEMENT

BLOCK ASSEMBLY - junction, Includes: Ref. 31 - 34

1шт.

31

P432913

SCREW

BOLT - hex socket, 6 mm x 40 mm

2шт.

32

P1230429

O-RING

- junction, Serial Range: block-body

2шт.

33

P4743366

SEAT

SCREW - seat

2шт.

34

P31018

BALL

- junction block

2шт.

35

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- disconnect

1шт.

Выбрано товаров: 42
