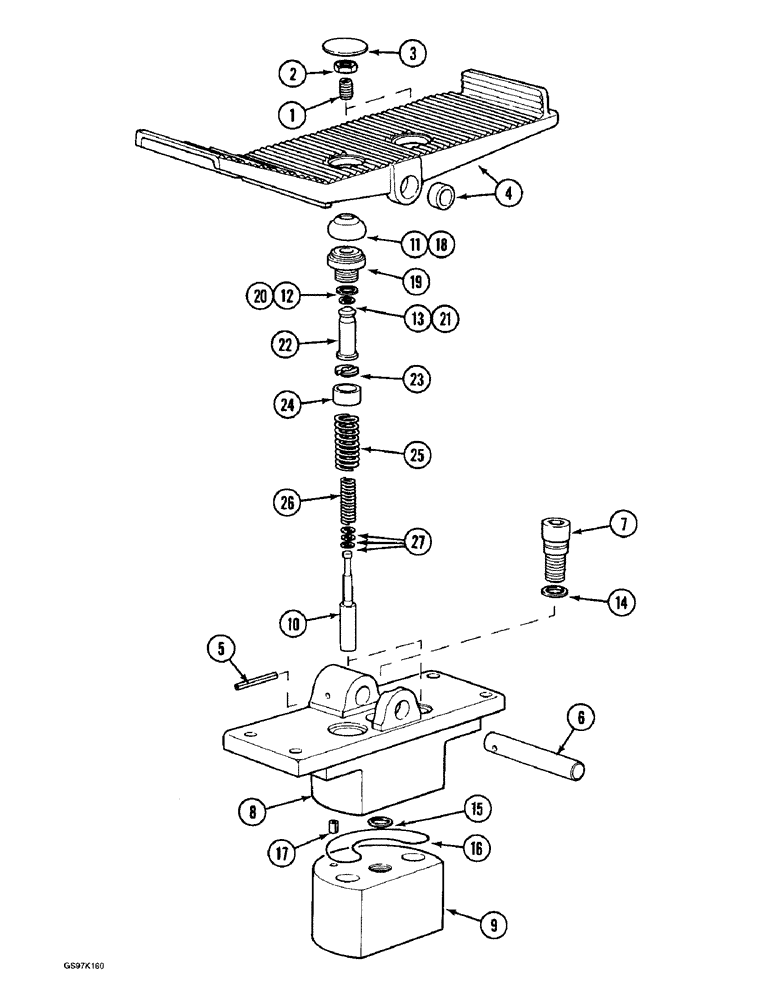

Запчасти Case 888 (8D-14) - FOOT CONTROL VALVE (08) - HYDRAULICS

P4343360

BLOCK ASSY.

VALVE ASSEMBLY - foot control

2-3шт.

P5242742

PEDAL

ASSEMBLY - foot, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SCREW - adjustment, order pedal assembly P5242742

2шт.

2

NSS

NOT SOLD SEPARAT

NUT - lock, adjustment screw, order pedal assembly P5242742

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG - pedal, at adjusting screw, order pedal assembly P5242742

2шт.

4

NSS

NOT SOLD SEPARAT

PEDAL - foot control, includes bushings, order pedal assembly P5242742

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - roll, pedal shaft, order pedal assembly P5242742

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - pedal, order pedal assembly P5242742

1шт.

7

NSS

NOT SOLD SEPARAT

BOLT - special, upper valve body to port block, order valve assembly P4343360

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - valve, upper, order valve assembly P4343360

1шт.

9

NSS

NOT SOLD SEPARAT

BLOCK - port, valve, order valve assembly P4343360

1шт.

10

NSS

NOT SOLD SEPARAT

SPOOL - regulating, order valve assembly P4343360

2шт.

P5449619

SEAL PACKAGE

KIT - seal, guide, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BOOT - rubber, cartridge guide, order kit P5449619

2шт.

12

NSS

NOT SOLD SEPARAT

O-RING - guide, large, order kit P5449619

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING - guide, small, order kit P5449619

2шт.

P5449620

KIT

- seal, valve body, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - valve body screw, order kit P5449620

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - valve body, small, order kit P5449620

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - valve body, large, order kit P5449620

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - roll, port block, order kit P5449620

2шт.

P5449621

KIT

- cartridge and guide, Includes: Ref. 18 - 22

2шт.

18

NSS

NOT SOLD SEPARAT

BOOT - rubber, cartridge guide, order kit P5449621

1шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - cartridge, order kit P5449621

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - guide, large, order kit P5449621

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - guide, small, order kit P5449621

1шт.

22

NSS

NOT SOLD SEPARAT

CARTRIDGE - control, order kit P5449621

1шт.

P5449697

KIT

- cartridge spring, Includes: Ref. 23 - 27

2шт.

23

NSS

NOT SOLD SEPARAT

RETAINER - spring stop, order kit P5449697

1шт.

24

NSS

NOT SOLD SEPARAT

STOP - spring, order kit P5449697

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING - cartridge, outer, order kit P5449697

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - cartridge, inner, order kit P5449697

1шт.

27

NSS

NOT SOLD SEPARAT

KIT - shim, spring, order kit P5449697

1шт.
