(8D-12) - HAND CONTROL VALVE, P.I.N. 15483 AND AFTER, P.I.N. 106801 AND AFTER

Запчасти Case 888 (8D-12) - HAND CONTROL VALVE, P.I.N. 15483 AND AFTER, P.I.N. 106801 AND AFTER (08) - HYDRAULICS

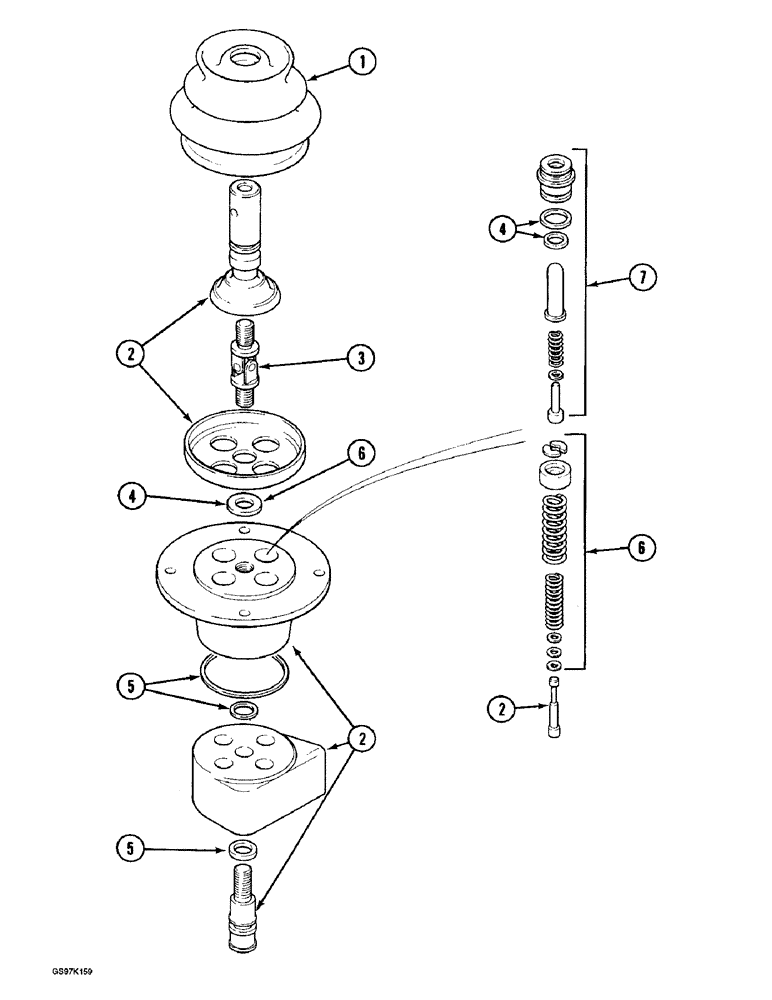

Схема запчастей Case 888 - (8D-12) - HAND CONTROL VALVE, P.I.N. 15483 AND AFTER, P.I.N. 106801 AND AFTER (08) - HYDRAULICS
5
1
5
6
7
2
4
2
3
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P4743324

BLOCK ASSY.

VALVE ASSEMBLY - hand control, Includes: Ref. 1 - 7

2шт.

1

P5446210

BELLOWS

BOOT - protective, rubber

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER - control, order valve assembly P4743324

1шт.

3

P5242741

COUPLING

JOINT - universal, control lever

1шт.

4

P3749651

SEAL PACKAGE

KIT - seal guide

1шт.

5

P3749617

KIT

- seal, valve body

1шт.

6

P5949627

KIT

- cartridge and guide

4шт.

7

P5949647

KIT

- cartridge spring

4шт.
