(8D-06) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND CONTROL VALVES, P.I.N. 15401 THRU 15482

Запчасти Case 888 (8D-06) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND CONTROL VALVES, P.I.N. 15401 THRU 15482 (08) - HYDRAULICS

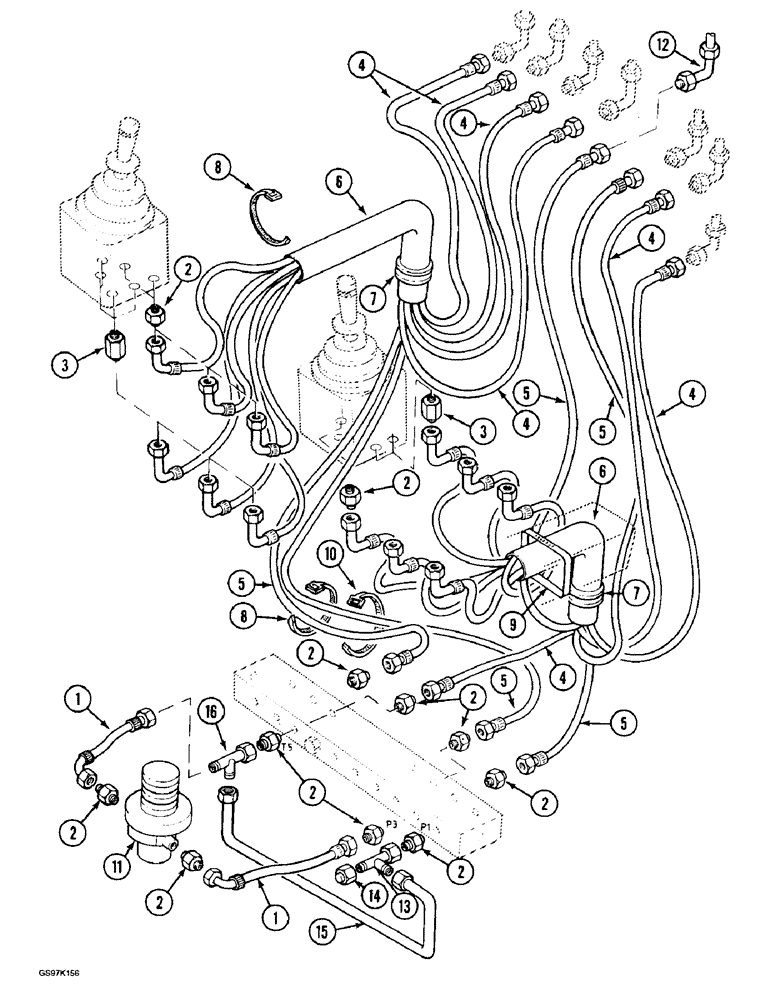

Схема запчастей Case 888 - (8D-06) - HYDRAULIC CONTROL CIRCUIT, MANIFOLD TO HAND CONTROL VALVES, P.I.N. 15401 THRU 15482 (08) - HYDRAULICS
6
5
4
11
2
2
4
15
4
2
2
16
2
7
8
5
8
2
6
5
5
4
2
1
14
2
1
12
5
4
9
3
2
10
13
7
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

P5431952

HOSE

- manifold to pump, 362 mm (14-1/4 inch) long

2шт.

2

P3237530

UNION

ADAPTER ASSEMBLY - straight

15шт.

P7046042

SEAL

- adapter

1шт.

3

P3237581

UNION

ADAPTER ASSEMBLY - straight

6шт.

P7046042

SEAL

- adapter

1шт.

4

P5431954

HOSE

- control circuit, 1400 mm (55-1/8 inch) long

7шт.

5

P5431955

HOSE

- control circuit, 1600 mm (63 inch) long

5шт.

6

P4931937

LOOM

SLEEVE - hose protector

2шт.

7

P41478

GROMMET

- protector sleeve

2шт.

8

P51946

CLAMP

STRAP - tie, hose, 257 mm (10-1/8 inch) long

1шт.

9

P136922

CLAMP

STRAP - tie, hose, 350 mm (13-3/4 inch) long

1шт.

10

P336923

CLAMP

STRAP - tie, hose, 117 mm (4-5/8 inch) long

1шт.

11

P2843549

PUMP, HYDRAULIC

PUMP - foot, control circuit, see Fig. 9D-04

1шт.

12

REF

INSTRUCTION

ELBOW - 90 degree, see Figs. 8C-02 and 8C-14 for control circuit to attachment and swing control valves

8шт.

13

P1237248

TEE

- street, with orifice

1шт.

14

P2537406

BLANK-OFF PLUG

PLUG - tee

1шт.

15

P6549026

PIPE

- tee to return line

1шт.

16

P937295

TEE

- street

1шт.
