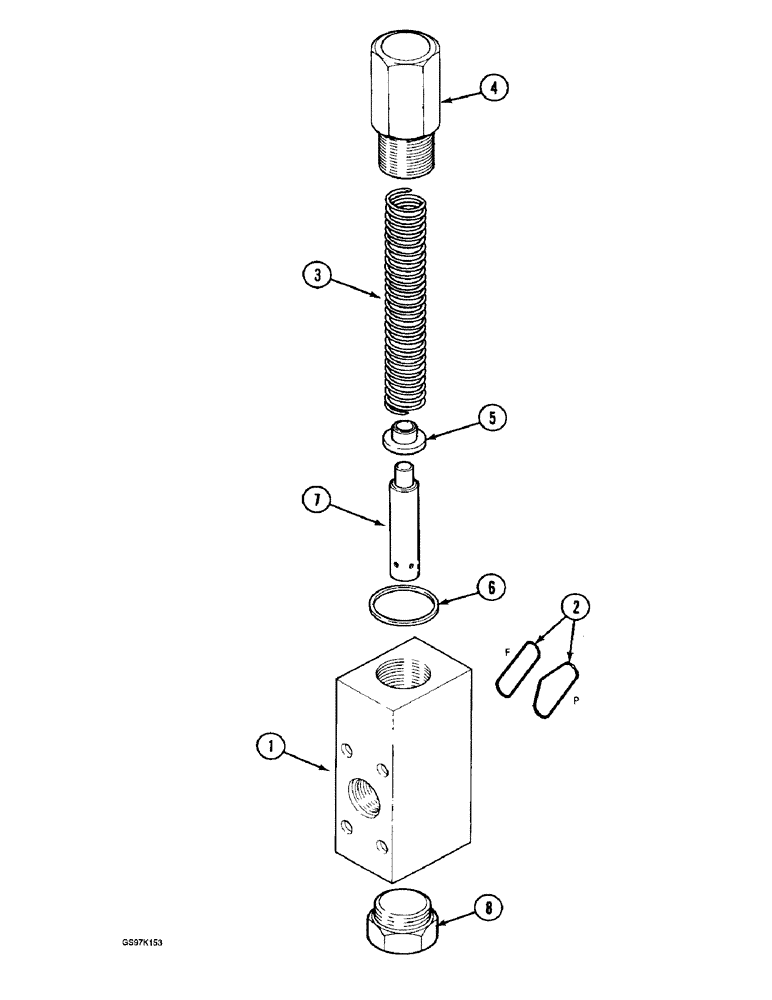

Запчасти Case 888 (8C-56) - PRESSURE REGULATING VALVE (08) - HYDRAULICS

P4743328

SHIN

VALVE ASSEMBLY - pressure regulating, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly

1шт.

2

P2930482

SEAL

O-RING - body

2шт.

3

P1038267

SPRING

- regulator

1шт.

4

P3240427

CAP - regulator spring

1шт.

5

P3628836

GUIDE

SEAT - spool

1шт.

6

P5746063

SEAL

- cap

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL- valve, order valve assembly

1шт.

8

P2537419

PLUG

ASSEMBLY - valve

1шт.

P1145268

SEAL

- plug

1шт.
