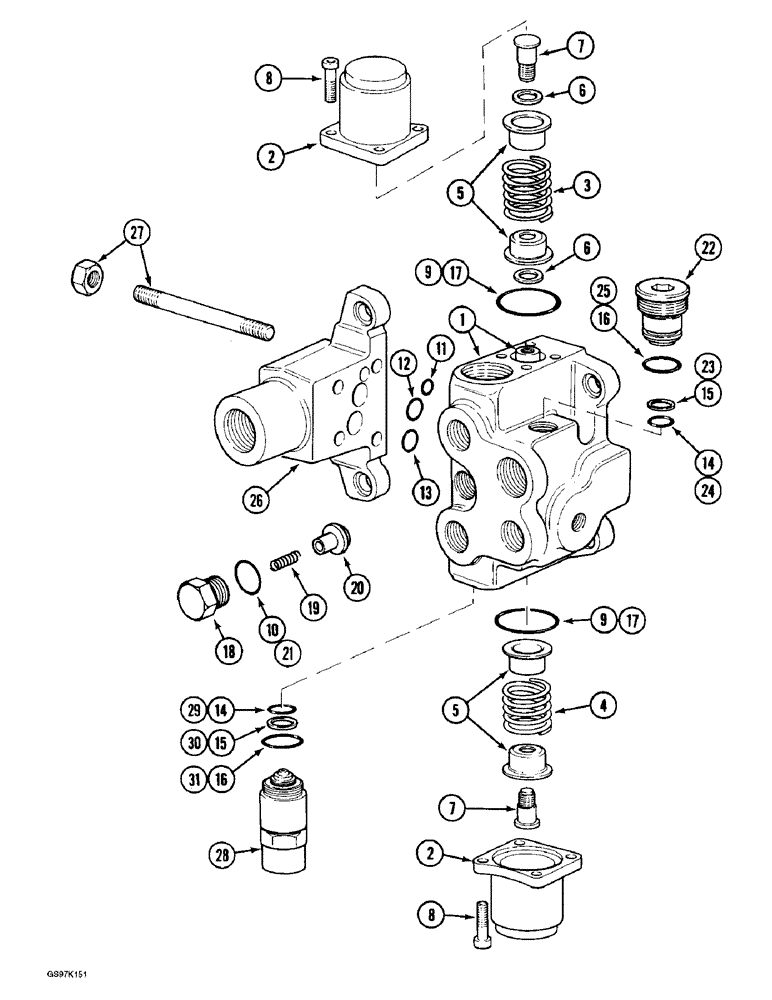

Запчасти Case 888 (8C-50) - SWING CONTROL VALVE, P.I.N. 15474 AND AFTER (08) - HYDRAULICS

P3843636

DISTRIBUTOR

VALVE ASSEMBLY - swing control, no longer available, order valve assembly P3843614, parts list Fig. 8-52, Includes: Ref. 1 - 25

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, swing control, order valve assembly

1шт.

P5949629

SPARE PART SET

KIT - valve setting, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - valve spool, order kit P5949629

2шт.

3

NSS

NOT SOLD SEPARAT

SPRING - spool, six spires, order kit P5949629

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - spool, five spires, order kit P5949629

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT - spring, order kit P5949629

4шт.

6

NSS

NOT SOLD SEPARAT

WASHER - bolt, order kit P5949629

2шт.

7

NSS

NOT SOLD SEPARAT

BOLT - spool, order kit P5949629

2шт.

8

NSS

NOT SOLD SEPARAT

BOLT - hex socket, cap, order kit P5949629

8шт.

9

NSS

NOT SOLD SEPARAT

O-RING - spool cap, order kit P5949629

2шт.

P5949621

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - load check plug, order kit P5949621

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover, small, order kit P5949621

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover, large upper port, order kit P5949621

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - valve body to end cover, large lower port, order kit P5949621

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - plug, small, order kit P5949621

3шт.

15

NSS

NOT SOLD SEPARAT

RING - backup, O-ring, order kit P5949621

3шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug, large, order kit P5949621

3шт.

17

NSS

NOT SOLD SEPARAT

O-RING - spool cap, order kit P5949621

2шт.

P5949628

SET OF PARTS

VALVE ASSEMBLY - load check, Includes: Ref. 18 - 21

1шт.

18

NSS

NOT SOLD SEPARAT

PLUG - load check valve, order valve assembly P5949628

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - poppet, order valve assembly P5949628

1шт.

20

NSS

NOT SOLD SEPARAT

POPPET - load check, order valve assembly P5949628

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - plug, order valve assembly P5949628

1шт.

P3337497

SET OF PARTS

PLUG ASSEMBLY - swing control valve, Includes: Ref. 22 - 25

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - swing control valve, order plug assembly P3337497

1шт.

23

NSS

NOT SOLD SEPARAT

RING - backup, O-ring, order plug assembly P3337497

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - plug, small, order plug assembly P3337497

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - plug, large, order plug assembly P3337497

1шт.

26

P3843613

ELEMENT

COVER - end, valve

1шт.

27

P2644907

TRUSS ROD

STUD - end cover to valve body

4шт.

P3843615

CARTRIDGE

VALVE ASSEMBLY - relief, swing control, Includes: Ref. 28 - 31

2шт.

28

NSS

NOT SOLD SEPARAT

VALVE - relief, order valve assembly P3843615

1шт.

P5949620

SEAL PACKAGE

KIT - seal, repair

2шт.

29

NSS

NOT SOLD SEPARAT

O-RING ASSEMBLY - valve, small, order kit P5949620

1шт.

30

NSS

NOT SOLD SEPARAT

RING - backup, O-ring, order kit P5949620

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - valve, large, order kit P5949620

1шт.
