(8C-46) - SWING HYDRAULIC MOTOR, P.I.N. 15483 AND AFTER, P.I.N. 106801 AND AFTER

Запчасти Case 888 (8C-46) - SWING HYDRAULIC MOTOR, P.I.N. 15483 AND AFTER, P.I.N. 106801 AND AFTER (08) - HYDRAULICS

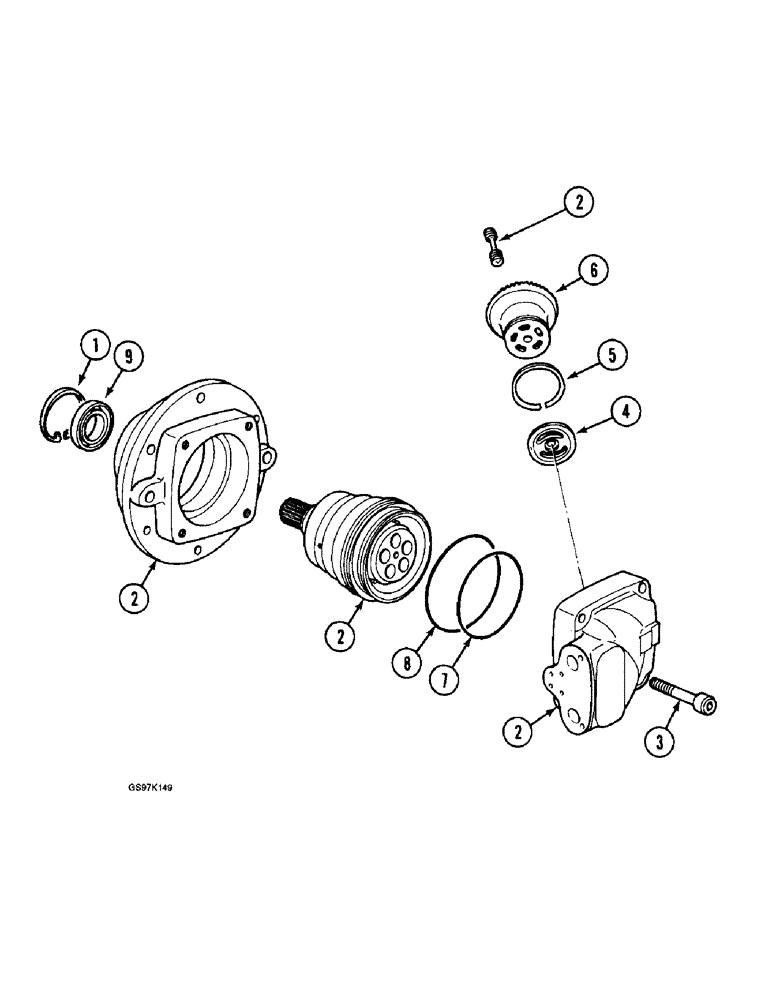

Схема запчастей Case 888 - (8C-46) - SWING HYDRAULIC MOTOR, P.I.N. 15483 AND AFTER, P.I.N. 106801 AND AFTER (08) - HYDRAULICS
9
1
2
7
2
4
5
6
3
2
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P4743722

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, swing, Includes: Ref. 1 - 6

1шт.

1

P936325

RING, SNAP

RING - snap, washer retaining

1шт.

2

P1729866

PISTON

MOTOR - hydraulic

1шт.

3

P532942

SCREW

BOLT - hex socket, 12 mm x 60 mm, grade 10.9

4шт.

4

P6546297

ELEC SUPPORT PLATE

PLATE - valve

1шт.

5

P936311

RING, SNAP

RING - locking, plate

1шт.

6

P1030006

LOCK, CYLINDER

BLOCK - cylinder

1шт.

P3749696

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, small, order kit P3749696

2шт.

8

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, large, order kit P3749696

2шт.

9

P7146036

OIL SEAL

SEAL - shaft, front housing

1шт.
