Запчасти Case 888 (8C-44) - SWING HYDRAULIC MOTOR, P.I.N. 15401 THRU 15482 (08) - HYDRAULICS

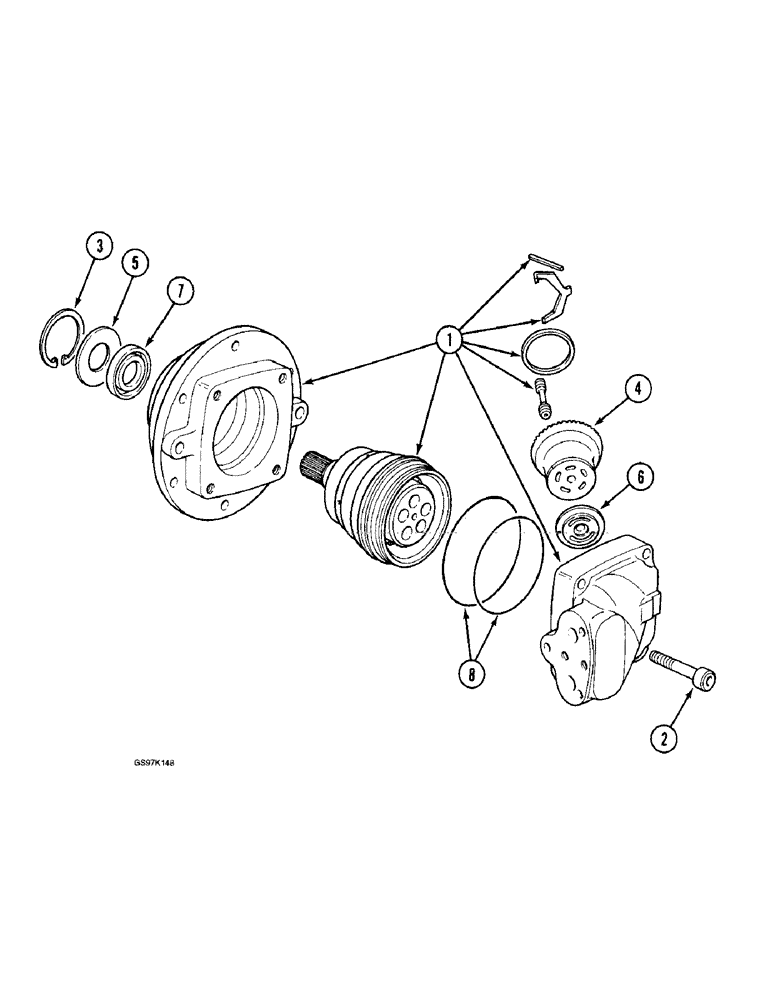

Схема запчастей Case 888 - (8C-44) - SWING HYDRAULIC MOTOR, P.I.N. 15401 THRU 15482 (08) - HYDRAULICS
3
4
7
5
6
1
8
2

Артикул

Название

Примечание

Количество

P4743721

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, swing, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - hydraulic, order motor assembly P4743721

1шт.

2

P1332953

SCREW

BOLT - hex socket, 12 mm x 45 mm, grade 10.9

4шт.

3

P936325

RING, SNAP

RING - snap, washer retaining

1шт.

4

P1030005

LOCK, CYLINDER

BLOCK - cylinder

1шт.

5

P1945345

WASHER

RETAINER - seal

1шт.

6

P6546296

ELEC SUPPORT PLATE

PLATE - valve

1шт.

P3749695

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 7 and 8

1шт.

7

P7146035

SEAL

- shaft, front housing

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly, large and small, order kit P3749695

2шт.

Выбрано товаров: 10
