(8C-42) - FEED CONTROL VALVE, P.I.N. 15608 AND AFTER, P.I.N. 106806 AND AFTER

Запчасти Case 888 (8C-42) - FEED CONTROL VALVE, P.I.N. 15608 AND AFTER, P.I.N. 106806 AND AFTER (08) - HYDRAULICS

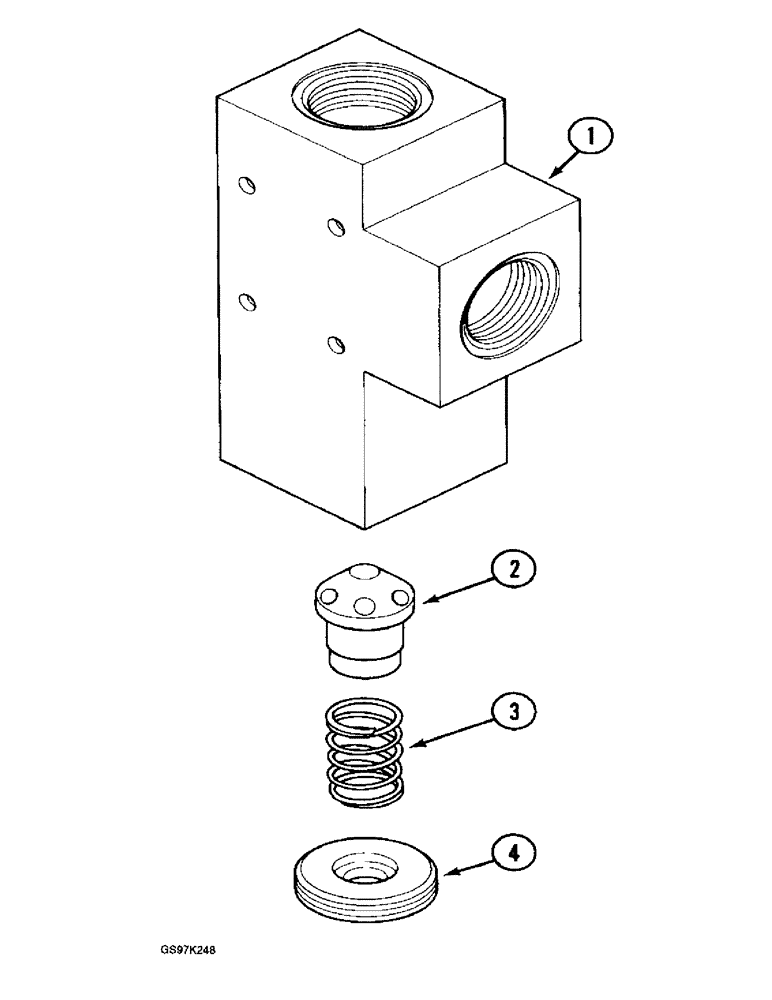

Схема запчастей Case 888 - (8C-42) - FEED CONTROL VALVE, P.I.N. 15608 AND AFTER, P.I.N. 106806 AND AFTER (08) - HYDRAULICS
2
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P4943332

VALVE

BLOCK ASSEMBLY - feed control valve, Includes: Ref. 1 - 4

1шт.

1

REF

INSTRUCTION

BODY - feed control valve, order block assembly

1шт.

2

P4943339

VALVE POPPET

POPPET - feed control valve

1шт.

3

P2838127

SPRING

- feed control valve

1шт.

4

P4229127

STOP

RETAINER - feed control valve

1шт.
