(8C-40) - FEED CONTROL VALVE, P.I.N. 15401 THRU 15607, P.I.N. 106801 THRU 106805

Запчасти Case 888 (8C-40) - FEED CONTROL VALVE, P.I.N. 15401 THRU 15607, P.I.N. 106801 THRU 106805 (08) - HYDRAULICS

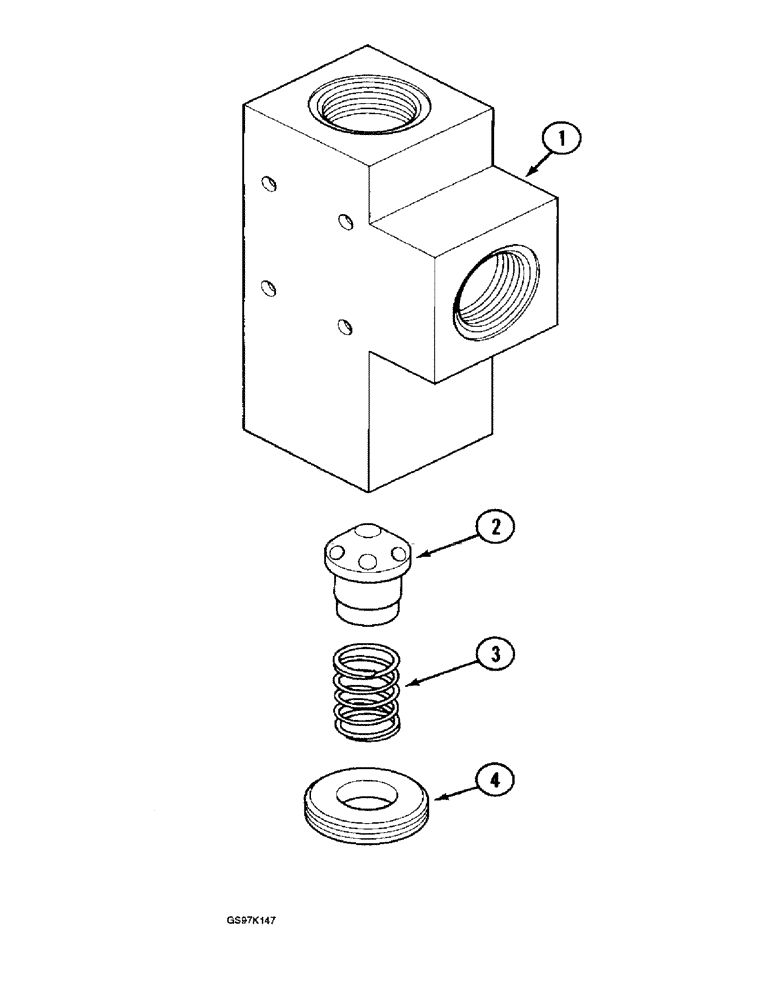

Схема запчастей Case 888 - (8C-40) - FEED CONTROL VALVE, P.I.N. 15401 THRU 15607, P.I.N. 106801 THRU 106805 (08) - HYDRAULICS
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P4743301

VALVE

BLOCK ASSEMBLY - feed control valve, Includes: Ref. 1 - 4

1шт.

1

P4743302

BODY

- feed control valve

1шт.

2

P4743303

VALVE POPPET

POPPET - feed control valve

1шт.

3

P2838107

SPRING

- feed control valve

1шт.

4

P4229120

GUIDE

RETAINER - feed control valve

1шт.
