Запчасти Case 888 (8C-36) - SOLENOID VALVE AND SWING BRAKE RELEASE (08) - HYDRAULICS

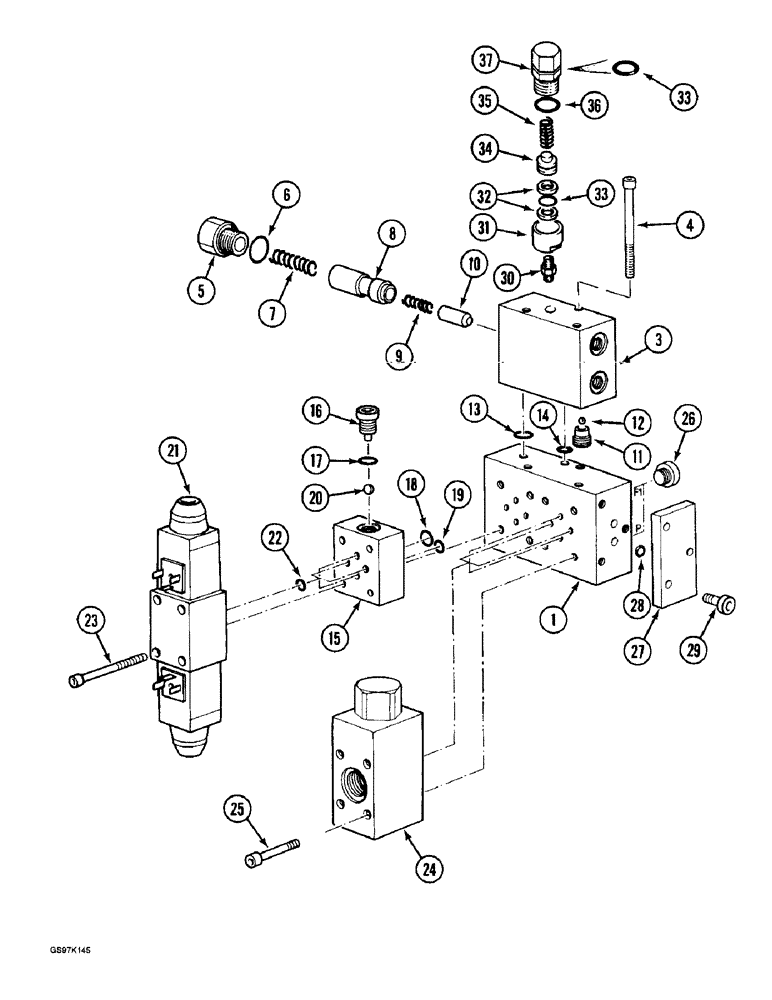

Схема запчастей Case 888 - (8C-36) - SOLENOID VALVE AND SWING BRAKE RELEASE (08) - HYDRAULICS
17
35
16
30
7
13
19
22
33
14
10
23
12
3
1
5
28
37
18
20
15
27
32
9
34
26
24
21
4
29
8
25
6
11
33
36
31

Артикул

Название

Примечание

Количество

1

P3923371

BODY

BLOCK - manifold

1шт.

P4743391

SHIN

BLOCK ASSEMBLY - swing brake release, Includes: Ref. 3 - 14

1шт.

3

NSS

NOT SOLD SEPARAT

BLOCK - swing brake release, order block assembly

1шт.

4

P632913

SCREW

BOLT - hex head socket, 5 mm x 80 mm, grade 10.9

3шт.

5

P3743357

CAP

PLUG - brake release block

1шт.

6

P1145268

SEAL

- plug

1шт.

7

P1038211

SPRING

- spool, large

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - brake release block, order block assembly

1шт.

9

P1038212

SPRING

- poppet, small

1шт.

10

NSS

NOT SOLD SEPARAT

POPPET - brake release, order block assembly

1шт.

11

P3743356

SEAT

PLUG - check valve

1шт.

12

P31002

BALL

- check valve

1шт.

13

J913994

O-RING

- brake release block, large (Replaces O-ring P1130463)

2шт.

14

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- brake release block, small (Replaces O-ring P1230430)

1шт.

P2643379

BLOCK

ASSEMBLY - check valve, Includes: Ref. 15 - 20

1шт.

15

NSS

NOT SOLD SEPARAT

BLOCK - check valve, order block assembly

1шт.

16

P2537471

PLUG

- check valve

1шт.

17

P7046042

SEAL

- plug

1шт.

18

J913994

O-RING

- block, large (Replaces O-ring P1130463)

1шт.

19

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- block, small (Replaces O-ring P1230430)

3шт.

20

P31004

BALL

- check valve

2шт.

P4743360

SELECTOR

VALVE ASSEMBLY - solenoid, pilot circuit control, Vickers supplier, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - solenoid, pilot circuit control, order valve assembly

1шт.

22

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- solenoid valve to block (Replaces O-ring P1230430)

4шт.

23

P1332902

SCREW

BOLT - hex socket, 5 mm x 55 mm

4шт.

P4743365

SHIN

VALVE ASSEMBLY - solenoid, pilot circuit control, Bosch supplier, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - solenoid, pilot circuit control, order valve assembly

1шт.

22

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- solenoid valve to block (Replaces O-ring P1230430)

4шт.

23

P1532936

SCREW

BOLT - hex socket, 5 mm x 75 mm

4шт.

24

P4743328

SHIN

VALVE ASSEMBLY - pressure limiter, parts list Fig. 8C-56

1шт.

25

P1332902

SCREW

BOLT - hex socket, 5 mm x 55 mm

4шт.

26

P2537447

PLUG

ASSEMBLY - manifold block

2шт.

P7046042

SEAL

- plug

1шт.

27

P4323353

LARGE PLATE

COVER - block assembly

1шт.

28

J913994

O-RING

- cover to body (Replaces O-ring P1130463)

2шт.

29

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

BOLT - hex socket, 8 mm x 20 mm

3шт.

30

P4237509

UNION

ADAPTER ASSEMBLY - solenoid valve to anti-surge valve

1шт.

P7046042

SEAL

- disconnect assembly

1шт.

P5837716

CARTRIDGE

VALVE ASSEMBLY - anti-surge, swing brake release, Includes: Ref. 31 - 37

1шт.

31

NSS

NOT SOLD SEPARAT

CARTRIDGE - anti-surge valve, order valve assembly

1шт.

32

P9646001

BACK-UP RING

RING - backup, O-ring (Replaces ring P1145296)

2шт.

33

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- piston

2шт.

34

P6427836

PISTON

- anti-surge valve

1шт.

35

P2838110

SPRING

- anti-surge valve

1шт.

36

P1230493

O-RING

- cap

1шт.

37

NSS

NOT SOLD SEPARAT

CAP - anti-surge valve, order valve assembly

1шт.

Выбрано товаров: 46
