(8C-32) - ATTACHMENT CONTROL VALVE BLOCK, P.I.N. 15621 AND AFTER, P.I.N. 106805 AND AFTER

Запчасти Case 888 (8C-32) - ATTACHMENT CONTROL VALVE BLOCK, P.I.N. 15621 AND AFTER, P.I.N. 106805 AND AFTER (08) - HYDRAULICS

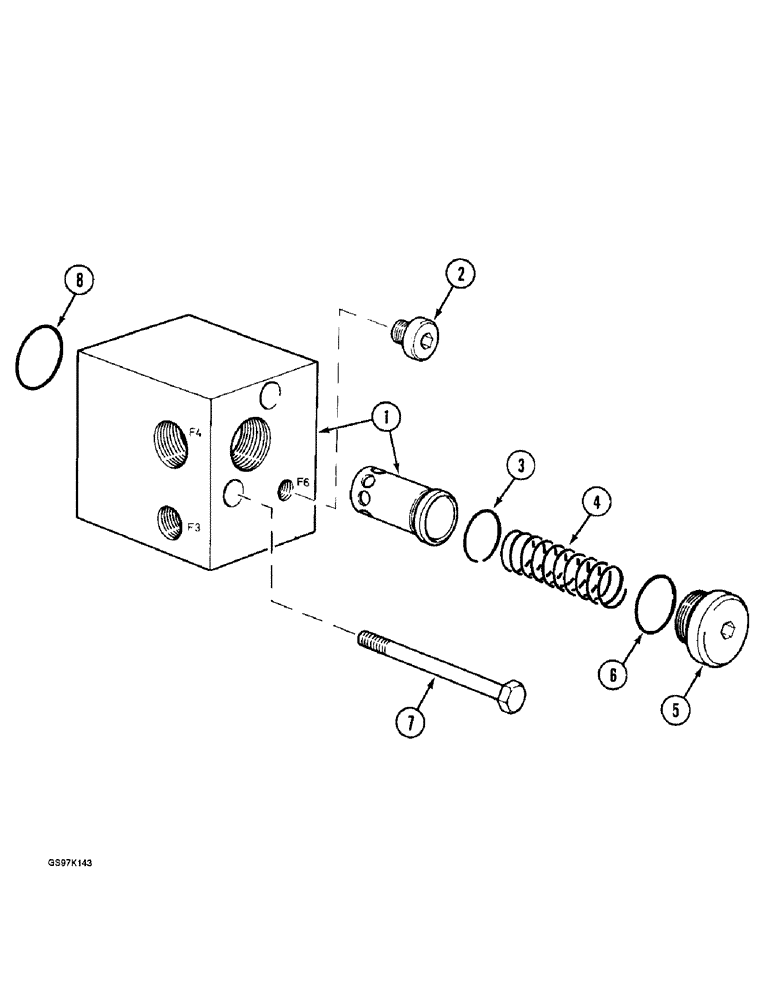

Схема запчастей Case 888 - (8C-32) - ATTACHMENT CONTROL VALVE BLOCK, P.I.N. 15621 AND AFTER, P.I.N. 106805 AND AFTER (08) - HYDRAULICS
8
7
1
4
8
3
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P4943334

SHIN

BLOCK ASSEMBLY - attachment control valve (Replaces block assembly P2643374), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - attachment control valve, order block assembly

1шт.

2

P2537447

PLUG

ASSEMBLY - body

1шт.

P7046042

SEAL

- plug

1шт.

3

P936368

SPECIAL RING

RING - snap, poppet

1шт.

4

P1038280

SPRING

- poppet

1шт.

5

P3337496

PLUG

- valve block

1шт.

6

P630442

O-RING

- plug

1шт.

7

P933879

SCREW

BOLT - hex socket, 10 mm x 130 mm

2шт.

8

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- block

1шт.
