Запчасти Case 888 (8C-26) - ATTACHMENT CONTROL VALVE, P.I.N. 15548 AND AFTER, P.I.N. 106804 AND AFTER (08) - HYDRAULICS

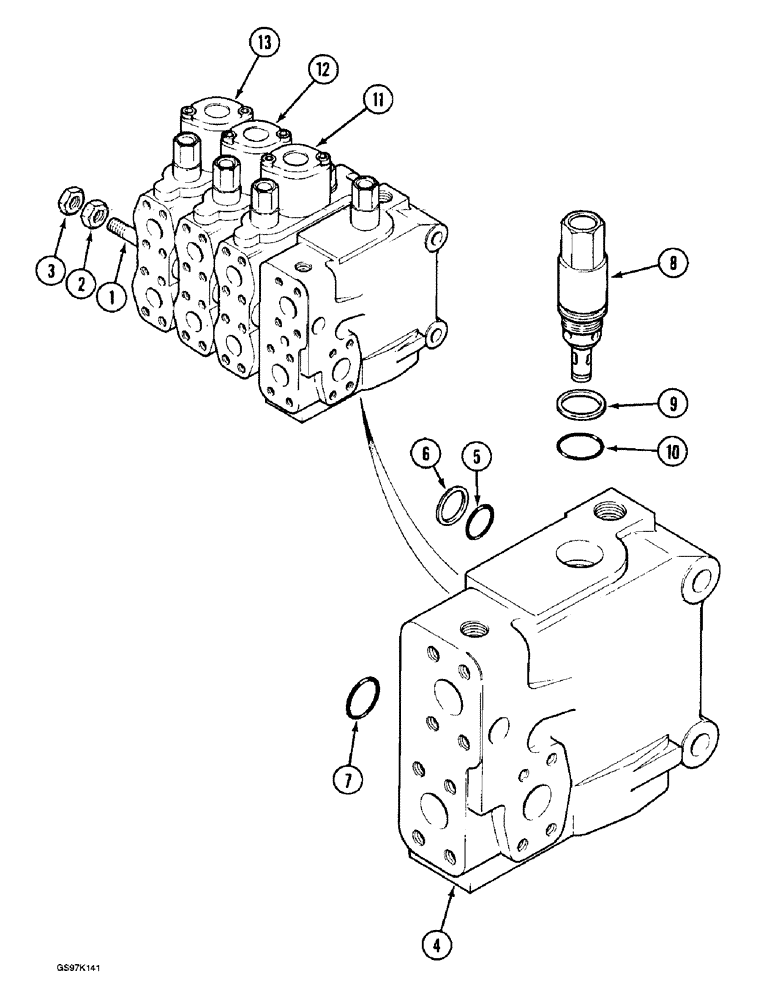

Схема запчастей Case 888 - (8C-26) - ATTACHMENT CONTROL VALVE, P.I.N. 15548 AND AFTER, P.I.N. 106804 AND AFTER (08) - HYDRAULICS
9
3
6
11
5
1
7
12
4
8
13
10
2

Артикул

Название

Примечание

Количество

1

P2527738

STEM

STUD - control valve sections

3шт.

2

P34169

NUT

- hex, 16 mm

3шт.

3

P34564

NUT

- hex, self-locking, 16 mm

3шт.

P3843623

LARGE PLATE

SECTION ASSEMBLY - inlet and outlet, attachment control valve, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

SECTION - inlet and outlet, order section assembly

1шт.

5

P2230466

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- inlet and outlet section, small

1шт.

6

P3628828

BACK-UP RING

RING - backup, O-ring

1шт.

7

P2230467

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- inlet and outlet section, large

4шт.

P3143647

LIMITER, TRAVEL

VALVE ASSEMBLY - main relief, attachment hydraulic circuit, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - main relief, hydraulic circuit, order valve assembly

1шт.

9

P1245231

BACK-UP RING

RING - backup, seal (Replaces ring P1245232)

1шт.

10

P2230462

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

- relief valve body (Replaces O-ring P2230463)

1шт.

11

P3343678

DISTRIBUTOR

SECTION ASSEMBLY - attachment control, boom, see Fig. 8C-28

1шт.

12

P3343679

DISTRIBUTOR

SECTION ASSEMBLY - attachment control, tool, see Fig. 8C-28

1шт.

13

P3343680

DISTRIBUTOR

SECTION ASSEMBLY - attachment control, arm, see Fig. 8C-28

1шт.

Выбрано товаров: 15
