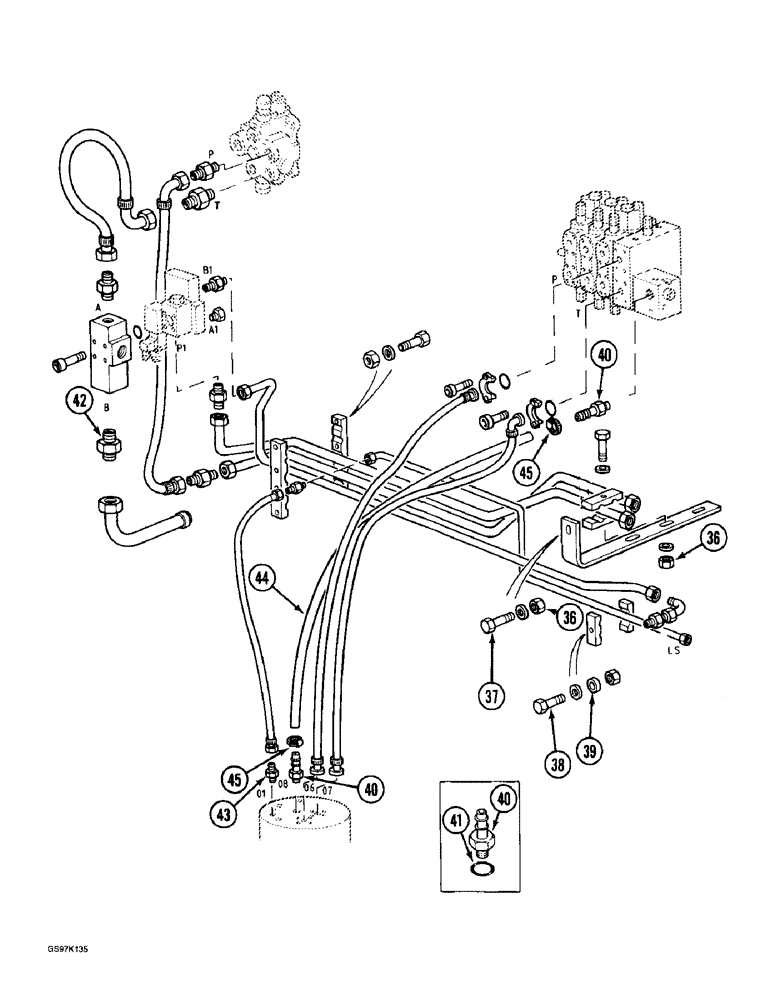

Запчасти Case 888 (8C-12) - SWIVEL AND SWING MOTOR HYDRAULIC CIRCUIT, P.I.N. 15474 AND AFTER, P.I.N. 106801 AND AFTER (CONT) (08) - HYDRAULICS

36

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

2шт.

37

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

1шт.

38

P133849

SCREW

BOLT - hex, 8 mm x 80 mm

1шт.

39

P4328730

WASHER

SPACER - bolt, 20 mm thick

1шт.

40

P3237582

FITTING

ADAPTER ASSEMBLY - straight, barb hose type, no longer available, order adapter assembly P4837545

2шт.

P5746063

SEAL

- adapter

2шт.

40

P4837545

FITTING

ADAPTER ASSEMBLY- straight, barb hose type (Replaces adapters P3237582 and P5746063)

2шт.

41

P5746063

SEAL

- adapter

1шт.

42

P4237597

UNION

ADAPTER ASSEMBLY - straight

1шт.

P945294

SEAL

- adapter

1шт.

43

P3237530

UNION

ADAPTER ASSEMBLY - straight

1шт.

P7046042

SEAL

- adapter

1шт.

44

REF

INSTRUCTION

HOSE - return, swivel to block, 800 mm (31-1/2 inch) long, cut from bulk hose P1103635 below

1шт.

45

P36998

COLLAR CLAMP

CLAMP - hose

2шт.

P1103635

PIPE

HOSE - bulk, sold by the meter

1шт.
