(8B-46) - THERMOSTAT-CONTROLLED VALVE

Запчасти Case 888 (8B-46) - THERMOSTAT-CONTROLLED VALVE (08) - HYDRAULICS

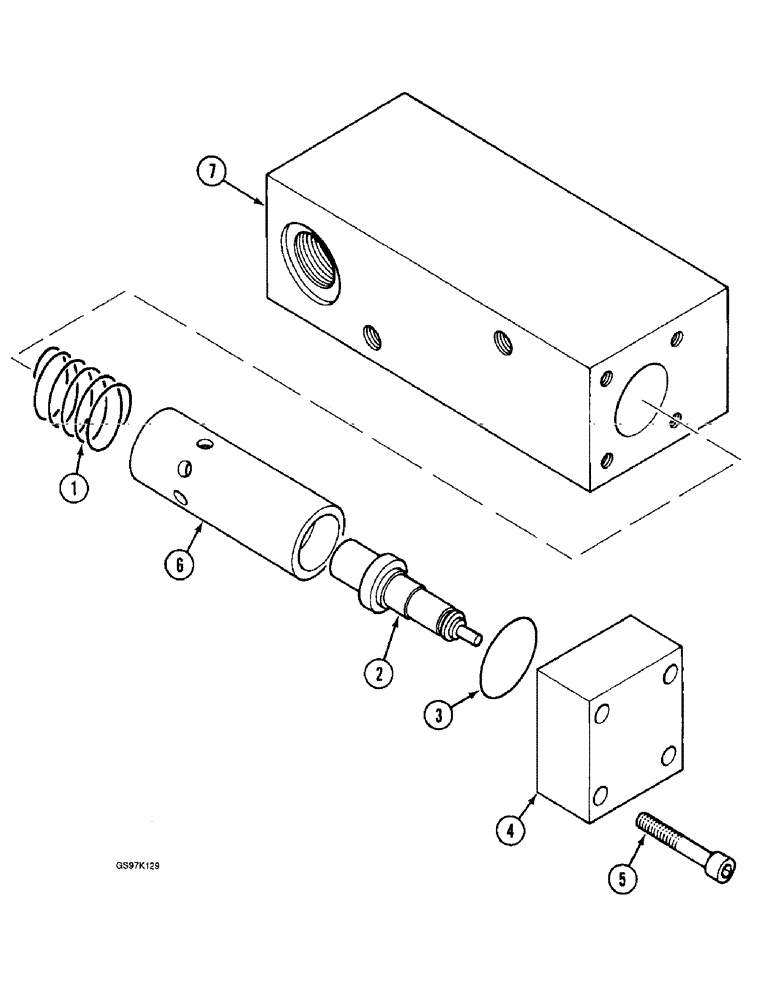

Схема запчастей Case 888 - (8B-46) - THERMOSTAT-CONTROLLED VALVE (08) - HYDRAULICS
5
7
6
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

P4743321

BY-PASS VALVE

VALVE ASSEMBLY - return, oil temperature regulating, Includes: Ref. 1 - 7

1шт.

1

P1538184

COMPRESSION SPRING

SPRING - valve

1шт.

2

P4043369

ELEMENT

VALVE - regulator

1шт.

3

P30405

O-RING

- cover

1шт.

4

P4323316

COVER

- valve

1шт.

5

Q732978

SCREW,Hex Skt Hd, M8 x 30mm, Cl 10.9

4шт.

6

NSS

NOT SOLD SEPARAT

SLEEVE - regulator valve, order valve assembly P4743321

1шт.

7

NSS

NOT SOLD SEPARAT

BODY - valve, order valve assembly P4743321

1шт.
