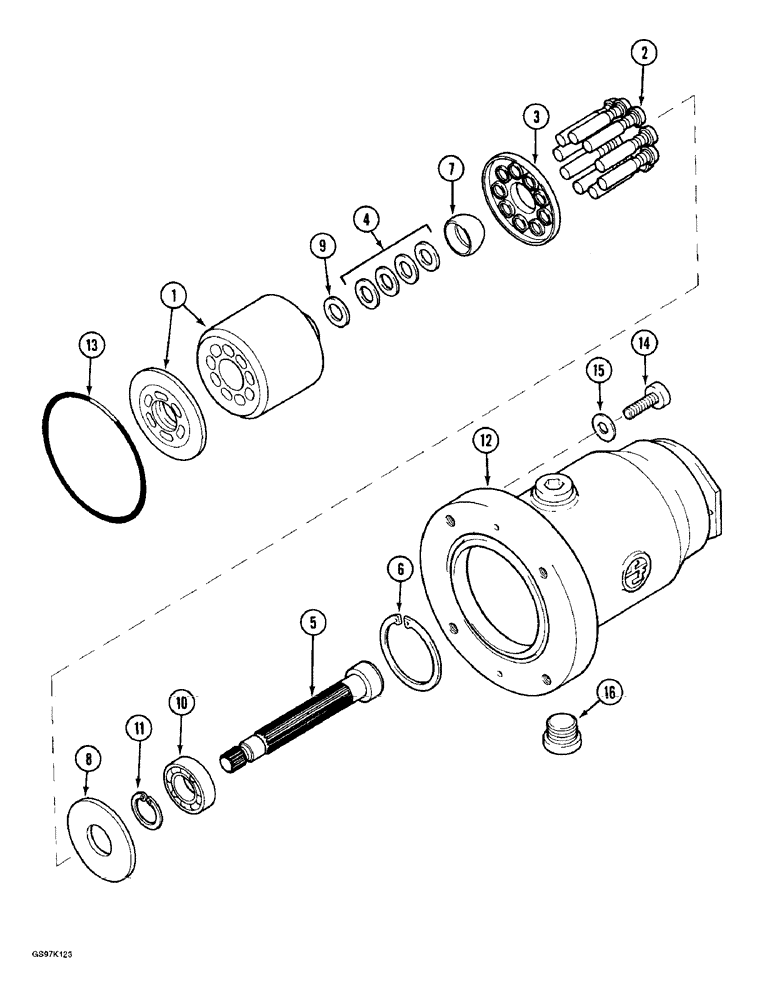

Запчасти Case 888 (8B-34) - ROTARY GROUP (08) - HYDRAULICS

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, high pressure

1шт.

P4543575

PUMP, HYDRAULIC

GROUP ASSEMBLY - rotating, swing control, fixed flow

1шт.

P3843642

ROTOR

GROUP ASSEMBLY - rotating, swing control, fixed flow, Includes: Ref. 1 - 11

1шт.

1

P8846229

LOCK, CYLINDER

BARREL - rotating group

1шт.

2

P8846201

PISTON

- small, swing control

9шт.

3

P1946366

LARGE PLATE

PLATE - piston shoe

1шт.

4

P1946363

SPARE PART SET

KIT - washer spring

1шт.

5

P2727925

DRIVE SHAFT

SHAFT - drive, internal piston pump

1шт.

6

P36234

RING, SNAP

RING - snap, retainer, large

1шт.

7

P2728991

ASSEMBLY

KNUCKLE - oscillating plate

1шт.

8

P1946364

DISC

PLATE - swash

1шт.

9

P1946365

BLOCK

SHIM - barrel

1шт.

10

P1139871

BEARING

-, Serial Range: plate,-shaft

1шт.

11

P36317

RING, SNAP

RING - snap, bearing, small

1шт.

12

P5240371

HOUSING

- swing control rotating group

1шт.

13

P3230405

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- swing control rotating group housing to bearing housing

1шт.

14

P1232958

SCREW

BOLT - hex socket, 8 mm x 45 mm, grade 10.9

4шт.

15

P34713

WASHER

- lock

4шт.

16

P3237487

PLUG

ASSEMBLY - housing

2шт.

P2230418

SEAL

- plug

1шт.
