Запчасти Case 888 (8B-30) - HYDRAULIC CONTROL AND PORT PLATE ASSEMBLY (08) - HYDRAULICS

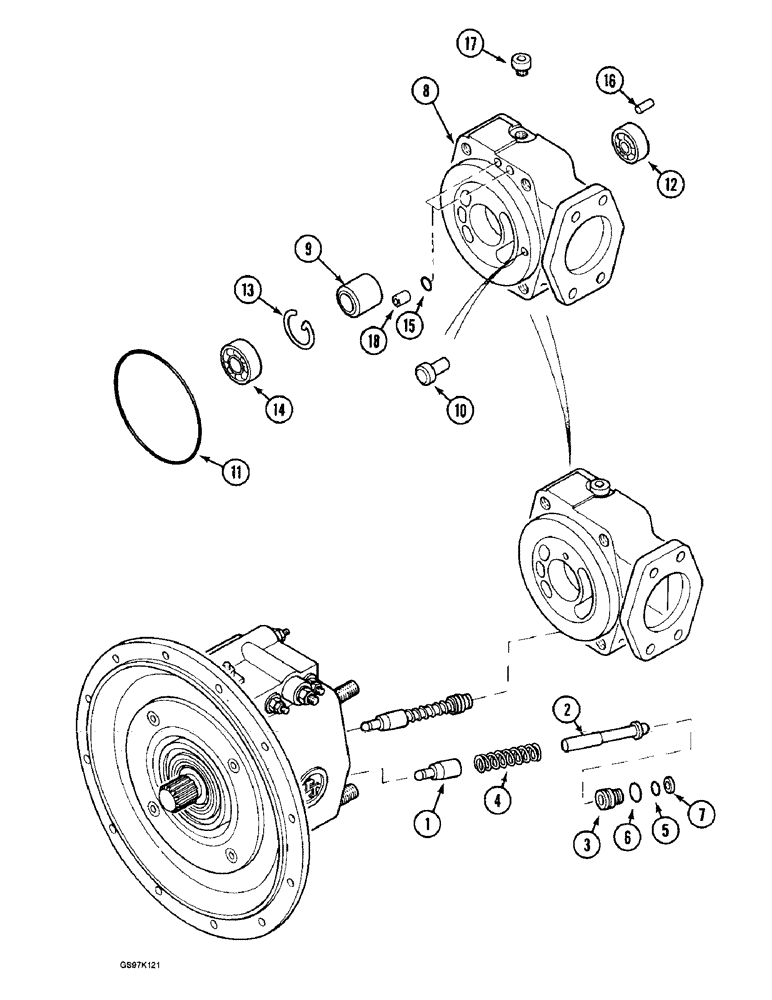

Схема запчастей Case 888 - (8B-30) - HYDRAULIC CONTROL AND PORT PLATE ASSEMBLY (08) - HYDRAULICS
14
16
10
9
1
17
11
5
8
18
2
12
4
6
15
3
7
13

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, high pressure

1шт.

REF

INSTRUCTION

GROUP ASSEMBLY - rotating, hydraulic pump

1шт.

P8346217

PISTON

ASSEMBLY - hydraulic control pump, Includes: Ref. 1 - 7

2шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - piston, order piston assembly P8346217

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - order piston assembly P8346217

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT - piston, order piston assembly P8346217

1шт.

4

P1038244

SPRING

- piston control

1шт.

5

P2930427

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

- small, piston

1шт.

6

P2930428

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

- large, piston

1шт.

7

P1245270

BACK-UP RING

RING - backup

1шт.

P8646270

HEAD (CYLINDER)

HOUSING ASSEMBLY - hydraulic pump, Includes: Ref. 8 - 18

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING - bearing, order housing assembly P8646270

1шт.

9

P4229116

TRANSMISSION SLEEVE

SLEEVE - shaft

1шт.

10

P1136005

SPLIT PIN/SAFETY PIN

PIN - shaft, position

2шт.

11

P2930423

O-RING

- large, housing

1шт.

12

P2039831

BEARING

- small, at the rear of housing

1шт.

13

P3036993

SPECIAL RING

RING - snap, bearing

1шт.

14

P2039832

BEARING

- large, at the front of housing

1шт.

15

P2930476

O-RING

- small, housing (Replaces O-ring P2930424)

2шт.

16

P1136006

SPLIT PIN/SAFETY PIN

PIN - housing to swing control housing

1шт.

17

P3237483

PLUG

ASSEMBLY - housing

1шт.

P2230426

SEAL

- plug

1шт.

18

P435753

SPLIT PIN/SAFETY PIN

PIN - housing

2шт.

Выбрано товаров: 23
