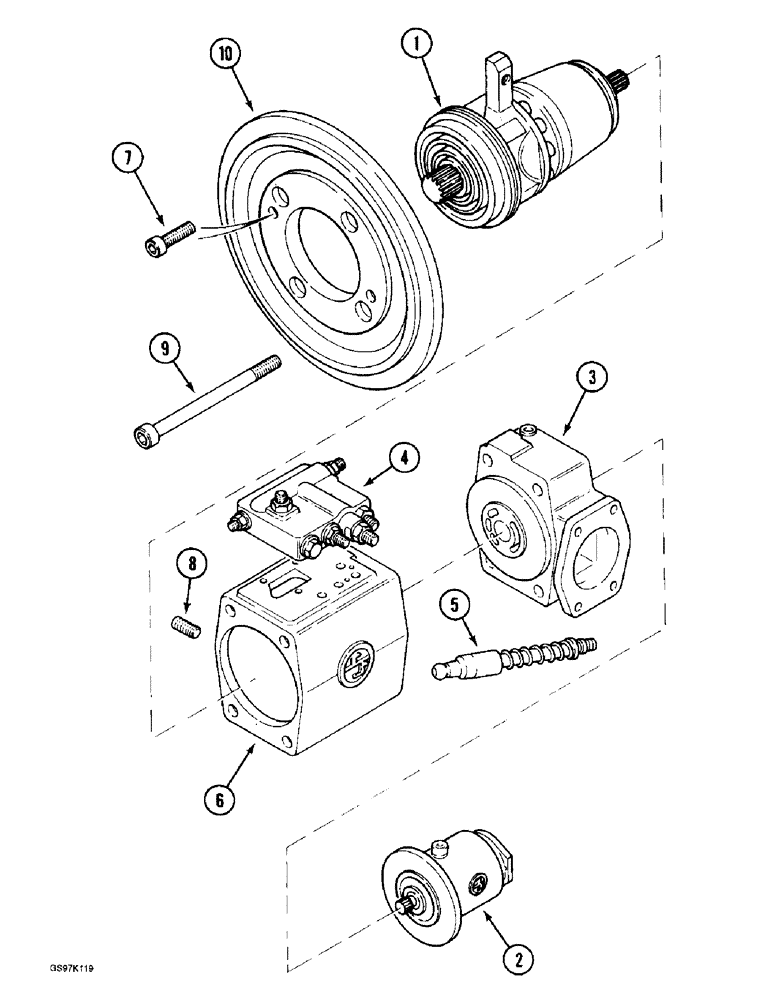

Запчасти Case 888 (8B-26) - HIGH PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

P4543566

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, high pressure, Includes: Ref. 1 - 10

1шт.

1

REF

INSTRUCTION

GROUP ASSEMBLY - rotating, high pressure pump, adjustable flow, parts list Fig. 8B-28

1шт.

2

REF

INSTRUCTION

GROUP ASSEMBLY - rotating, high pressure pump, swing control, fixed flow, parts list Fig. 8B-34

1шт.

3

P8646270

HEAD (CYLINDER)

HOUSING ASSEMBLY - bearing, parts list Fig. 8B-30

1шт.

4

P4543559

PUMP, HYDRAULIC

BLOCK ASSEMBLY - regulator, high pressure hydraulic pump, parts list Fig. 8B-40

1шт.

5

P8346217

PISTON

ASSEMBLY - hydraulic control, parts list Fig. 8B-30

2шт.

6

P5140339

HOUSING

BODY - pump assembly

1шт.

7

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

2шт.

8

P8346208

STEM

PIN - anti-roll device

1шт.

9

P1532928

SCREW

BOLT - hex socket, 20 mm x 250 mm, grade 10.9

4шт.

10

P150299

SHIN

HOUSING - pump assembly

1шт.
