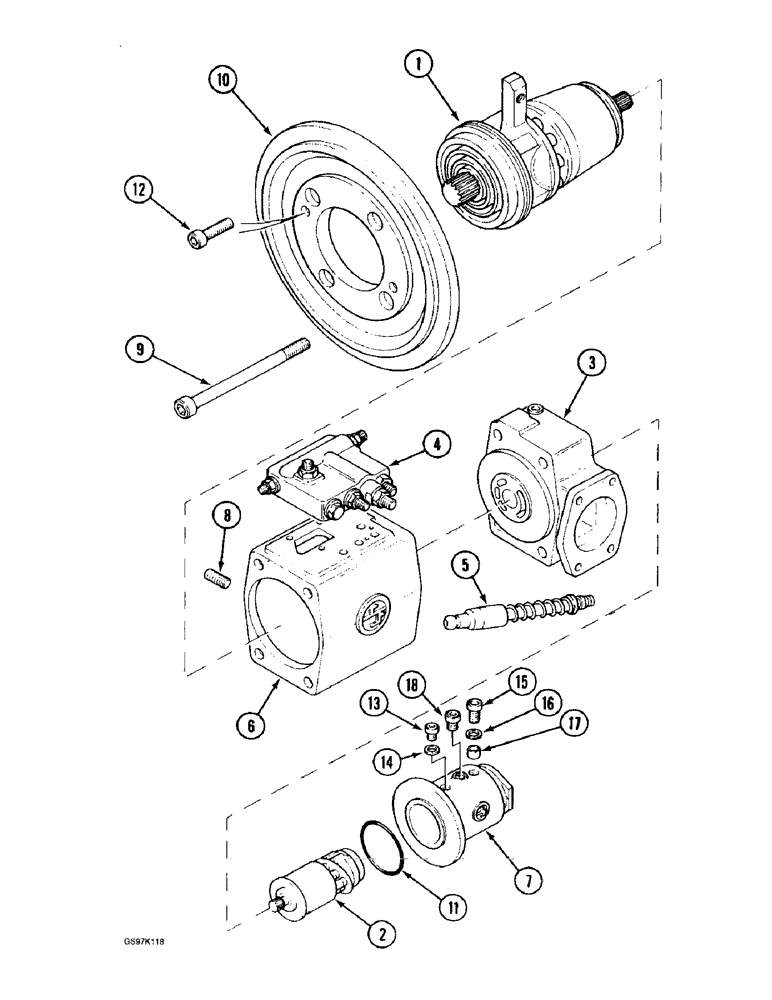

Запчасти Case 888 (8B-24) - HIGH PRESSURE HYDRAULIC PUMP, P.I.N. 15401 AND AFTER, P.I.N. 106801 AND AFTER (08) - HYDRAULICS

P4543546

PUMP

ASSEMBLY - hydraulic, high pressure, no longer available, order pump assembly P4543566, parts list Fig. 8B-26 and gasket P3230409, Serial Range: 15401-15481

1шт.

P4543559

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, high pressure, no longer available, order pump assembly P4543566, parts list Fig. 8B-26, Start Serial: 15482

1шт.

P4543559

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, high pressure, no longer available, order pump assembly P4543566, parts list Fig. 8B-26, Start Serial: 106801

1шт.

1

REF

INSTRUCTION

GROUP ASSEMBLY - rotating, high pressure pump, adjustable flow, parts list Fig. 8B-28

1шт.

2

REF

INSTRUCTION

GROUP ASSEMBLY - rotating, high pressure pump, swing control, fixed flow, parts list Fig. 8B-32

1шт.

3

P8646270

HEAD (CYLINDER)

HOUSING ASSEMBLY - bearing, parts list Fig. 8B-30

1шт.

4

REF

INSTRUCTION

BLOCK ASSEMBLY - regulator, high pressure hydraulic pump, parts list Fig. 8B-36, Serial Range: 15401-15481

1шт.

4

P4543559

PUMP, HYDRAULIC

BLOCK ASSEMBLY - regulator, high pressure hydraulic pump, parts list Fig. 8B-40, Start Serial: 15482

1шт.

4

P4543559

PUMP, HYDRAULIC

BLOCK ASSEMBLY - regulator, high pressure hydraulic pump, parts list Fig. 8B-40, Start Serial: 106801

1шт.

5

P8346217

PISTON

ASSEMBLY - hydraulic control, parts list Fig. 8B-30

2шт.

6

P5140339

HOUSING

BODY - pump assembly

1шт.

7

P5240334

HOUSING

- swing control rotating group

1шт.

8

P8346208

STEM

PIN - anti-roll device

1шт.

9

P1532928

SCREW

BOLT - hex socket, 20 mm x 250 mm, grade 10.9

4шт.

10

P150299

SHIN

HOUSING - pump assembly

1шт.

11

P2930422

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

- swing control rotating group housing to bearing housing

1шт.

12

P32911

SCREW

BOLT - hex socket, 6 mm x 20 mm

2шт.

13

P1232958

SCREW

BOLT - hex socket, 6 mm x 45 mm, grade 10.9

4шт.

14

P34713

WASHER

- lock

4шт.

15

P3533022

SCREW

BOLT - hex socket

1шт.

16

P8846070

BUSHING

SEAL - bolt

1шт.

17

P5428766

CENTER JOINT

RETAINER - plate, swash

1шт.

18

P3237487

PLUG

ASSEMBLY - housing

2шт.

P2230418

SEAL

- plug

1шт.
