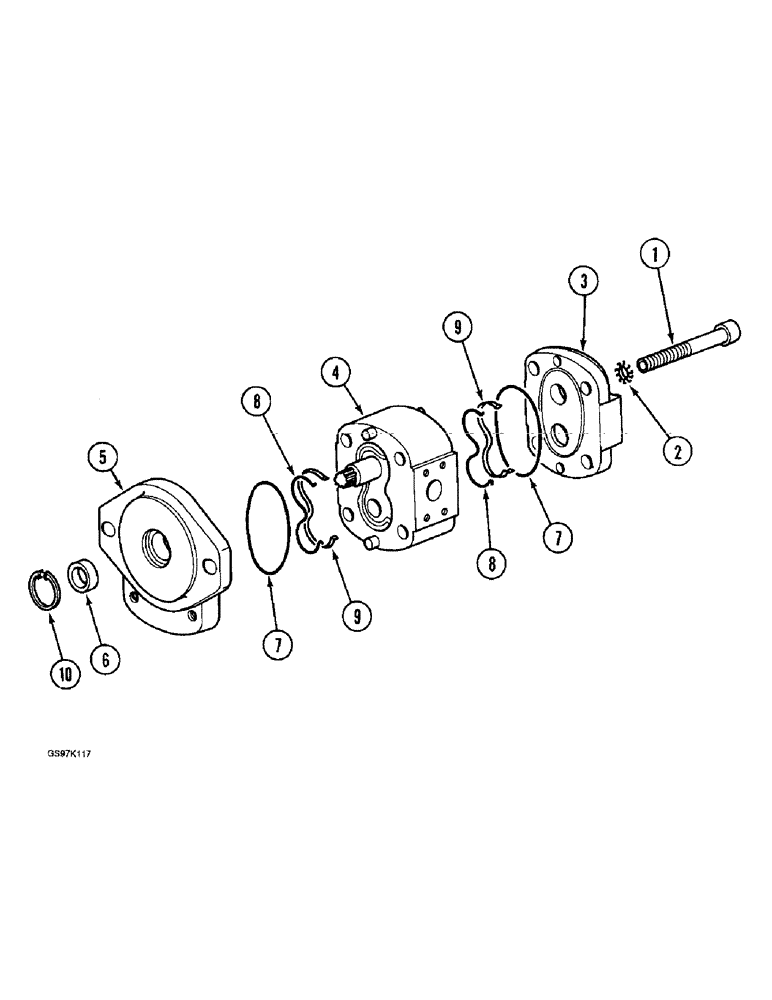

Запчасти Case 888 (8B-22) - LOW PRESSURE HYDRAULIC PUMP (08) - HYDRAULICS

P3943531

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, low pressure, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BOLT - hex socket, cover and housing, order pump assembly P3943531

2шт.

2

NSS

NOT SOLD SEPARAT

WASHER - lock, cover and hosuing bolt, order pump assembly P3943531

2шт.

3

NSS

NOT SOLD SEPARAT

COVER - pump, closed end, order pump assembly P3943531

1шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - gear, includes drive shaft and gears, order pump assembly P3943531

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - pump, drive end, order pump assembly P3943531

1шт.

6

P151415

OIL SEAL

SEAL - drive and cover

1шт.

P5449689

SEAL PACKAGE

KIT - repair, seal

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - covers to gear housing, order kit P5449689

2шт.

8

NSS

NOT SOLD SEPARAT

SEAL - gear housing, order kit P5449689

2шт.

9

NSS

NOT SOLD SEPARAT

PROTECTOR - housing seal, order kit P5449689

2шт.

10

P36215

RING, SNAP

RING - snap, seal retaining

1шт.
