Запчасти Case 888 (8B-16) - HYD. PUMP LINES, THERMOSTAT-CONTROLLED VALVE OPTION, P.I.N. 15647 AND AFTER, P.I.N. 106813 AND AFTER (08) - HYDRAULICS

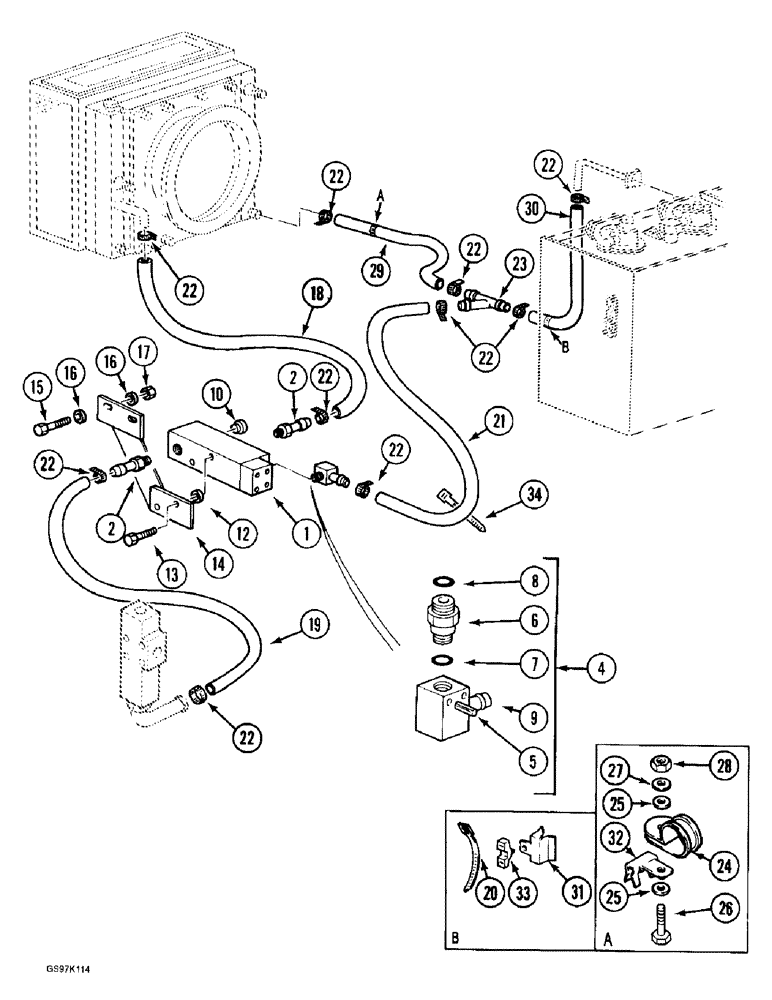

Схема запчастей Case 888 - (8B-16) - HYD. PUMP LINES, THERMOSTAT-CONTROLLED VALVE OPTION, P.I.N. 15647 AND AFTER, P.I.N. 106813 AND AFTER (08) - HYDRAULICS
19
31
4
22
20
13
10
34
7
5
25
25
22
16
21
15
9
28
26
18
6
1
32
17
8
23
33
22
22
22
2
12
24
16
30
27
14
29
2
22
22
22
22

Артикул

Название

Примечание

Количество

1

P4743321

BY-PASS VALVE

VALVE ASSEMBLY - return, thermostat-controlled, parts list Fig. 8B-46

1шт.

2

P4837545

FITTING

ADAPTER ASSEMBLY - straight, barb hose type (Replaces adapters P3237582 and P5746063)

2шт.

P5746063

SEAL

- adapter

1шт.

4

P5137722

FITTING

ADAPTER ASSEMBLY - return hoses, at valve and reservoir, Includes: Ref. 5 - 9

1шт.

5

P35725

SPLIT PIN/SAFETY PIN

PIN - roll, adapter body

2шт.

6

P4037541

LARGE PIN

ADAPTER - straight

1шт.

7

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

Adapter (Replaces O-ring P430411) -116, 90 Duro, .737" ID x .103" Thk

1шт.

8

P5746063

SEAL

- adapter

1шт.

9

P5137721

BODY

- adapter

1шт.

10

P2537413

PLUG

ASSEMBLY - thermostat-controlled valve

1шт.

P1145268

SEAL

- plug

1шт.

12

P4328796

WASHER

SPACER - bolt, 7 mm thick

2шт.

13

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

BOLT, Hex, M10 x 25, 10.9, Full Thd

2шт.

14

P4427133

SUPPORT

BRACKET - valve mounting

1шт.

15

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm (Replaces bolt P1133839)

2шт.

16

P3528795

WASHER

SPACER - bolt, 7 mm thick

4шт.

17

P34598

SAFETY NUT

BOLT - hex, self-locking, 10 mm

2шт.

19

REF

INSTRUCTION

HOSE - coupling to valve, 400 mm (15-3/4 inch) long, cut from bulk hose P1103645 below

1шт.

20

P36902

COLLAR CLAMP

CLAMP - hose, large

4шт.

21

REF

INSTRUCTION

HOSE - valve to reservoir, 1250 mm (49-3/16 inch) long, cut from bulk hose P1103635 below

1шт.

22

P36998

COLLAR CLAMP

CLAMP - hose, small

6шт.

23

P3750197

MANIFOLD

- cooler return

1шт.

24

P51959

CLAMP

- hose

1шт.

25

P35020

WASHER

SPACER - bolt, 7 mm thick

1шт.

26

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

2шт.

27

P3528799

WASHER

SPACER - bolt, 4 mm thick

1шт.

28

P234513

SAFETY NUT

NUT - hex, 6 mm

1шт.

29

REF

INSTRUCTION

HOSE - cooler to coupling, 502 mm (19-3/4 inch) long, cut from bulk hose P1103645 below

1шт.

30

REF

INSTRUCTION

HOSE - coupling to reservoir, 1250 mm (49-3/16 inch) long, cut from bulk hose P1103635 below

1шт.

31

P2036902

CLASP

CLIP - retainer, 3 - 6 mm (1/8 - 1/4 inch) range

1шт.

32

P2036903

CLASP

CLIP - retainer, 8 - 12.5 mm (5/16 - 1/2 inch) range

1шт.

33

PP2036939

CLASP

RETAINER - tie strap

1шт.

34

P51946

CLAMP

STRAP - tie, hose, 257 mm (10-1/8 inch) long

1шт.

N8560221

HOSE

HOSE - bulk, sold by the meter

1шт.

P1103635

PIPE

HOSE - bulk, sold by the meter

1шт.

Выбрано товаров: 35
