Запчасти Case 888 (8B-12) - HYD. PUMP LINES, PUMP TO SWING VALVE, SOLENOID VALVE, P.I.N. 15638 & AFTER, P.I.N. 106811 & AFTER (08) - HYDRAULICS

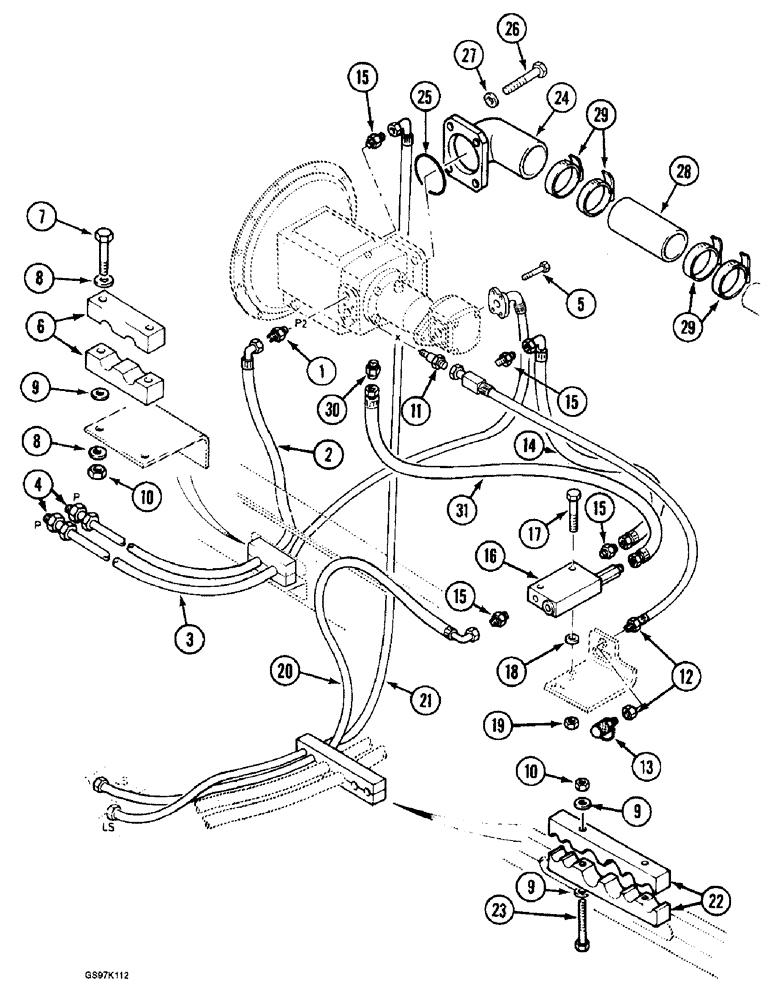

Схема запчастей Case 888 - (8B-12) - HYD. PUMP LINES, PUMP TO SWING VALVE, SOLENOID VALVE, P.I.N. 15638 & AFTER, P.I.N. 106811 & AFTER (08) - HYDRAULICS
9
3
23
29
5
21
14
12
22
6
10
19
15
27
15
18
15
17
24
8
30
31
9
15
16
20
11
25
8
4
2
9
29
1
28
10
26
13
7

Артикул

Название

Примечание

Количество

1

P3237533

UNION

ADAPTER ASSEMBLY - straight

1шт.

P1145268

SEAL

- adapter

1шт.

2

P5431933

HOSE

- pressure, to swing control valve, 1250 mm (49-3/16 inch) long

1шт.

3

P7631935

HOSE

ASSEMBLY- pressure, to solenoid valve, 1450 mm (57-3/32 inch) long

1шт.

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

4

P3237537

UNION

ADAPTER - straight

2шт.

5

P32912

SCREW

BOLT - hex socket, 6 mm x 25 mm

4шт.

6

P5120342

SHIN

CLAMP -, Serial Range: hoses-frame

2шт.

7

P33832

SCREW

BOLT - hex, 10 mm x 110 mm

2шт.

8

P34611

WASHER

SPACER - flat, 10 mm

4шт.

9

P3528795

WASHER

SPACER - bolt, 7 mm thick

6шт.

10

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

4шт.

11

P4837507

UNION

ADAPTER ASSEMBLY - striaght

1шт.

P7046042

SEAL

- adapter

1шт.

12

P7331966

HOSE

- pump to disconnecto, 676 mm (26-5/8 inch) long

1шт.

13

P3237549

UNION

DISCONNECT ASSEMBLY - pressure check

1шт.

P7046042

SEAL

- adapter

1шт.

14

P5431970

HOSE

- leak return, pump to filter, 1600 mm (63 inch) long

1шт.

16

P4043379

SHIN

VALVE ASSEMBLY - leak return, parts list Fig. 8B-44

1шт.

17

H132970

BOLT,Hex, M8 x 60

BOLT - hex, 8 mm x 60 mm, order from Deutz

2шт.

18

P3528794

WASHER

SPACER - bolt, 6 mm thick

4шт.

19

P134596

SAFETY NUT

NUT - hex, self-locking, 8 mm

2шт.

20

P5431986

HOSE

- leak return, 1000 mm (39-3/8 inch) long

1шт.

21

P7331927

HOSE

- leak return, pump to tee, 1600 mm (63 inch) long

1шт.

22

P5120338

SHIN

CLAMP - tube

2шт.

23

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

2шт.

24

P3750139

MANIFOLD

TUBE - suction, at pump, no longer available, order tube P4050168, four P32962 bolts and four P4328746 spacers

1шт.

24

P4050168

MANIFOLD

TUBE - suction, at pump, Start Serial: 15640

1шт.

24

P4050168

MANIFOLD

TUBE - suction, at pump, Start Serial: 106812

1шт.

25

P30490

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

- suction tube

1шт.

26

P32955

SCREW

BOLT - hex socket, 16 mm x 40 mm, used with tube P3750139

4шт.

26

P32962

SCREW

BOLT - hex socket, 16 mm x 50 mm, used with tube P4050168

4шт.

27

P4328746

WASHER

SPACER - bolt, 11 mm thick

4шт.

28

P6631970

LARGE HOSE

HOSE - suction, reservoir to tube at pump

1шт.

29

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

CLAMP - suction hose, adjustable, 3-1/16 - 4 inch diameter (Replaces clamp P1236903)

4шт.

30

P3237544

UNION

ADAPTER - straight

1шт.

31

P5931943

HOSE

- leak return, pump to anti-surge valve, 630 mm (24-13/16 inch) long

1шт.

Выбрано товаров: 37
