Запчасти Case 888 (8B-06) - HYD. PUMP LINES, PUMP TO ATTACHMENT CONTROL VALVE, P.I.N. 15638 AND AFTER, P.I.N. 106812 AND AFTER (08) - HYDRAULICS

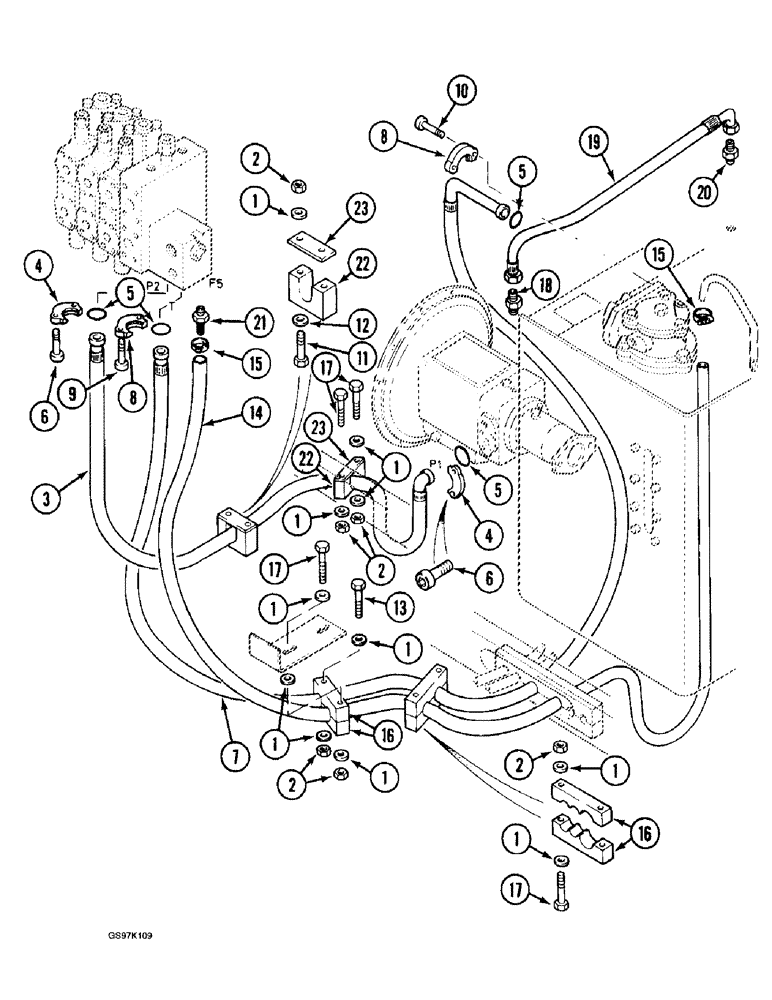

Схема запчастей Case 888 - (8B-06) - HYD. PUMP LINES, PUMP TO ATTACHMENT CONTROL VALVE, P.I.N. 15638 AND AFTER, P.I.N. 106812 AND AFTER (08) - HYDRAULICS
5
2
17
10
23
2
8
2
2
11
1
1
1
22
7
1
16
1
14
8
21
4
22
16
19
1
15
1
20
5
6
5
4
13
23
3
15
17
17
12
1
18
6
1
9

Артикул

Название

Примечание

Количество

1

P3528795

WASHER

SPACER - bolt, 7 mm thick

11шт.

2

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

8шт.

3

P5931916

HOSE

- pressure, pump attachment control valve, 2000 mm (78-3/4 inch) long

1шт.

4

P4024267

SHIN

FLANGE - split, hose

4шт.

5

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- tube flange

4шт.

6

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

7

P7631924

HOSE

- return, attachment control valve to reservoir, 1600 mm (63 inch) long

1шт.

8

P4024272

BRACKET

FLANGE - split, hose

4шт.

9

P32933

SCREW

BOLT - hex socket, 10 mm x 30 mm

4шт.

10

P32932

SCREW

BOLT - hex socket, 10 mm x 25 mm

4шт.

11

P33824

SCREW

BOLT - hex, 10 mm x 100 mm

2шт.

12

P4328730

WASHER

SPACER - bolt, 20 mm thick

2шт.

13

P33832

SCREW

BOLT - hex, 10 mm x 110 mm

1шт.

14

REF

INSTRUCTION

HOSE - leak return, 2500 mm (98-1/2 inch) long, cut from bulk hose P1103635 below

1шт.

15

P36998

COLLAR CLAMP

CLAMP - hose

2шт.

16

P5120327

SHIN

CLAMP -, Serial Range: hoses-frame

4шт.

17

P933808

SCREW

BOLT - hex, 10 mm x 90 mm

5шт.

18

P3237533

UNION

ADAPTER ASSEMBLY - straight

1шт.

P1145268

SEAL

- adapter

1шт.

19

P5431963

HOSE

- drain pump to reservoir, 630 mm (24-13/16 inch) long

1шт.

20

P4037597

UNION

ADAPTER ASSEMBLY - straight

1шт.

P5746063

SEAL

- adapter

1шт.

21

P4837545

FITTING

ADAPTER ASSEMBLY - straight

1шт.

P5746063

SEAL

- adapter

1шт.

22

P5120341

SHIN

CLAMP - hoses

2шт.

23

P3122894

PLATE

- clamp, hoses

2шт.

P1103635

PIPE

HOSE - bulk, sold by the meter

1шт.

Выбрано товаров: 27
