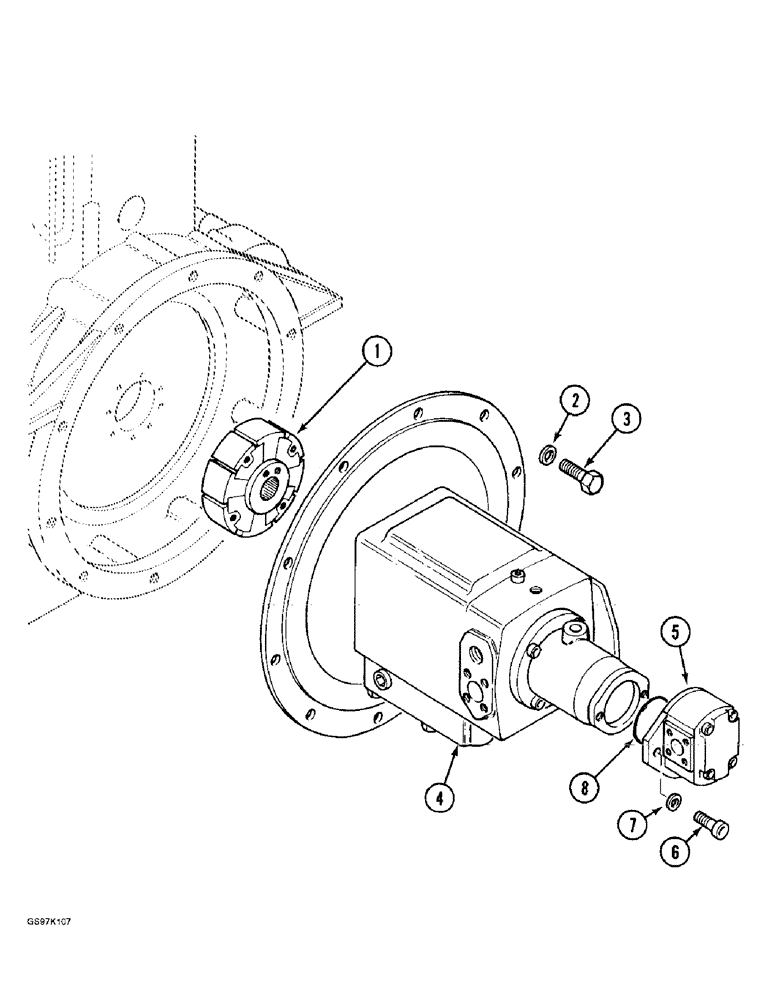

Запчасти Case 888 (8B-02) - HIGH PRESSURE HYDRAULIC PUMP COUPLING (08) - HYDRAULICS

1

P7946242

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - motor to main hydraulic pump

1шт.

P32962

SCREW

BOLT - coupling, hex, 16 mm x 50 mm

4шт.

2

P4328796

WASHER

SPACER - bolt, 7 mm thick

12шт.

3

P933818

SCREW

BOLT - hex, 10 mm x 40 mm

12шт.

4

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, high pressure, parts list page 8B-25

1шт.

5

P3943531

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, low pressure, parts list Fig. 8B-22

1шт.

6

P32931

SCREW

BOLT - hex socket, 10 mm x 20 mm, pump mounting to high pressure pump body

2шт.

7

P1545410

WASHER

SPACER - bolt, 2 mm thick

2шт.

8

P2030429

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

- low pressure pump to high pressure pump, 1.78 mm x 82.27 mm, if used

1шт.

8

P3230409

GASKET

O-RING - low pressure pump to high pressure pump, 2 mm x 84 mm, if used

1шт.
