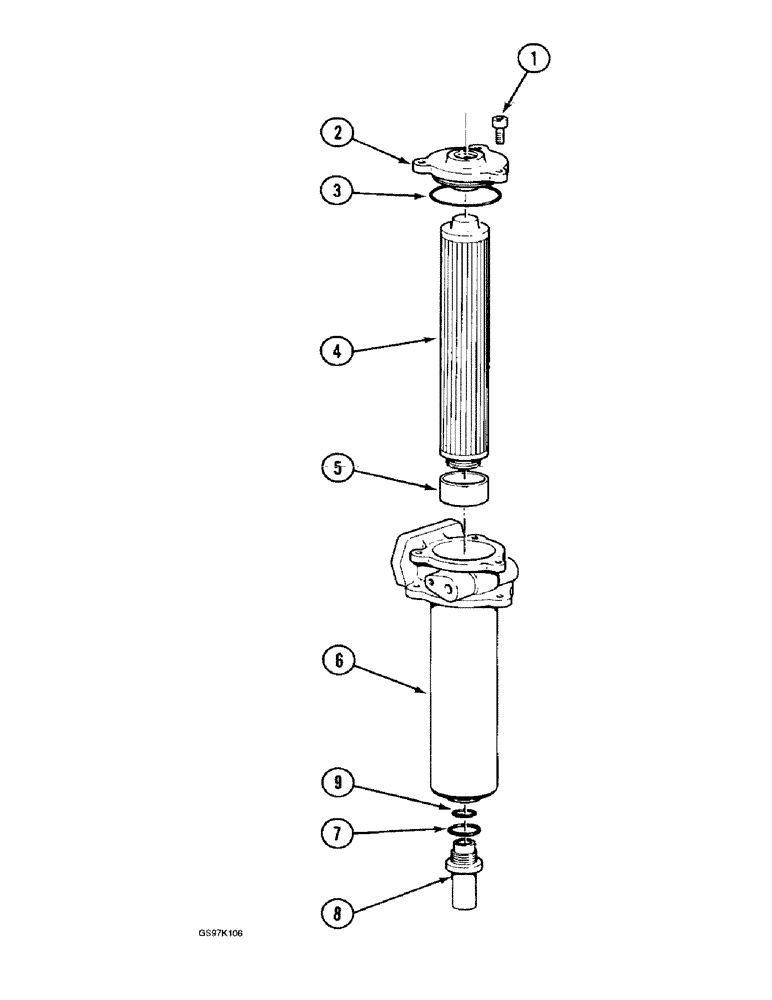

Запчасти Case 888 (8A-06) - HYDRAULIC RETURN OIL FILTER (08) - HYDRAULICS

P2950516

FILTER, ENGINE OIL

FILTER ASSEMBLY - hydraulic return oil, Includes: Ref. 1 - 9

1шт.

1

P32921

SCREW,Hex Soc Hd, M8 x 20, 10.9

BOLT - hex, 8 mm x 20 mm, grade 10.9

3шт.

P5140375

COVER

HEAD ASSEMBLY - return oil filter, Includes: Ref. 2

1шт.

2

P5340307

COVER

HEAD - return oil filter, order head assembly P5140375

1шт.

3

P2930460

O-RING

- head

1шт.

4

P2950511

FILTER, ENGINE OIL

ELEMENT - return oil filter

1шт.

5

P1950591

FILTER BOWL

BOWL - return oil filter

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - return oil filter, order filter assembly P2950516

1шт.

7

P2930459

O-RING

- adapter

1шт.

8

P2950514

TUBE

ADAPTER - filter housing

1шт.

9

P2930419

O-RING

- element, lower

1шт.
