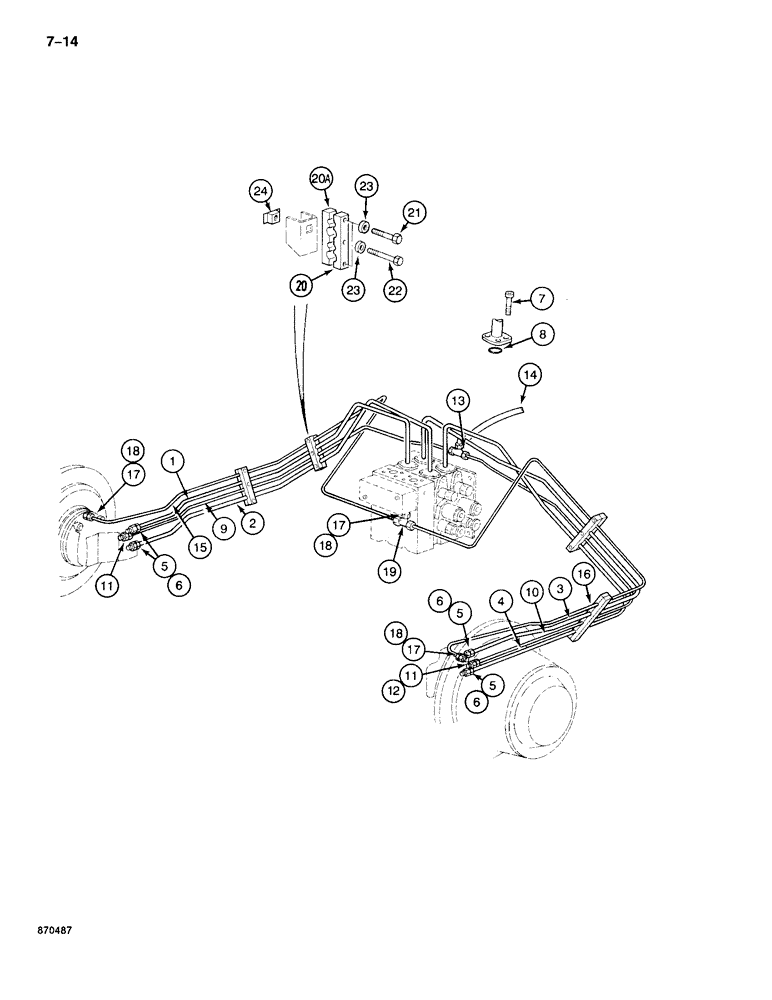

Запчасти Case 888 (7-014) - TRACK DRIVE AND BRAKE HYDRAULIC LINES, P.I.N. FROM 74163 TO 74212 (07) - BRAKES

1

P6649184

PIPE

TUBE - drive control, to left-hand drive motor, upper port

1шт.

2

P6649183

PIPE

TUBE - drive control, to left-hand drive motor, lower port

1шт.

3

P6649185

PIPE

TUBE - drive control, to right-hand drive motor, upper port

1шт.

4

P6649182

PIPE

TUBE - drive control, to right-hand drive motor, lower port

1шт.

5

P3237533

UNION

ADAPTER - straight, Includes: Ref. 6

4шт.

6

P1145268

SEAL

- adapter, not shown

1шт.

7

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

8

P1130483

O-RING

- tube flange

4шт.

9

P6649181

PIPE

TUBE - leak return, from left-hand drive motor

1шт.

10

P6649180

PIPE

TUBE - leak return, from right-hand drive motor

1шт.

11

P3237532

UNION

ADAPTER - straight, Includes: Ref. 12

2шт.

12

P2230418

SEAL

O-RING - adapter, not shown

1шт.

13

P937276

TEE

- return, leak return tubes

1шт.

14

REF

INSTRUCTION

HOSE - leak return to swivel, see figure 7-10

1шт.

15

P6649179

PIPE

TUBE - brake release, left-hand drive motor

1шт.

16

P6649178

PIPE

TUBE - brake release, right-hand drive motor

1шт.

17

P3237530

UNION

ADAPTER - straight, Includes: Ref. 18

3шт.

18

P7046042

SEAL

O-RING - adapter, not shown

1шт.

19

P937293

TEE

- brake release, Serial Range: tubes-valve

1шт.

20

P4620367

SHIN

CLAMP - drive motor tubes, inner

4шт.

20a

P4620366

SHIN

CLAMP - drive motor tubes, outer

4шт.

21

P833802

SCREW

BOLT - hex, 10 mm x 50 mm

8шт.

22

P3333034

SCREW

BOLT - hex, 10 mm x 75 mm

4шт.

23

P4328796

WASHER

SPACER - bolt, 7 mm thick

12шт.

24

P2434525

NUT

- cage type, 10 mm

4шт.
