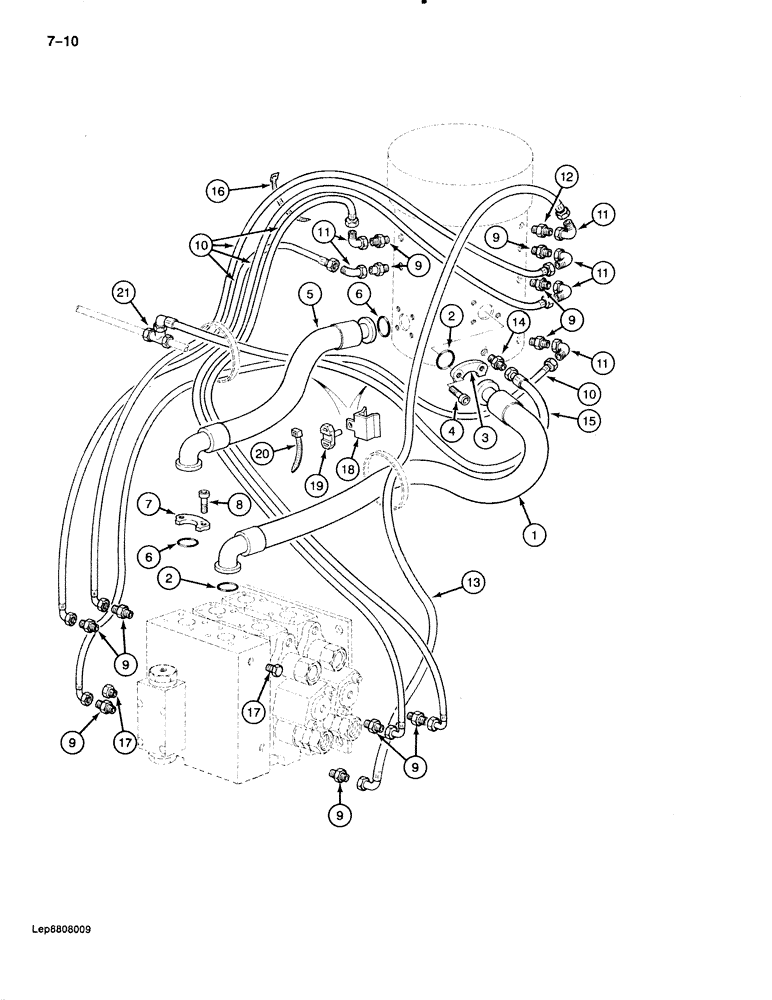

Запчасти Case 888 (7-010) - PRESSURE AND RETURN LINE, TO DRIVE CONTROL VALVE, P.I.N. FROM 74213 TO 74418, 15201 TO 15262 (07) - BRAKES

1

P5431934

HOSE

- 31-1/2" long, pressure, to center block of drive control valve

1шт.

2

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- hose flange

2шт.

3

P4024267

SHIN

SPLIT FLANGE - hose

4шт.

4

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

8шт.

5

P5431941

HOSE

- 31-1/2" long, Serial Range: return-swivel

1шт.

6

P330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

- hose flange

2шт.

7

P4024272

BRACKET

SPLIT FLANGE - hose

4шт.

8

P732911

SCREW

BOLT - hex socket, 12 mm x 30 mm, grade 10.9

8шт.

9

P3237530

UNION

ADAPTER - straight

11шт.

P7046042

SEAL

- adapter, not shown

1шт.

10

P5431942

HOSE

- 49-3/16" long, pilot, swivel to brake release valve

5шт.

11

P1737018

ANGLE

ELBOW - 90 degree

6шт.

12

P3743308

VALVE POPPET

ADAPTER - power sensing, Serial Range: hose-swivel

1шт.

P7046042

SEAL

- adapter, not shown

1шт.

13

P5431940

HOSE

- 49-3/16" long, pressure sensing

1шт.

14

P3237532

UNION

ADAPTER - straight

1шт.

P220418

O-RING - adapter

1шт.

15

P5431958

HOSE

- 35-1/2" long, leak return

1шт.

16

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

17

P2537447

PLUG

- valve

3шт.

P706042

SEAL - plug, not shown

1шт.

18

P2036903

CLASP

CLIP - retainer, 5/16" - 1/2" range

1шт.

19

PP2036939

CLASP

RETAINER - tie strap

1шт.

20

P51946

CLAMP

TIE STRAP - hose, 10-1/8" long

1шт.

21

REF

INSTRUCTION

TEE - from brake leak return tubes, see figure 7-16

1шт.
