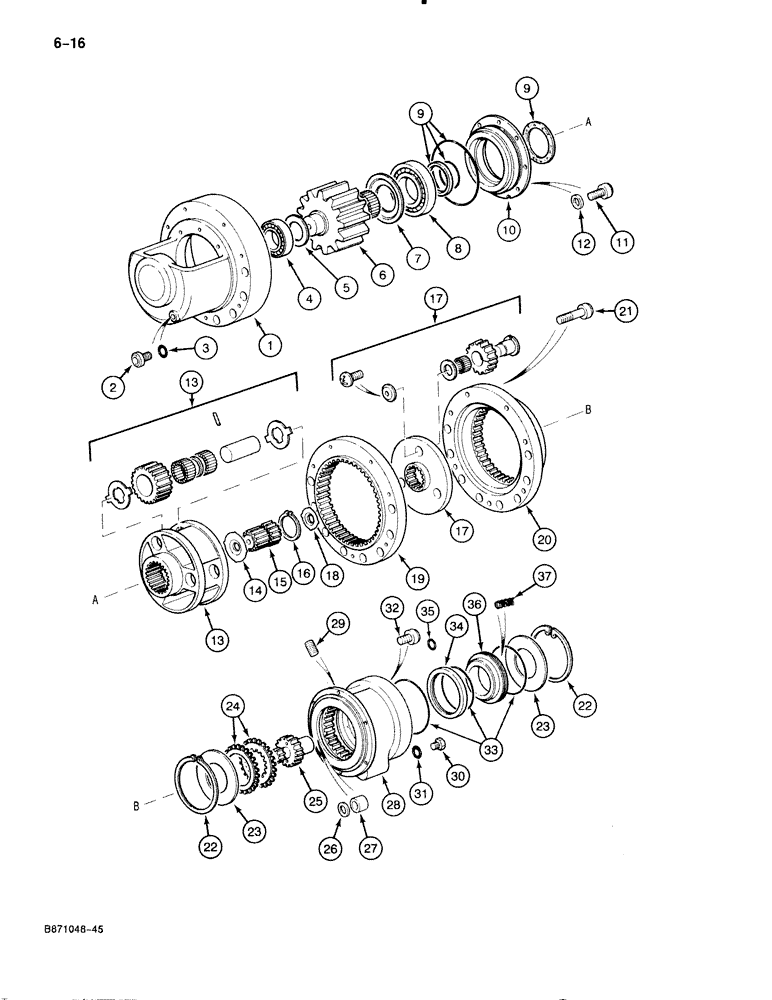

Запчасти Case 888 (6-016) - SWING TRANSMISSION (06) - POWER TRAIN

P2348543

REDUCER

SWING TRANSMISSION ASSEMBLY - excavator, Includes: Ref. 1 - 37

1шт.

1

P5140325

HOUSING

- swing gear

1шт.

2

P1337431

PLUG

- gear housing

1шт.

3

P1245266

WASHER, SEALING

SEAL - plug

1шт.

4

P1139850

BEARING

BALL BEARING - swing gear shaft, lower

1шт.

5

P3841471

PROTECTOR

SEAL - lower bearing

1шт.

6

P4339310

PINION

SWING GEAR AND SHAFT - transmission

1шт.

7

P3841472

PROTECTOR

SEAL - upper bearing

1шт.

8

P539813

BEARING

BALL BEARING - swing ger shaft, upper

1шт.

9

P7946290

SPARE PART SET

KIT - seal repair

1шт.

10

P150218

FLANGE

HOUSING - bearing

1шт.

11

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

8шт.

12

P1946313

WASHER

- flat, 10 mm

8шт.

P4339363

PINION CARRIER

CARRIER ASSEMBLY - planetary, second stage, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - planetary, second stage

1шт.

14

P1846381

STOP

THRUST WASHER - pinion gear, large

1шт.

15

P4339352

PINION

- gear

1шт.

16

P936348

RING, SNAP

SNAP RING - pinion retaining

1шт.

P4339362

PINION CARRIER

CARRIER ASSEMBLY - planetary, first stage, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

CARRIER ASSEMBLY - planetary, first stage

1шт.

18

P1846382

STOP

THRUST WASHER - pinion gear, small

1шт.

19

P4339351

SLEWING RING

RING GEAR - carrier, second stage

1шт.

20

P4339353

SLEWING RING

RING GEAR - carrier, second stage

1шт.

21

P32946

SCREW

BOLT - hex socket, 12 mm x 60 mm

7шт.

22

P36262

RING, SNAP

SNAP RING - brake housing

2шт.

23

P1846383

WASHER

- brake housing

2шт.

24

P7946291

SPARE PART SET

KIT - disc, swing brake

1шт.

25

P4339311

PINION

- gear, swing brake

1шт.

26

P1946314

WASHER

SHIM - 2 mm thick

1шт.

27

P7946293

PLATE, THRUST

BUSHING - pinion

1шт.

28

P5140326

HOUSING

- brake

1шт.

29

P3237476

PLUG

- housing

1шт.

30

P3237475

PLUG

AND DIPSTICK - brake housing

1шт.

31

P1245267

WASHER, SEALING

SEAL - plug and dipstick

1шт.

32

P732909

SCREW

BOLT - hex socket, 8 mm x 25 mm, grade 10.9

6шт.

33

P7946292

SPARE PART SET

KIT - seal repair, brake housing

1шт.

34

P2728889

BUSHING

BUSING - brake housing

1шт.

35

P1230429

O-RING

- brake housing

2шт.

36

P3628807

PISTON

- brake

1шт.

37

P1038213

SPRING

- brake piston

1шт.
