Запчасти Case 888 (6-012) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

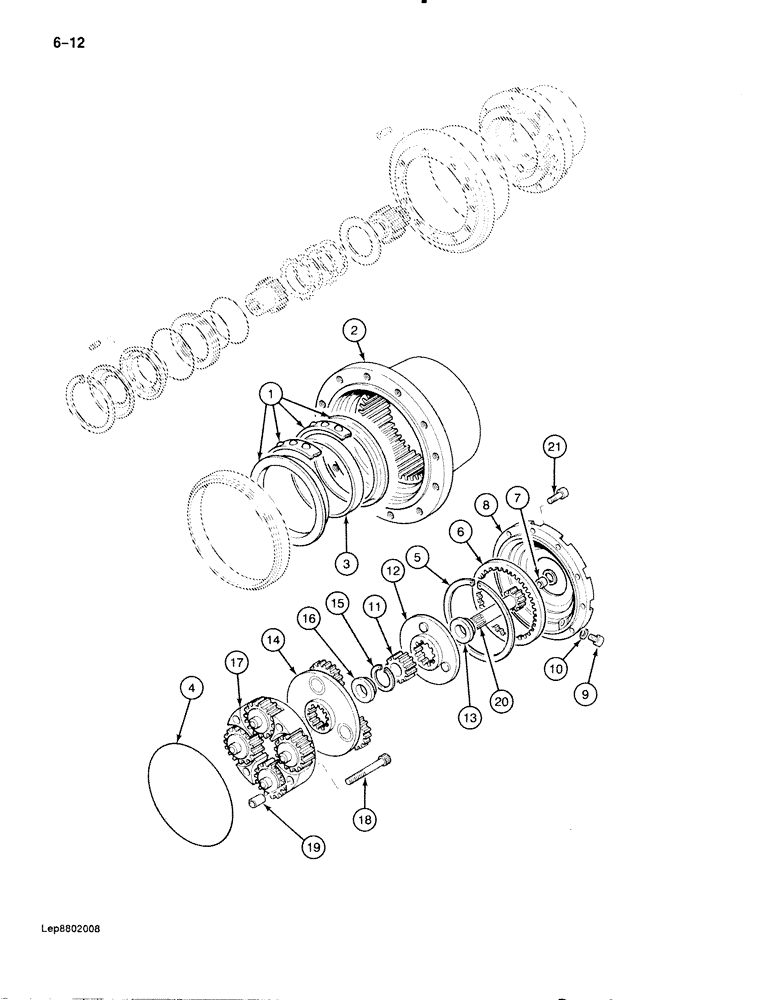

Схема запчастей Case 888 - (6-012) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

K2648551

REDUCER

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, Includes: Ref. 1 - 21

2шт.

P2039837

HOUSING

HUB ASSEMBLY - transmission, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HUB - transmission

1шт.

2

NSS

NOT SOLD SEPARAT

BALL BEARING - hub bearing

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - bearing, inner

1шт.

P5140368

COVER

- planetary, Includes: Ref. 4 - 10

1шт.

4

P130423

O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro

-, Serial Range: cover-hub

1шт.

5

P936350

RING

SNAP RING - ring gear

1шт.

6

P4339355

SLEWING RING

RING GEAR - planetary

1шт.

7

P5428749

HOLE PLUG BUTTON

BUSHING - planetary cover

1шт.

8

NSS

NOT SOLD SEPARAT

COVER - planetary, used with "C" letter identification

1шт.

9

P2537486

PLUG

- planetary cover

2шт.

10

P545208

WASHER, SEALING

SEAL - plug

1шт.

11

P4339356

GEAR

SUN GEAR - planetary

1шт.

P4339383

PINION CARRIER

THIRD STAGE CARRIER - planetary, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

STAGE CARRIER - planetary

1шт.

13

P6027869

STOP

THRUST WASHER

1шт.

P4339384

PINION CARRIER

SECOND STAGE CARRIER - planetary, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

STAGE CARRIER - planetary

1шт.

15

P936349

RING

SNAP RING - sun gear

1шт.

16

P3628809

RING

THUST WASHER

1шт.

P4339385

PINION CARRIER

FIRST STAGE CARRIER - planetary, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

STAGE CARRIER - planetary

1шт.

18

P3533017

SCREW

BOLT - hex socket, 16 mm x 100 mm, grade 10.9, use Loctite 242 when assembly

1шт.

19

P2229376

BUSHING

SPACER - bolt

4шт.

20

P4339357

GEAR

PINION SHAFT - transmission

1шт.

21

P1532917

BOLT

- hex socket, 10 mm x 25 mm, grade 12.9, use Loctite 242 when assembly

10шт.

Выбрано товаров: 27
