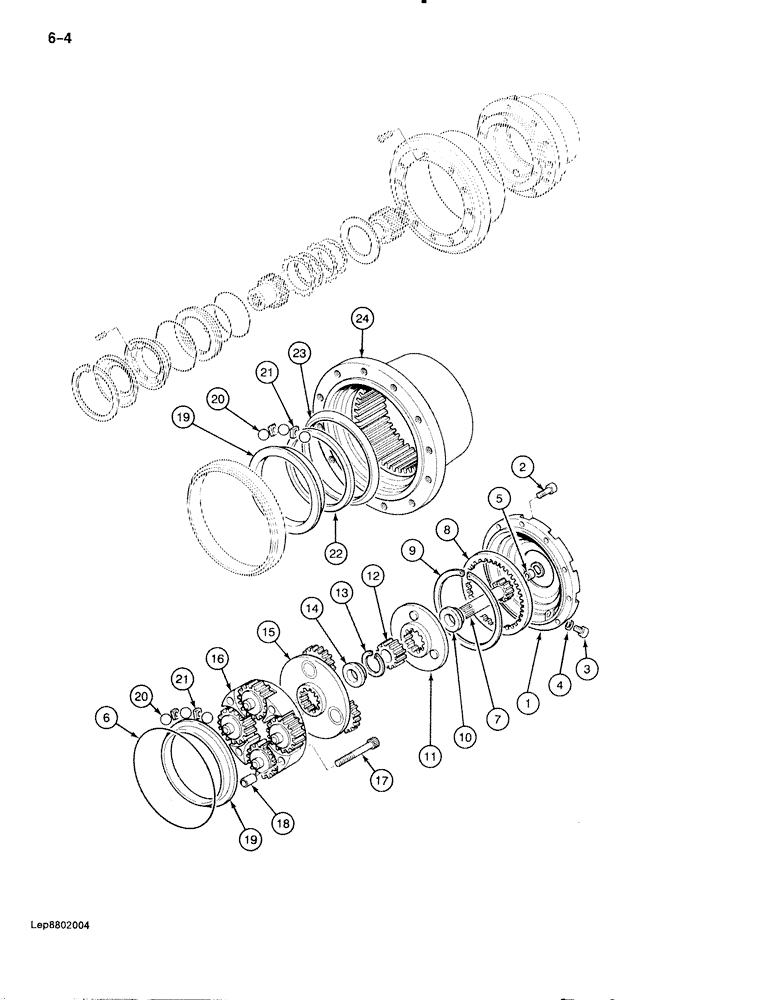

Запчасти Case 888 (6-004) - FINAL DRIVE TRANSMISSION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
K2648551
REDUCER
FINAL DRIVE TRANSMISSION ASSEMBLY - excavator, Includes: Ref. 1 - 24
2шт.
Check plate on end cover for letter "A", "B", or "C" following transmission part number
1шт.
1
P5140328
COVER
- planetary, used with "A" letter identification (Order, P5140329)
1шт.
2
P15332917
BOLT - hex head socket, 10 mm x 25 mm, grade 12.9, use Loctite 242 when assembly
10шт.
3
P2537486
PLUG
- planetary cover
2шт.
4
P545208
WASHER, SEALING
SEAL - plug (Replaces P545217)
1шт.
5
P5428749
HOLE PLUG BUTTON
BUSHING - planetary cover
1шт.
6
P130423
O-RING,0.139" Thk x 9.484" ID, -272, Cl 5, 75 Duro
-, Serial Range: cover-hug
1шт.
7
P4339357
GEAR
PINION SHAFT - transmission
1шт.
8
P4339355
SLEWING RING
RING GEAR - planetary
1шт.
9
P936350
RING
SNAP RING - ring gear
1шт.
P4339383
PINION CARRIER
THIRD STAGE CARRIER - planetary, Includes: Ref. 10 - 12
1шт.
10
P6027869
STOP
SPACER - third stage carrier
1шт.
11
NSS
NOT SOLD SEPARAT
STAGE CARRIER - planetary
1шт.
12
P4339356
GEAR
SUN GEAR - planetary
1шт.
Should not be indented as it is not part of the P4339383 third stage carrier.
1шт.
P4339384
PINION CARRIER
SECOND STAGE CARRIER - planetary, Includes: Ref. 13 - 15
1шт.
13
P936349
RING
SNAP RING - sun gear
1шт.
14
P3628809
RING
SPACER - second stage carrier
1шт.
15
NSS
NOT SOLD SEPARAT
STAGE CARRIER - planetary
1шт.
P4339385
PINION CARRIER
FIRST STAGE CARRIER - planetary, Includes: Ref. 16 and 17
1шт.
16
NSS
NOT SOLD SEPARAT
STAGE CARRIER - planetary
1шт.
17
P3533017
SCREW
BOLT - hex socket, 16 mm x 100 mm, grade 10.9, use Loctite 242 when assembly
4шт.
18
P2229376
BUSHING
SPACER - bolt
4шт.
19
P3628808
RING
RACE - hub bearing
2шт.
20
P31041
BALL
- steel, hub bearing
48шт.
21
P1245269
SPACER
- ball, hub bearing
48шт.
22
P2828592
SPACER
- bearing race, inner
1шт.
23
P1245268
SPACER
- bearing race, outer
1шт.
24
P5140327
HOUSING
HUB - transmission
1шт.
Выбрано товаров: 30
