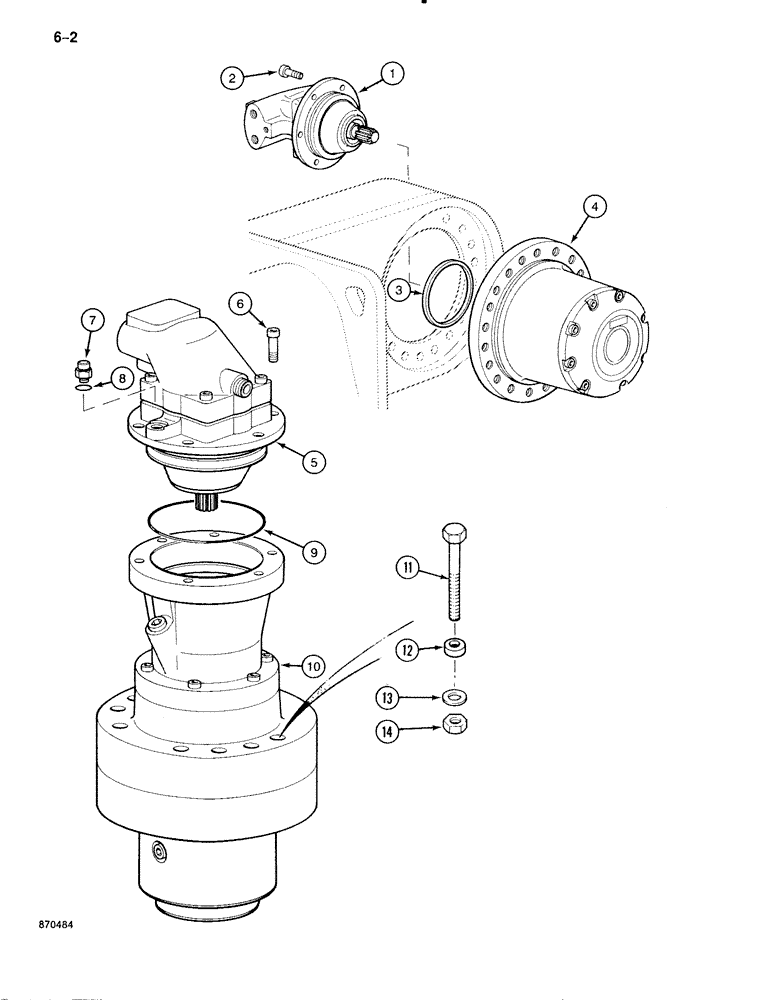

Запчасти Case 888 (6-002) - HYDRAULIC MOTOR TO FINAL DRIVE AND SWING TRANSMISSIONS (06) - POWER TRAIN

1

REF

INSTRUCTION

HYDRAULIC MOTOR ASSEMBLY - track drive, see figure 7-46

2шт.

2

P532988

SCREW

BOLT - hex socket, 10 x mm x 25 mm, grade 10.9

12шт.

3

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

- drive, Serial Range: motor-transmission

2шт.

4

REF

INSTRUCTION

FINAL DRIVE TRANSMISSION ASSEMBLY - excavator see figures, Serial Range: 6-4-6-14

2шт.

5

REF

INSTRUCTION

HYDRAULIC MOTOR ASSEMBLY - swing, see figure 8-88

1шт.

6

P532988

SCREW

BOLT - hex socket, 10 mm x 25 mm, grade 10.9

6шт.

7

P4043386

VALVE POPPET

BREATHER - swing motor, Includes: Ref. 8

1шт.

8

P7046042

SEAL

- breather

1шт.

9

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

- swing, Serial Range: motor-transmission

1шт.

10

REF

INSTRUCTION

SWING TRANSMISSION ASSEMBLY - excavator, see figure 6-16

1шт.

11

P1633867

SCREW

BOLT - hex socket, 20 mm x 180 mm, grade 10.9

8шт.

12

P4328747

WASHER

SPACER - bolt, 14 mm thick

8шт.

Ref #12 - Replaced by P5428789 Washer

1шт.

13

P5428789

WASHER

SPACER - bolt, 7 mm thick (Replaces P4628732)

8шт.

14

P134106

NUT

- hex, 20 mm

8шт.
