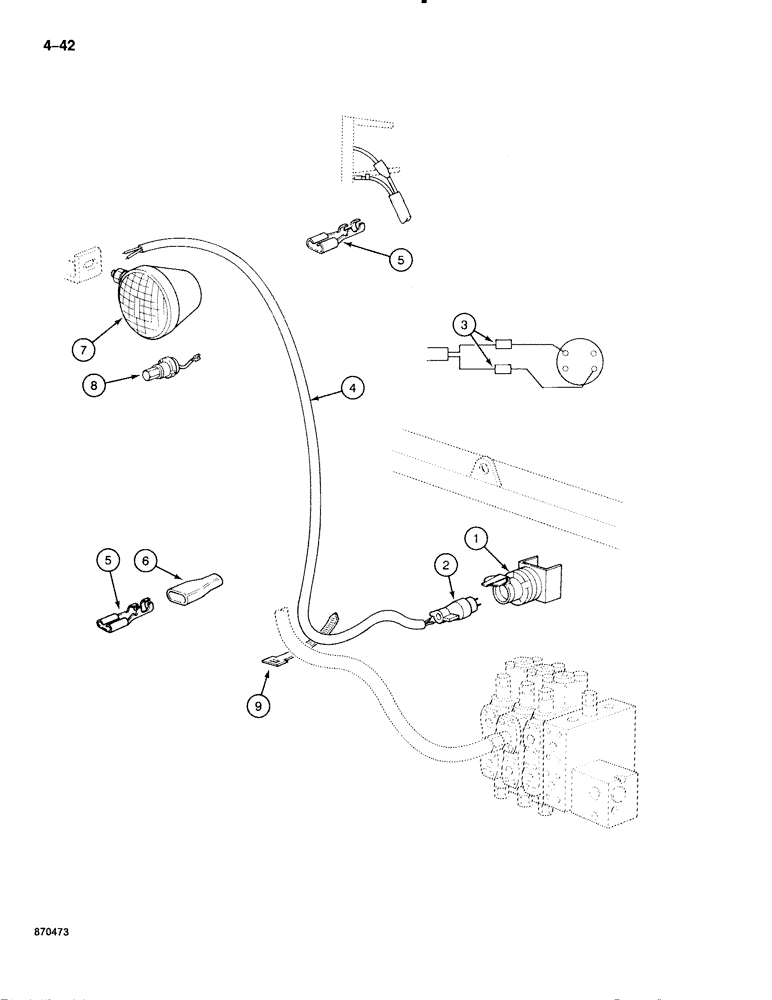

Запчасти Case 888 (4-042) - BOOM CYLINDER LAMP ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

SOCKET - harness plug, boom lamp (See figure 4-34)

1шт.

2

P40741

CONNECTOR,ELECTRIC

PLUG - boom lamp harness

1шт.

3

P40935

END FITTING

TERMINAL - male, Serial Range: plug-harness

2шт.

4

REF

INSTRUCTION

HARNESS - boom lamp, 126" long, cut from P4565

1шт.

5

P40940

TERMINAL

CLIP - harness

2шт.

6

P41471

LIGHT FAIRING

COVER - wire clip

1шт.

7

P841727

HEADLIGHT

LAMP - boom cylinder

1шт.

8

P340501

LAMP

BULB - lamp

1шт.

9

P51946

CLAMP

TIE STRAP - harness, 10-1/8" long

1шт.
