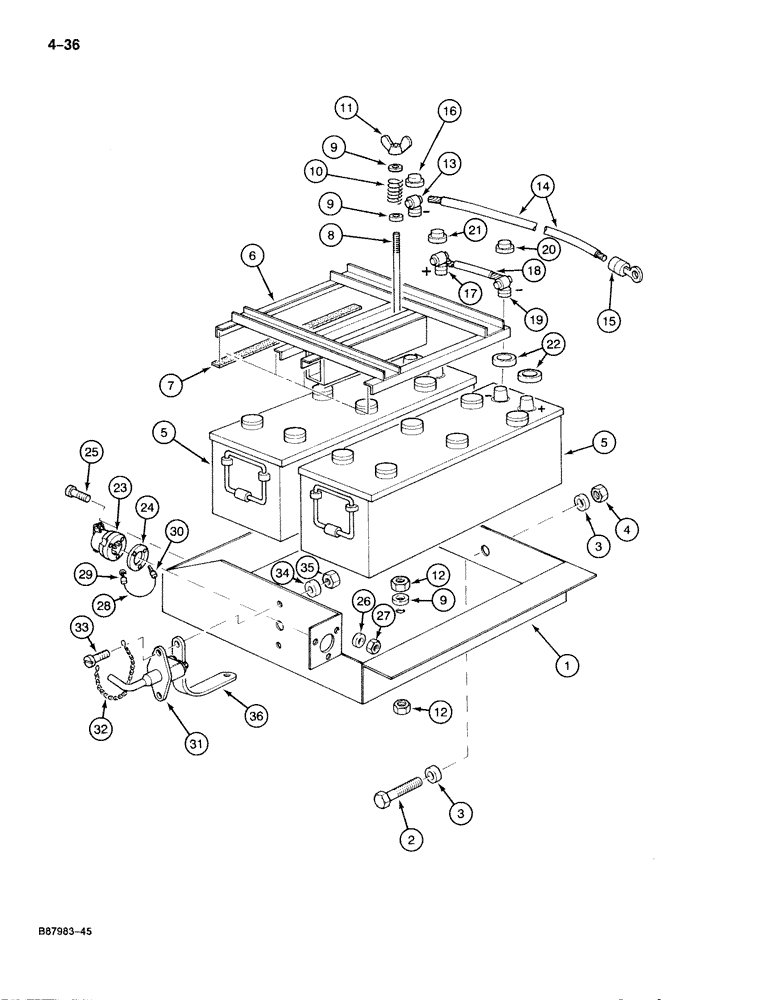

Запчасти Case 888 (4-036) - BATTERIES, BATTERY MOUNTING, AND CABLES (04) - ELECTRICAL SYSTEMS

1

P3126358

HOOD

BOX - battery

1шт.

2

P933839

SCREW

BOLT - hex, 10 mm x 35 mm

3шт.

3

P4328796

WASHER

SPACER - bolt, 7 mm thick

6шт.

4

P34598

SAFETY NUT

NUT - hex, self-locking, 10 mm

3шт.

5

P1941801

BATTERY

- engine electrical, 12 volt

2шт.

6

P6528226

SHIN

RETAINER - battery, Includes: Ref. 7

1шт.

7

REF

INSTRUCTION

PROTECTOR - battery edge, rubber, 14" long, cut from P403144, use 93578 cement to, Serial Range: attach-retainer

4шт.

8

P2527751

TRUSS ROD

TIE ROD - battery retainer

2шт.

9

P4328796

WASHER

SPACER - bolt, 7 mm thick

6шт.

10

P38165

COMPRESSION SPRING

SPRING - battery retainer

2шт.

11

P34410

THUMB SCREW

WING NUT - tie rod

2шт.

12

100016

NUT,M10 x 1.5, Cl 8

4шт.

P9247234

CABLE

ASSEMBLY - battery negative post to ground, Includes: Ref. 13 - 16

1шт.

13

P40919

TERMINAL CONNECTOR

TERMINAL - battery cable, negative

1шт.

14

REF

INSTRUCTION

CABLE - battery to ground, 37-3/8" long, cut from P104520

1шт.

15

P40934

TERMINAL CONNECTOR

TERMINAL - battery cable, at engine ground

1шт.

16

P2340451

DOOR COVER

CAP - terminal protector, black

1шт.

P1547292

CABLE

ASSEMBLY - jumper to battery, Includes: Ref. 17 - 20

1шт.

17

P40920

CLAMP

TERMINAL - battery cable, positive

1шт.

18

REF

INSTRUCTION

CABLE - jumper, battery to battery, 9-3/4" long, cut from P104520

1шт.

19

P40919

TERMINAL CONNECTOR

TERMINAL - battery cable, negative

1шт.

20

P2340451

DOOR COVER

CAP - terminal protector, black

1шт.

21

P2340452

DOOR COVER

CAP - terminal protector, red

1шт.

22

P2340487

HOLE PLUG BUTTON

WASHER - treated, corrosion protector

4шт.

23

P1340721

PEDESTAL

SOCKET - electrical (Replaces P40754)

1шт.

24

P7546095

SEAL

- socket to battery box

1шт.

25

P32550

SCREW

- slotted,. 6 mm x 30 mm

3шт.

26

P3528799

WASHER

SPACER - mounting screw, 4 mm thick

3шт.

27

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

P8547258

ELECTRICAL WIRE

WIRE ASSEMBLY - socket ground, Includes: Ref. 28 - 30

1шт.

28

REF

INSTRUCTION

WIRE - ground, 4" long, cut from P31253

1шт.

29

P40927

TERMINAL CONNECTOR

TERMINAL - wire end, 6 mm

1шт.

30

P40935

END FITTING

TERMINAL - wire end, male

1шт.

31

P641221

IGNITION SWITCH

SWITCH - electrical, master disconnect

1шт.

32

Q2631352

CHAIN (CE)

CHAIN - battery disconnect

1шт.

33

P32550

SCREW

- slotted, 6 mm x 30 mm

3шт.

34

P3528799

WASHER

SPACER - mounting screw, 4 mm thick

3шт.

35

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

3шт.

36

P41824

NEG BATTERY CABLE

STRAP - ground, battery disconnect switch

1шт.
