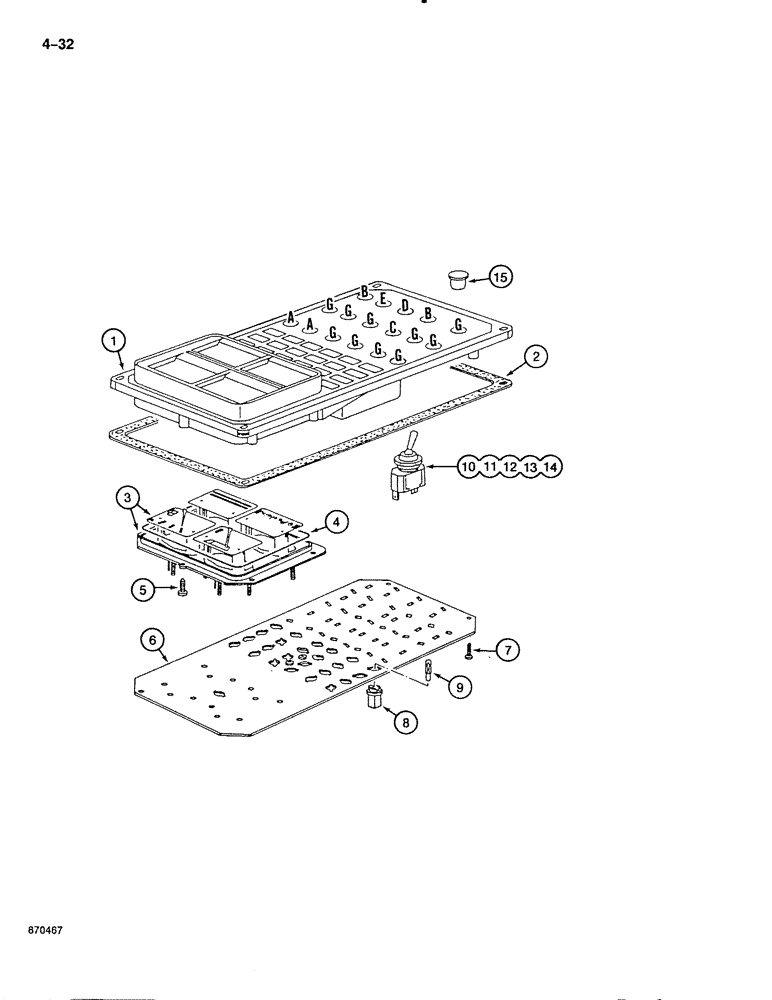

Запчасти Case 888 (4-032) - ELECTRICAL CONTROL PANEL (04) - ELECTRICAL SYSTEMS

P7043868

PANEL, INSTRUMENTS

PANEL ASSEMBLY - control, complete, Includes: Ref. 1 - 15

1шт.

Locking cover for this panel included in P1054922 anti theft kit which contains 5 different covers, P2047016, P2047017, P2047018, P2047019, P2047015. No identification on print as to what cover is what. Keys for cover is P/N P503650

1шт.

1

P2241076

FRAME

COVER - control

1шт.

2

P7546028

SEAL

GASKET - control panel, Serial Range: cover-console

1шт.

3

P2241077

BOTTOM

INSTRUMENT CLUSTER - control panel

1шт.

4

P7546029

SEAL

GASKET -, Serial Range: cluster-cover

1шт.

5

P2033026

SCREW

- printed circuit to panel and, Serial Range: cluster-cover

6шт.

6

P151685

BOARD, PRINTED CIRCU

PRINTED CIRCUIT - control panel

1шт.

7

P2033026

SCREW

- printed circuit to panel and, Serial Range: cluster-cover

2шт.

8

P1941442

SUPPORT

SOCKET - control panel lamp

11шт.

9

P40506

LAMP

BULB - control panel lamp

11шт.

10

P641619

IGNITION SWITCH

SWITCH - toggle, control panel, "A" location

2шт.

11

P641611

SWITCH

- toggle, control panel, "B" location

2шт.

12

P641609

SWITCH

- toggle, control panel, "C" location

1шт.

13

P1541680

IGNITION SWITCH

SWITCH - toggle, control panel, "D" location

1шт.

14

P2741622

SWITCH

- toggle, control panel, "E" location

1шт.

15

P1540469

BLANK-OFF PLUG

PLUG - control panel, "G" location

10шт.
