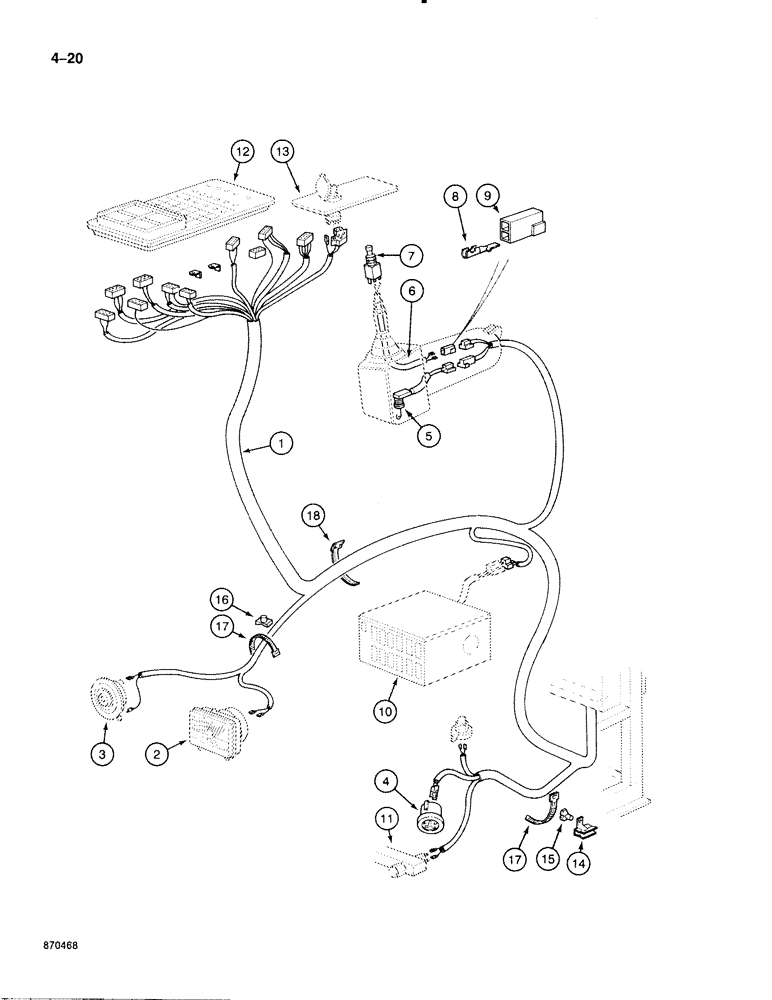

Запчасти Case 888 (4-020) - CAB ELECTRICAL HARNESS (04) - ELECTRICAL SYSTEMS

1

P9547249

HARNESS

- main, instrument panel, see figure 4-16 or 4-18 for connections to electrical panel

1шт.

2

REF

INSTRUCTION

LAMP - front, work, see page 4-35 for parts

1шт.

3

REF

INSTRUCTION

HORN - at turntable, see figure 4-34 for parts

1шт.

4

REF

INSTRUCTION

HOURMETER - electric, see figure 4-34 for parts

1шт.

5

P2141699

DETECTOR

SAFETY SWITCH AND HARNESS - at hand control console

1шт.

SOLENOID NEAR #5 ON DRAWING IS SHOWN ON FIGURE 8-86 #21. P/N P3743364

1шт.

P2141681

REVERSER

BUTTON AND SWITCH ASSEMBLY - horn control (Replaces P2142681), Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

HARNESS - horn control

1шт.

7

P1541665

SWITCH

- horn control

1шт.

8

P40938

CONNECTION

CLIP - wire retainer

2шт.

9

P740848

CASE

CONNECTOR - female, 2-way

1шт.

10

REF

INSTRUCTION

HEATER ASSEMBLY - cab, see figure 4-26 or 4-28 for parts

1шт.

11

REF

INSTRUCTION

SWITCH - at manifold block, see figure 8-94 for circuit

1шт.

12

REF

INSTRUCTION

CONTROL PANEL ASSEMBLY - electrical, see figure 4-32

1шт.

13

REF

INSTRUCTION

KEY SWITCH AND PANEL - electrical, see figure 4-30

1шт.

14

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

11шт.

15

PP2036939

CLASP

RETAINER - tie strap

11шт.

16

P3036926

BASE

RETAINER - harness strap

10шт.

17

9336923

TIE STRAP - harness, 4-5/8"

10шт.

18

P51946

CLAMP

TIE STRAP - harness, 10-1/8" long

16шт.
