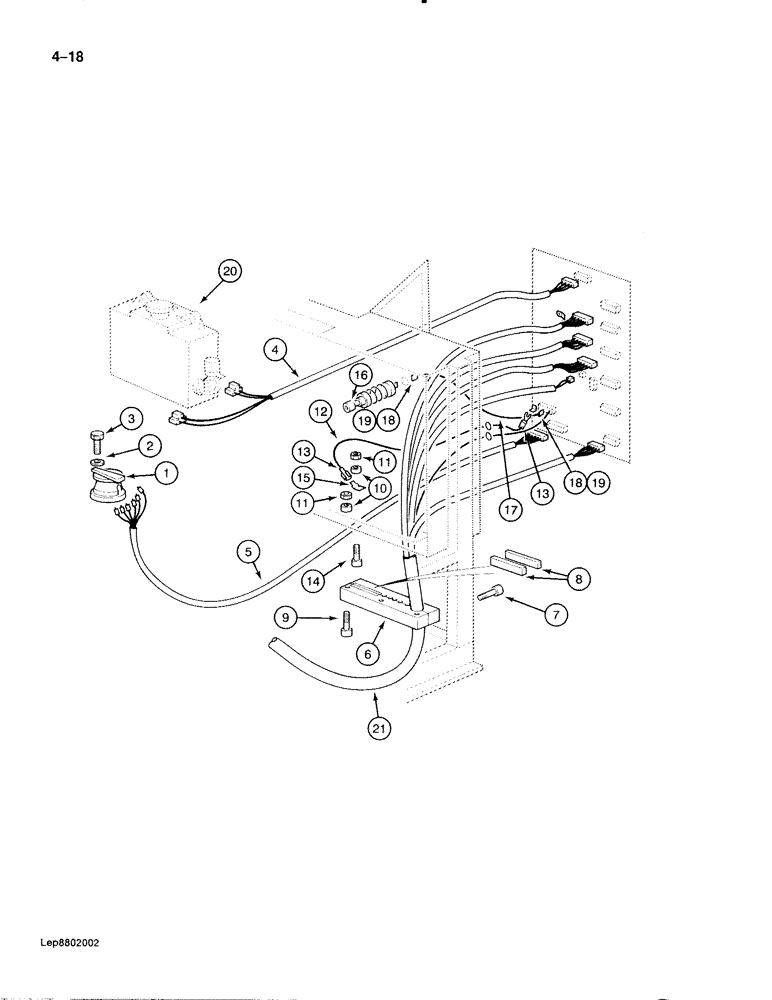

Запчасти Case 888 (4-018) - INSTRUMENT PANEL ELECTRICAL HARNESS, P.I.N. FROM 74231, 74233, 74234, 74241 AND AFTER (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

SOCKET - cab harness See figure 4-34

1шт.

2

P3528799

WASHER

SPACER - bolt, 4 mm thick

3шт.

3

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

3шт.

4

P8647289

HARNESS

- to windshield washer motor

1шт.

5

P8647290

CABLE

HARNESS - to cab harness socket

1шт.

6

P8346231

SHIN

CLAMP ASSEMBLY - harness to panel, Includes: Ref. 7 and 8

1шт.

7

P433846

SCREW

BOLT - hex, 6 mm x 50 mm

2шт.

8

REF

INSTRUCTION

PROTECTOR - clamp, rubber, 3/8" long, cut from P3127

2шт.

9

P833887

SCREW

BOLT - hex, 5 mm x 40 mm

3шт.

10

P4328718

WASHER

SPACER - screw, 3 mm thick

4шт.

11

P34108

NUT

- hex, 5 mm

4шт.

P9247238

ELECTRICAL WIRE

WIRE ASSEMBLY - ground to panel, Includes: Ref. 12 and 13

1шт.

12

REF

INSTRUCTION

WIRE - ground, 7-7/8" long, cut from P104506

1шт.

13

P40949

CLIP,ELECTRICAL

CLIP - wire, female

2шт.

14

P32538

SCREW

BOLT - hex, 5 mm x 16 mm

1шт.

15

P640965

CONNECTION

CLIP - wire, male

1шт.

16

REF

INSTRUCTION

CIGARETTE LIGHTER - electric See figure 4-34

1шт.

P9247241

ELECTRICAL WIRE

WIRE ASSEMBLY - to cigarette lighter, Includes: Ref. 17 - 19

1шт.

17

REF

INSTRUCTION

WIRE - cigarette lighter, 19-3/4" long, cut from P31254

1шт.

18

P2036955

CLIP,ELECTRICAL

CLIP - wire, female

2шт.

19

P1540485

LIGHT FAIRING

COVER - wire clip

2шт.

20

REF

INSTRUCTION

WINDSHIELD WASHER ASSEMBLY - see figure 4-24

1шт.

21

REF

INSTRUCTION

HARNESS - main, instrument panel, see figure 4-20 for, Serial Range: connections-cab

1шт.
