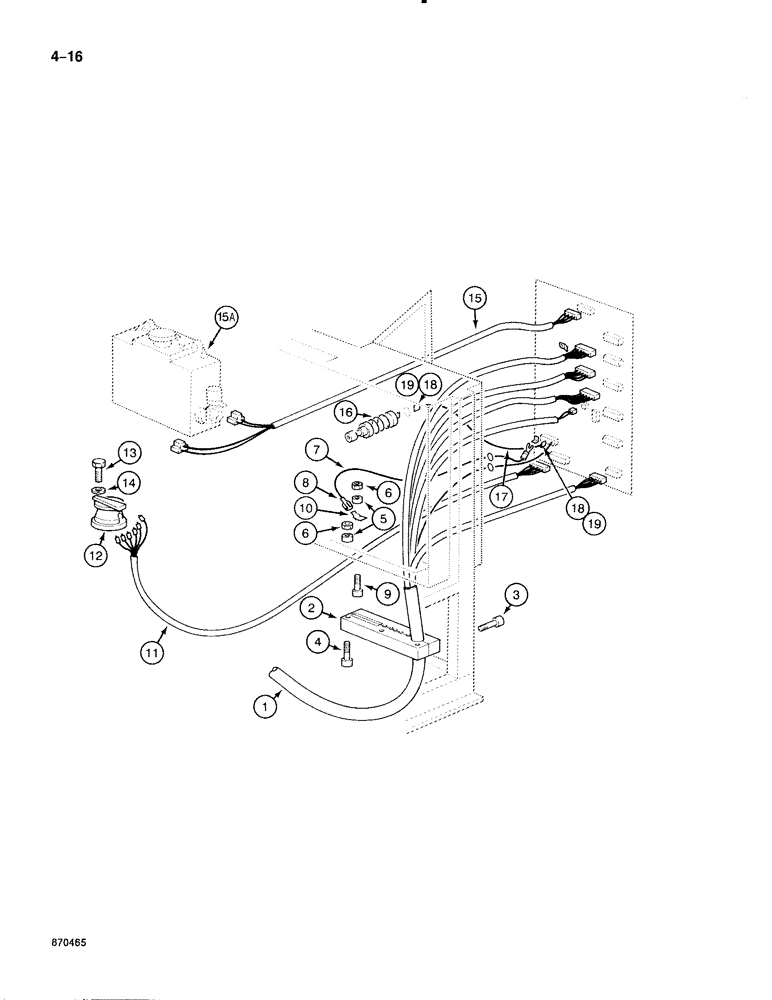

Запчасти Case 888 (4-016) - INSTRUMENT PANEL ELECTRICAL HARNESS, P.I.N. FROM 74163 TO 74230, 74232, 74235 TO 74240 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - main, instrument panel, see figure 4-20 for, Serial Range: connections-cab

1шт.

2

P6546258

SHIN

CLAMP ASSEMBLY - harness to panel, Includes: Ref. 3

1шт.

3

P833828

SCREW

BOLT - hex, 5 mm x 50 mm

2шт.

4

P833887

SCREW

BOLT - hex, 5 mm x 40 mm

3шт.

5

P4328718

WASHER

SPACER - screw, 3 mm thick

3шт.

6

P34108

NUT

- hex, 5 mm

3шт.

P9247238

ELECTRICAL WIRE

WIRE ASSEMBLY -, Includes: Ref. 7 and 8

1шт.

7

REF

INSTRUCTION

WIRE - ground, 7-7/8" long, cut from P104506

1шт.

8

P40949

CLIP,ELECTRICAL

CLIP - wire, female

2шт.

9

P32538

SCREW

BOLT - hex, 5 mm x 16 mm

1шт.

10

P640965

CONNECTION

CLIP - wire, male

1шт.

11

P8647290

CABLE

HARNESS - to cab harness socket

1шт.

12

REF

INSTRUCTION

SOCKET - cab harness (See figure 4-34)

1шт.

13

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

Hex, M6 x 25, 8.8, Full Thd

3шт.

14

P3528799

WASHER

SPACER - bolt, 4 mm thick

3шт.

15

P8647289

HARNESS

- to windshield washer motor

1шт.

15a

REF

INSTRUCTION

WINDSHIELD WASHER ASSEMBLY - see figure 4-24

1шт.

16

REF

INSTRUCTION

CIGARETTE LIGHTER - electric See figure 4-34

1шт.

P9247241

ELECTRICAL WIRE

WIRE ASSEMBLY - to cigarette lighter, Includes: Ref. 17 - 19

1шт.

17

REF

INSTRUCTION

WIRE - cigarette lighter, 19-3/4" long, cut from P31254

1шт.

18

P2036955

CLIP,ELECTRICAL

CLIP - wire, female

2шт.

19

P1540485

LIGHT FAIRING

COVER - wire clip

2шт.
