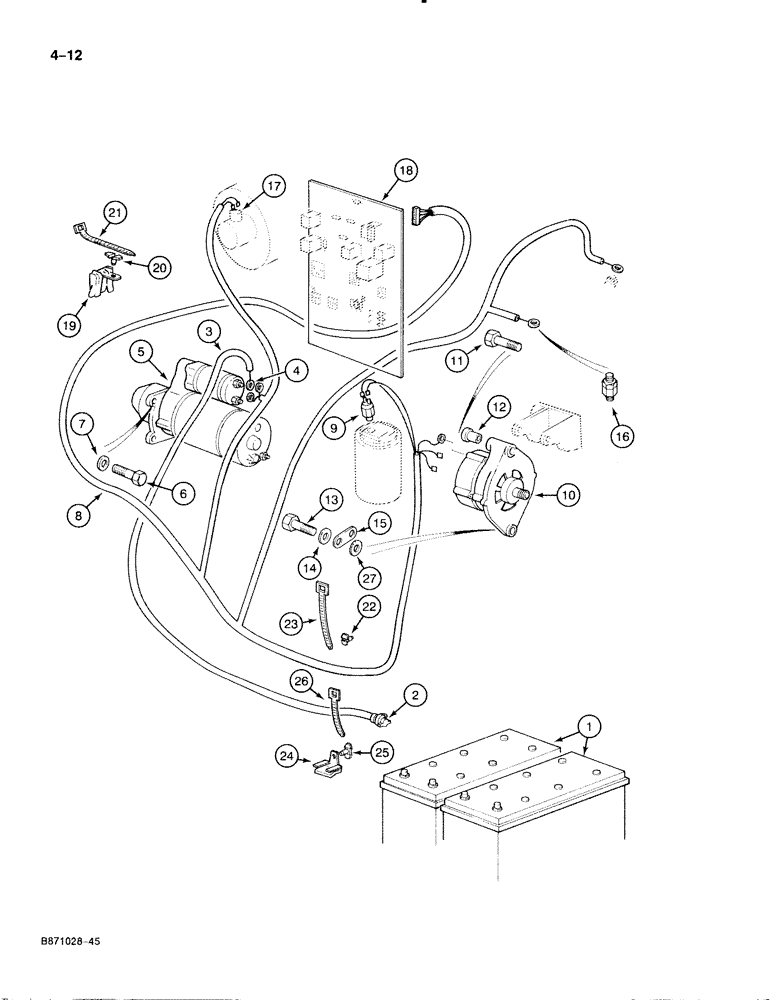

Запчасти Case 888 (4-012) - ENGINE ELECTRICAL SYSTEM (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

BATTERY - electrical system, see figure 4-36 for batteries, cables and mounting parts

2шт.

P247228

CABLE ASSEMBLY - positive battery terminal to starter, Includes: Ref. 2 - 4

1шт.

2

P40920

CLAMP

TERMINAL - battery cable, positive

1шт.

3

REF

INSTRUCTION

CABLE - battery to starter, 103-1/8" long, cut from P104520

1шт.

4

P40934

TERMINAL CONNECTOR

TERMINAL - battery cable, at starter solenoid

1шт.

5

REF

INSTRUCTION

STARTER - engine electrical parts list see figure 4-4

1шт.

6

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

7

P34611

WASHER

SPACER - flat 10 mm

3шт.

8

P9847223

HARNESS

ASSEMBLY - engine wiring

1шт.

Harness P9847223 and P9847274 are the same, the only difference is the vendors.

1шт.

8

P9847274

HARNESS

ASSEMBLY - engine wiring

1шт.

Harness P9847223 and P9847274 are the same, the only difference is the vendors.

1шт.

9

P1241879

ELECTRO/HYD CONTACT

SENDER - engine oil pressure

1шт.

10

REF

INSTRUCTION

ALTERNATOR - engine electrical, parts list see figure 4-2

1шт.

11

P33824

SCREW

BOLT - hex, 10 mm x 100 mm

1шт.

12

P2728884

BUSHING

- alternator mounting bolt

1шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

BOLT, Hex, M8 x 25, 8.8

2шт.

14

P35002

WASHER

- lock, 8 mm

2шт.

15

P4424124

SUPPORT

BRACKET - alternator mounting

1шт.

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

hardened, flat, used on alternator mounts to lower the bolt between the engine and the brace

1шт.

16

P3743277

GAUGE

SENDER - engine temperature, (Replaces P41547)

1шт.

17

REF

INSTRUCTION

SENDER - air cleaner filter element indicator, see figure 2-4 for air cleaner and mounting parts

1шт.

18

REF

INSTRUCTION

CIRCUIT BOARD - electrical, see figure 4-38 for component parts

1шт.

19

P2036902

CLASP

CLIP - retainer, 1/8" - 1/4" range

1шт.

20

PP2036939

CLASP

RETAINER - tie strap

1шт.

21

P336923

CLAMP

TIE STRAP - harness, 10-1/8" long

1шт.

22

P3036926

BASE

RETAINER - harness strap

1шт.

23

P336923

CLAMP

TIE STRAP - harness, 10-1/8" long

1шт.

24

P2036903

CLASP

CLIP - retainer, 8 mm - 13 mm range

1шт.

25

P2036939

CLASP

RETAINER - tie strap

1шт.

26

P336923

CLAMP

TIE STRAP - harness, 10-1/8" long

1шт.

27

P3145329

WASHER

SHIM - alternator

1шт.
