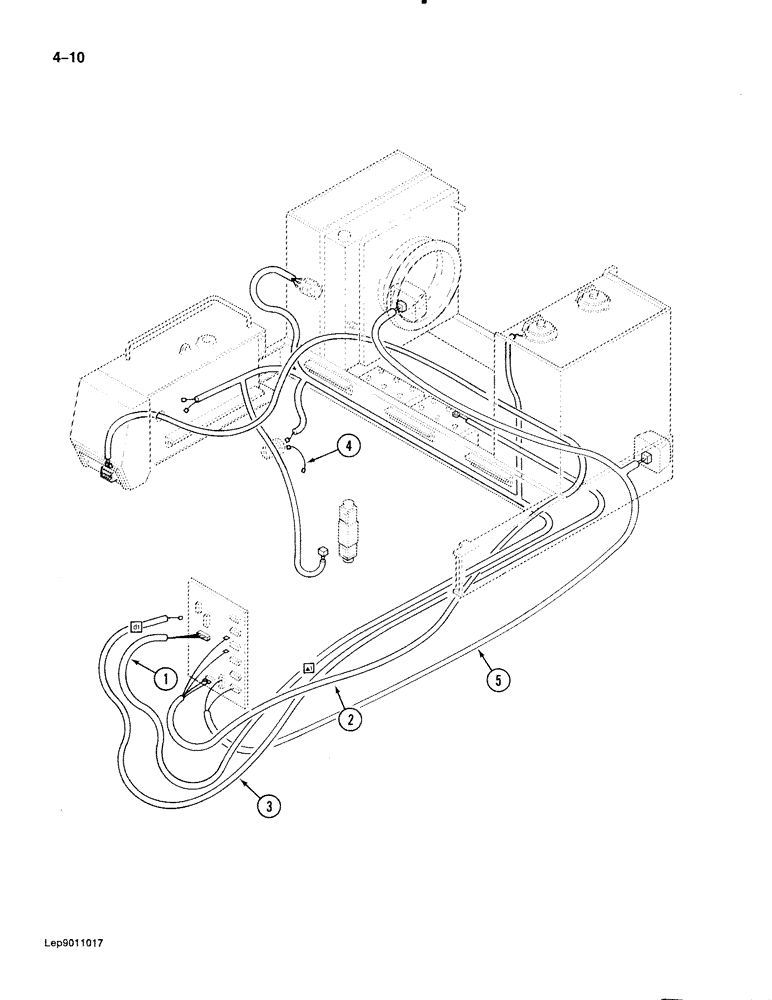

Запчасти Case 888 (4-010) - TURNTABLE ELECTRICAL HARNESS, P.I.N. FROM 15201 AND AFTER (04) - ELECTRICAL SYSTEMS

1

P9547274

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve

1шт.

Serviced according to SPS and/or Supplier availability, order either of the two references.

1шт.

2

P9247251

CABLE

HARNESS - circuit board to front work lamp

1шт.

3

P9847213

CABLE

HARNESS ASSEMBLY - electrical at circuit board

1шт.

4

P8547258

ELECTRICAL WIRE

WIRE ASSEMBLY - socket ground

1шт.

5

P352250

HARNESS

- circuit board to rear light

1шт.

Serviced according to SPS and/or Supplier availability, order either of the two references.

1шт.

5

P352251

HARNESS

- circuit board to rear light

1шт.

Serviced according to SPS and/or Supplier availability, order either of the two references.

1шт.
