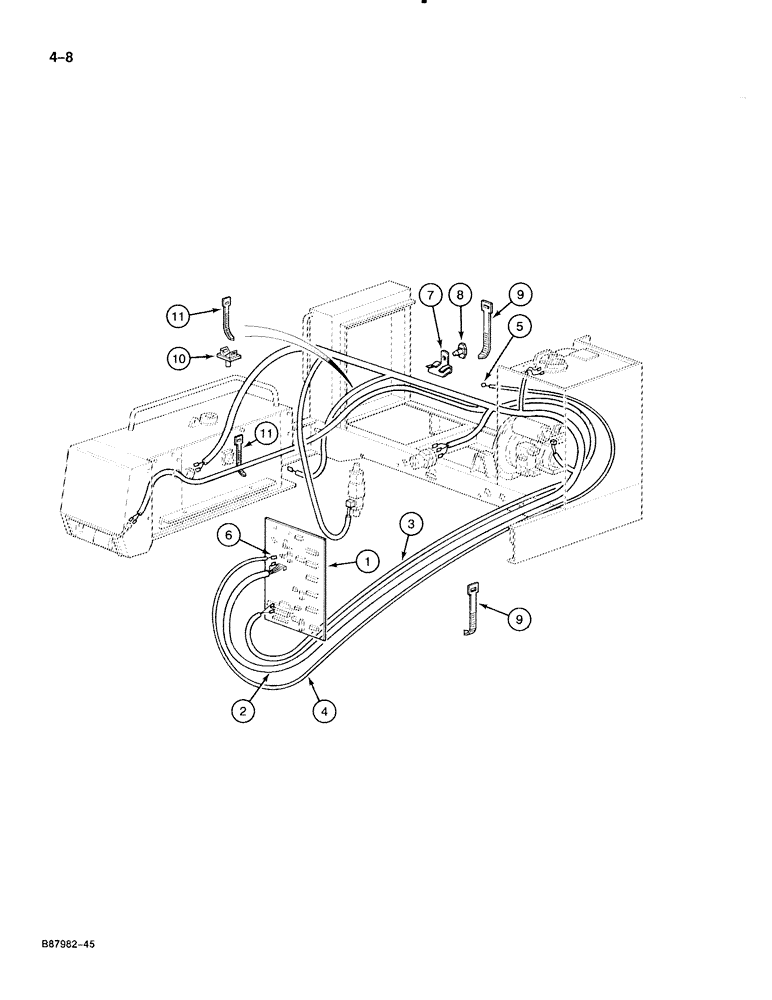

Запчасти Case 888 (4-008) - ALTERNATOR ASSEMBLY, 6T-590 DIESEL ENGINE, P.I.N. FROM 74163 TO 74418 (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

CIRCUIT BOARD - electrical system, see figure 4-38)

1шт.

2

P9547274

HARNESS

- turntable, main, to senders, electrical sockets and solenoid valve

1шт.

3

P9247251

CABLE

HARNESS - circuit board to front work lamp

1шт.

P9847213

CABLE

HARNESS ASSEMBLY - electrical, at circuit board, Includes: Ref. 4 - 6

1шт.

4

REF

INSTRUCTION

HARNESS - electrical, 208-5/8 inch long, cut from P104512

1шт.

5

P40953

TERMINAL CONNECTOR

TERMINAL - harness end, 8 mm

1шт.

6

P40949

CLIP,ELECTRICAL

CLIP - harness end, female

1шт.

7

P2036902

CLASP

CLIP - retainer, 3 mm - 7 mm range

1шт.

8

P2036939

CLASP

RETAINER - tie strap

1шт.

9

P51946

CLAMP

TIE STRAP - harness, 10-1/8 inch long

1шт.

10

P3036926

BASE

RETAINER - harness strap

1шт.

11

P336923

CLAMP

TIE STRAP - harness, 4-5/8 inch long

1шт.
