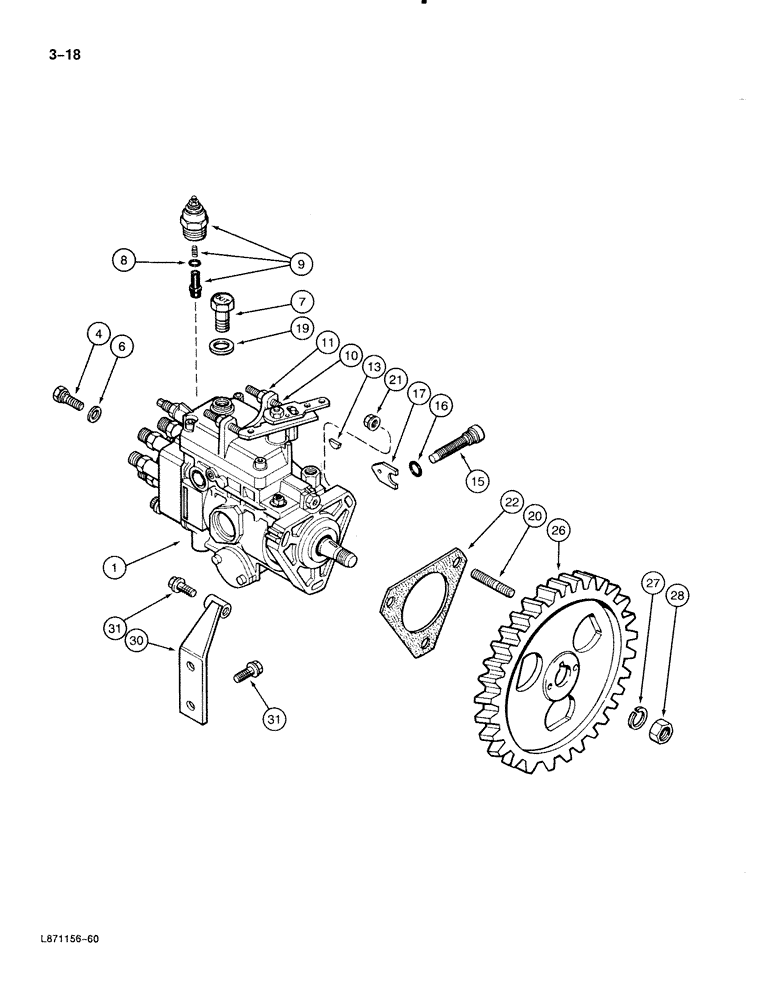

Запчасти Case 888 (3-018) - FUEL INJECTION PUMP AND DRIVE, 6T-590 DIESEL ENGINE (03) - FUEL SYSTEM

1

J912561

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new (Robert Bosch VE6/12F1000RV15238), Includes: Ref. 4 - 19

1шт.

JR912561

PUMP

PUMP ASSEMBLY - fuel injection, remanufactured (North America only)

1шт.

JC912561

PUMP

RETURN NUMBER - injection pump (Use this number to return pump core for credit)

1шт.

JR929658

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

JC929658

CORE-INJECTION PUMP

Return Part Number

1шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

SCREW - vent

1шт.

6

J903573

GASKET

GASKET - vent screw

1шт.

7

J905465

BANJO BOLT

SCREW - overflow

1шт.

8

J903577

SEAL

SEAL - solenoid

1шт.

9

J903576

SOLENOID

SOLENOID ASSEMBLY - shut down, 24 volt

1шт.

10

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

SCREW - low idle stop

1шт.

11

J904783

NUT

NUT - idle screw

1шт.

13

J902332

KEY

KEY - pump gear retainer

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

SCREW - timing lock

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

O-RING - timing lock screw

1шт.

17

J904786

PLATE

PLATE - timing lock

1шт.

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

GASKET - delivery valve

6шт.

19

NSS

NOT SOLD SEPARAT

WASHER - overflow screw

1шт.

20

J902501

STUD

STUD - pump mounting, 8 mm x 48 mm

3шт.

21

J900589

NUT

NUT - hex flange, 8 mm

3шт.

22

J905685

GASKET

GASKET - pump mounting

1шт.

26

J912885

PINION

GEAR - pump drive (Replaces J911331)

1шт.

27

92-9

BEARING WASHER,9/16"

LOCK WASHER, 9/16"

1шт.

28

J903738

NUT

NUT - hex 14 mm x 1.5

1шт.

30

J905313

LEVER

BRACE - fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, M8 x 1.25 x 20 mm (Replaces J900630)

3шт.
