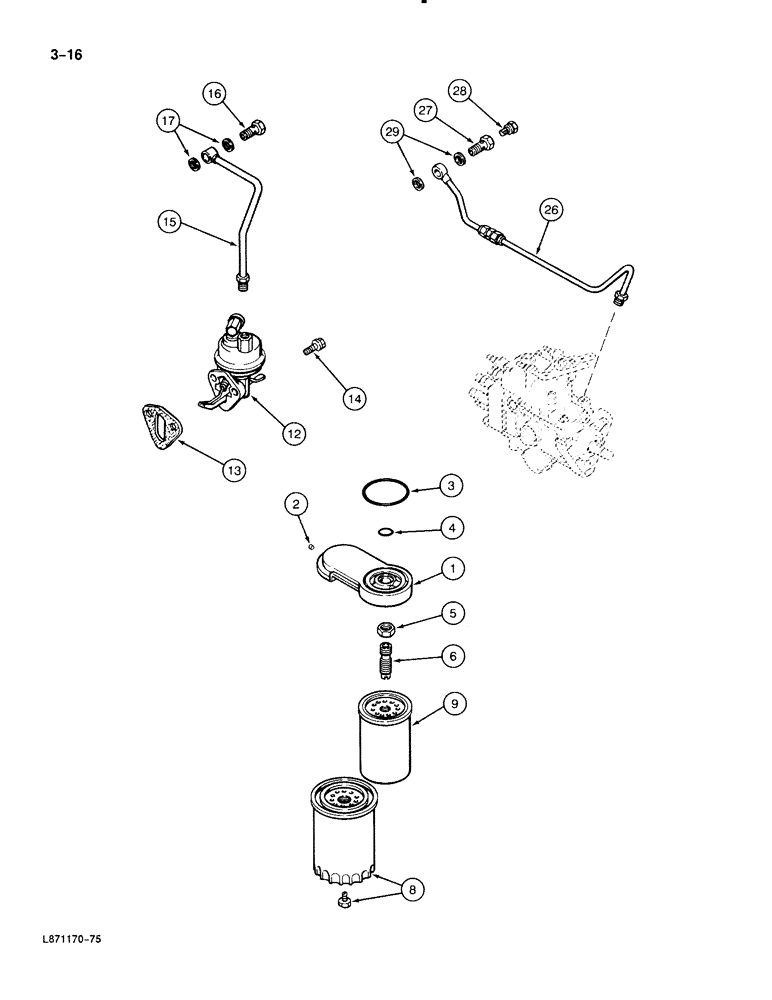

Запчасти Case 888 (3-016) - FUEL FILTER AND LIFT PUMP, 6T-590 DIESEL ENGINE (03) - FUEL SYSTEM

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter (Replaces J904362)

1шт.

2

A77432

PLUG

- expansion, 6.6 mm OD (If equipped - used with J904362)

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - fuel filter head, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - fuel filter stud, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm x 2 mm

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

8

J903410

FILTER

- fuel, primary

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

12

J904374

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J914304

GASKET

- fuel lift pump (Replaces J904044)

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- hex flange, 8 - 1.25 x 25 mm

2шт.

15

J907582

FUEL TUBE,8 mm OD x 250.6 mm L

TUBE ASSEMBLY - fuel supply

1шт.

16

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

17

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

26

J912783

FUEL TUBE,363.9, 84 mm L

TUBE ASSEMBLY - fuel supply (Replaces J908986)

1шт.

J905860

BANJO BOLT

BOLT - banjo hex, special, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special (Order J905860)

1шт.

28

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent (Order J905860)

1шт.

29

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.
